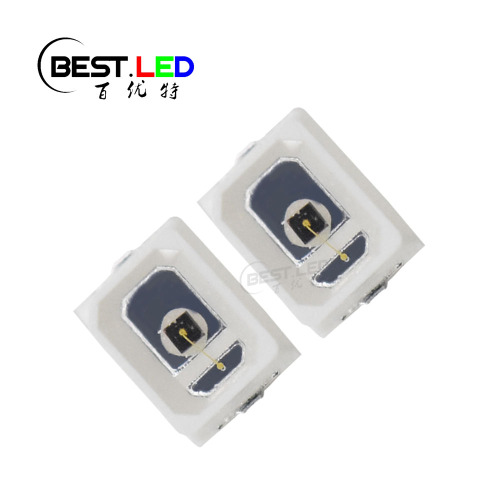

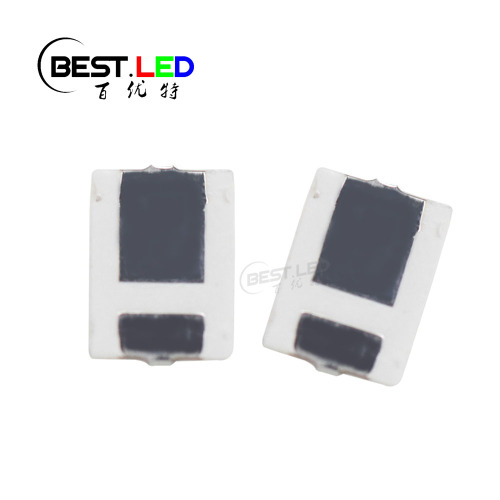

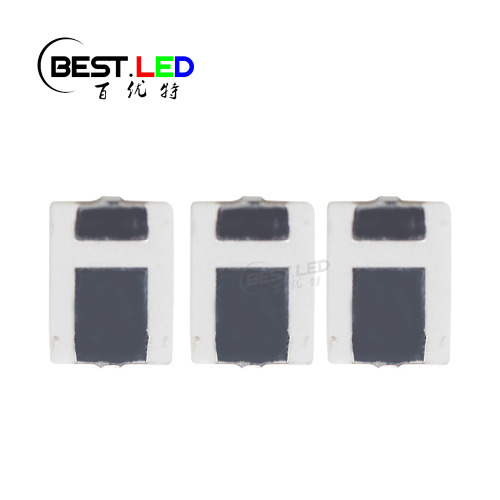

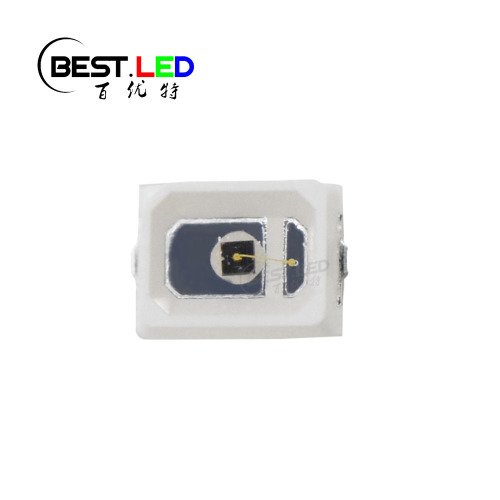

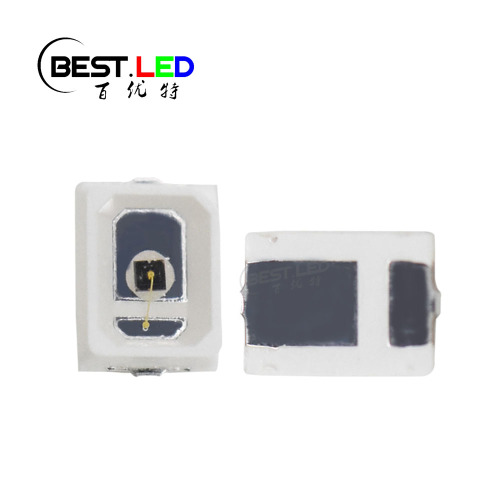

IR LED 750nm LED 2016 SMD Chip

Get Latest Price

Min. Order:: 4000 Piece/Pieces

Min. Order:: 4000 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	30000000/Month
Supply Ability:	30000000/Month
Payment Type:	T/T,Paypal,Others
Incoterm:	FCA,FOB,CIF,EXW
Certificate:	ISO:9001
HS Code:	8541100000
Transportation:	Ocean,Land,Air,Express
Port:	SHENZHEN

Product Description

The wavelength of an LED determines its color. In the case of a 750nm wavelength, the LED emits light in the near-infrared range, which is not visible to the human eye normally. But when we produce it with a LED Lamps or SMD LED such as 2016 SMD LED, there will have a dim red color light in the middle of LED during its working. On the other hand, 750nm wavelength it can be detected by some cameras and sensors. SMD LEDs with a 750nm wavelength can be used in various applications, such as: In Security cameras: They can be used as IR illuminators to provide night vision capabilities. In Medical devices: They can be used in non-invasive procedures, such as pulse oximetry, which measures the oxygen saturation in the blood. In Industrial automation: They can be used in sensors to detect objects or measure distances.

Electrical Parameters:

Parameter	Symbol	Min	Type	Max	Unit	Test Condition
Forward Voltage	VF	1.5	-	1.7	V	IF=100mA
Radiated Power	PO	-	15	-	mw/sr	IF=100mA
Dominant Wavelength	λp	750			nm	IF=100mA
Half Width	λ△		25		nm	IF=100mA
Viewing Half Angle	θ1/2		120		deg	IF=100mA
Reverse Current	IR			5	uA	VR=5V
