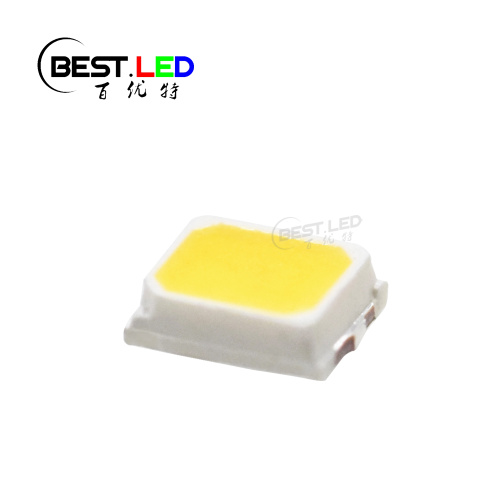

Ra90 LED 2016 SMD 0.2W White 3500-4000K
  • Ra90 LED 2016 SMD 0.2W White 3500-4000K
  • Ra90 LED 2016 SMD 0.2W White 3500-4000K
  • Ra90 LED 2016 SMD 0.2W White 3500-4000K
  • Ra90 LED 2016 SMD 0.2W White 3500-4000K
  • Ra90 LED 2016 SMD 0.2W White 3500-4000K
Ra90 LED 2016 SMD 0.2W White 3500-4000K
Ra90 LED 2016 SMD 0.2W White 3500-4000K
Ra90 LED 2016 SMD 0.2W White 3500-4000K
Ra90 LED 2016 SMD 0.2W White 3500-4000K
Ra90 LED 2016 SMD 0.2W White 3500-4000K

Ra90 LED 2016 SMD 0.2W White 3500-4000K

Min. Order:
4000 Piece/Pieces
Min. Order:
4000 Piece/Pieces
Transportation:
Ocean, Land, Air, Express, Others
Port:
SHENZHEN
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 30000000
Supply Ability: 30000000/Month
Payment Type: T/T,Paypal,W/U
Incoterm: FOB
Certificate: ISO:9001
HS Code: 8541410000
Transportation: Ocean,Land,Air,Express,Others
Port: SHENZHEN
Product Description
Product Description

Is 4000K warm or cool?

SMD 4000K White LED are neither warm LED nor cool white LED but neutral white LED. Warm white LED means those white LED that have color temperature under 3500K and cool white LED means those white SMD LED or white through-hole LED above 6000K. Then those in middle, such as 4000K, 5000K White LED, they are all neutral white LED because compare with other color, they got the middle tone color, which is not yellow-ish or blue-ish. If you looking for some neutral white LED for your project. Just feel free to contact us for more detail about it.

2016WW35K26L4W Ra90 high CRI LED 2016 SMD 0.2W White 3500-4000K



Electrical Parameters:

Parameter

Symbol

Min

Type

Max

Unit

Test Condition

Forward Voltage

VF

2.8

-

3.2

V

IF=60mA

Luminous Flux

IV

24

-

28

lm

IF=60mA

Color temperature

CCT

3500                    4000

 K

IF=60mA

Viewing Half Angle

 2θ1/2


120



deg

IF=60mA

Reverse Current

IR



5

uA

VR=5V

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.


White 2016 SMD LED Demension;

Size of 2016WW35K26L4W Ra90 high CRI LED 2016 SMD 0.2W White 3500-4000K

*UV LED, Red SMD LED, Yellow LED, Blue SMD LED are all available in this 2016 SMD LED size.*


Product Details:

99.99% purity gold wire;

Silver plated LED frame;

Famous branded chips;

High quality epoxy;
