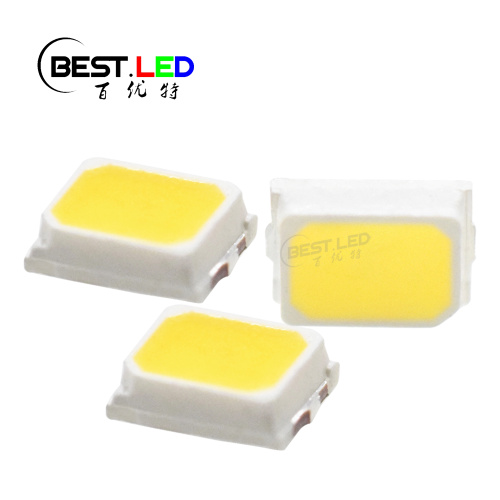

High CRI LED 2016 SMD 0.5W White 3200-3500K
  • High CRI LED 2016 SMD 0.5W White 3200-3500K
  • High CRI LED 2016 SMD 0.5W White 3200-3500K
  • High CRI LED 2016 SMD 0.5W White 3200-3500K
  • High CRI LED 2016 SMD 0.5W White 3200-3500K
  • High CRI LED 2016 SMD 0.5W White 3200-3500K
High CRI LED 2016 SMD 0.5W White 3200-3500K
High CRI LED 2016 SMD 0.5W White 3200-3500K
High CRI LED 2016 SMD 0.5W White 3200-3500K
High CRI LED 2016 SMD 0.5W White 3200-3500K
High CRI LED 2016 SMD 0.5W White 3200-3500K

High CRI LED 2016 SMD 0.5W White 3200-3500K

Min. Order:
4000 Piece/Pieces
Min. Order:
4000 Piece/Pieces
Transportation:
Ocean, Land, Air, Express, Others
Port:
SHENZHEN
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 30000000
Supply Ability: 30000000/Month
Payment Type: T/T,Paypal,W/U
Incoterm: FOB
Certificate: ISO:9001
HS Code: 8541410000
Transportation: Ocean,Land,Air,Express,Others
Port: SHENZHEN
Product Description
Product Description

What's the colour in 3300K light temperature?

Most people used to using the white SMD LED or white through-hole LED with color temperature under 3500K. And this 2016WW33K26L4W emits the white LED light in range of 3200K to 3500K color temperature. This warm white color are not yellow-ish as 2600K and it's color will more close to the sunrise color. 2600K will be more close to the color of amber LED. On the other hand, this SMD LED are also a high quality light source because of it's CRI value is Ra90. Which means the light of this white SMD LED will show the object vividly color as what it should be. 2016WW33K60L4W High CRI LED 2016 SMD 0.5W warm White 3200-3500K



Electrical Parameters:

Parameter

Symbol

Min

Type

Max

Unit

Test Condition

Forward Voltage

VF

2.8

-

3.2

V

IF=150mA

Luminous Flux

IV

50

-

60

lm

IF=150mA

Color temperature

CCT

3200                    3500

 K

IF=150mA

Viewing Half Angle

 2θ1/2


120



deg

IF=150mA

Reverse Current

IR



5

uA

VR=5V

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.


White 2016 SMD LED Demension;

size of 2016WW33K60L4W High CRI LED 2016 SMD 0.5W warm White 3200-3500K Ra90

*UV LED, Red SMD LED, Yellow LED, Blue SMD LED are all available in this 2016 SMD LED size.*


Product Details:

99.99% purity gold wire;

Silver plated LED frame;

Famous branded chips;

High quality epoxy;
