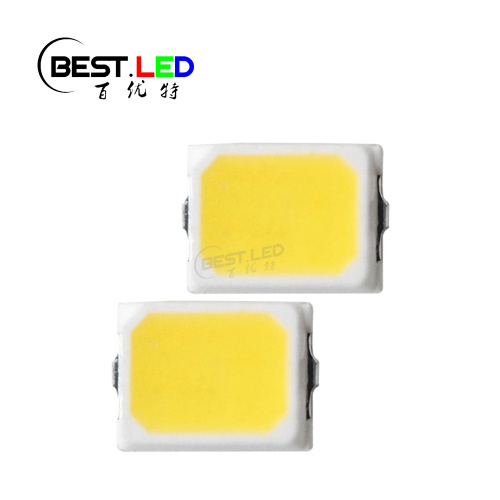

Super Bright 0.5W Warm White LED 2016 3200-3500K
  • Super Bright 0.5W Warm White LED 2016 3200-3500K
  • Super Bright 0.5W Warm White LED 2016 3200-3500K
  • Super Bright 0.5W Warm White LED 2016 3200-3500K
  • Super Bright 0.5W Warm White LED 2016 3200-3500K
  • Super Bright 0.5W Warm White LED 2016 3200-3500K
Super Bright 0.5W Warm White LED 2016 3200-3500K
Super Bright 0.5W Warm White LED 2016 3200-3500K
Super Bright 0.5W Warm White LED 2016 3200-3500K
Super Bright 0.5W Warm White LED 2016 3200-3500K
Super Bright 0.5W Warm White LED 2016 3200-3500K

Super Bright 0.5W Warm White LED 2016 3200-3500K

Min. Order:
4000 Piece/Pieces
Min. Order:
4000 Piece/Pieces
Transportation:
Ocean, Land, Air, Express, Others
Port:
SHENZHEN
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 30000000
Supply Ability: 30000000/Month
Payment Type: T/T,Paypal,W/U
Incoterm: FOB
Certificate: ISO:9001
HS Code: 8541410000
Transportation: Ocean,Land,Air,Express,Others
Port: SHENZHEN
Product Description
Product Description

What is 3500K light good for?

3500K LED is a warm white LED. But compare with 2600K warm white LED, 3500K color temperature will show a soft tone of warm color. Which make it popular in most of commercial building. Such as classrooms, wall lamps, common area ect. 2016WW33K60L3W is a SMD LED that emits color temperature in range of 3200-3500K. Which make it's a warm white SMD LED. Different with those small power of white led, it can working good in high current like 150mA and emits high brightness range on 55-65lm. If you need some small size of SMD LED that emits super bright color light souce for your project. This one will working good for you!

2016WW33K60L3W Super Bright 0.5W Warm White LED 2016 SMD 3200-3500K


Electrical Parameters:

Parameter

Symbol

Min

Type

Max

Unit

Test Condition

Forward Voltage

VF

2.8

-

3.2

V

IF=150mA

Luminous Flux

IV

55

-

65

lm

IF=150mA

Color temperature

CCT

3200                   3500

 K

IF=150mA

Viewing Half Angle

 2θ1/2


120



deg

IF=150mA

Reverse Current

IR



5

uA

VR=5V

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.


White 2016 SMD LED Demension;

Size of 2016WW33K60L3W Super Bright 0.5W Warm White LED 2016 SMD 3200-3500K

*UV LED, Red SMD LED, Yellow LED, Blue SMD LED are all available in this 2016 SMD LED size.*


Product Details:

99.99% purity gold wire;

Silver plated LED frame;

Famous branded chips;

High quality epoxy;
