Ra90 Warm White High CRI LED 2016 3200-3500K
  • Ra90 Warm White High CRI LED 2016 3200-3500K
  • Ra90 Warm White High CRI LED 2016 3200-3500K
  • Ra90 Warm White High CRI LED 2016 3200-3500K
  • Ra90 Warm White High CRI LED 2016 3200-3500K
  • Ra90 Warm White High CRI LED 2016 3200-3500K
Ra90 Warm White High CRI LED 2016 3200-3500K
Ra90 Warm White High CRI LED 2016 3200-3500K
Ra90 Warm White High CRI LED 2016 3200-3500K
Ra90 Warm White High CRI LED 2016 3200-3500K
Ra90 Warm White High CRI LED 2016 3200-3500K

Ra90 Warm White High CRI LED 2016 3200-3500K

Min. Order:
4000 Piece/Pieces
Min. Order:
4000 Piece/Pieces
Transportation:
Ocean, Land, Air, Express, Others
Port:
SHENZHEN
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 30000000
Supply Ability: 30000000/Month
Payment Type: T/T,Paypal,W/U
Incoterm: FOB
Certificate: ISO:9001
HS Code: 8541410000
Transportation: Ocean,Land,Air,Express,Others
Port: SHENZHEN
Product Description
Product Description

Is 3500K warm or cool?

Definitely warm. People name those white SMD LED or White through-hole LED with color temperature range from 2600K to 3500K as warm white light. In this 3500K, it's obviously within the range of warm white color. 2016WW33K26L4W are also a warm white LED that can handle 60mA and with high standard CRI Ra90. Which make it can emits the light that make people feel relax and comfortable. If you need some soft warm light for your project, then this one will be the best lighting source for that.

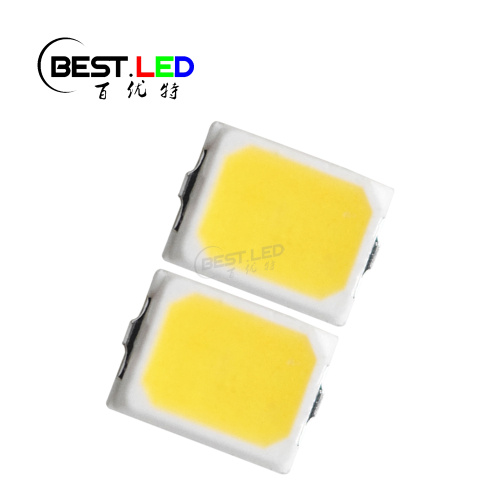

2016WW33K26L4W Super Ra90 Warm White LED  High CRI LED 2016 SMD 3200-3500K


Electrical Parameters:

Parameter

Symbol

Min

Type

Max

Unit

Test Condition

Forward Voltage

VF

2.8

-

3.2

V

IF=60mA

Luminous Flux

IV

24

-

28

lm

IF=60mA

Color temperature

CCT

3200                    3500

 K

IF=60mA

Viewing Half Angle

 2θ1/2


120



deg

IF=60mA

Reverse Current

IR



5

uA

VR=5V

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.


White 2016 SMD LED Demension;

Size of 2016WW33K26L4W Super Ra90 Warm White LED  High CRI LED 2016 SMD 3200-3500K

*UV LED, Red SMD LED, Yellow LED, Blue SMD LED are all available in this 2016 SMD LED size.*


Product Details:

99.99% purity gold wire;

Silver plated LED frame;

Famous branded chips;

High quality epoxy;
