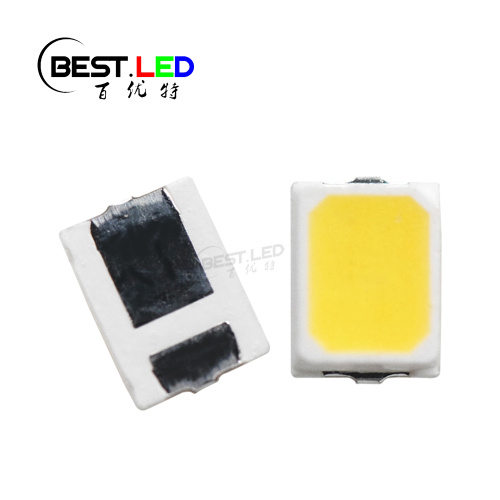

Warm White LED 2016 SMD 0.2W 3500K Light
  • Warm White LED 2016 SMD 0.2W 3500K Light
  • Warm White LED 2016 SMD 0.2W 3500K Light
  • Warm White LED 2016 SMD 0.2W 3500K Light
  • Warm White LED 2016 SMD 0.2W 3500K Light
  • Warm White LED 2016 SMD 0.2W 3500K Light
Warm White LED 2016 SMD 0.2W 3500K Light
Warm White LED 2016 SMD 0.2W 3500K Light
Warm White LED 2016 SMD 0.2W 3500K Light
Warm White LED 2016 SMD 0.2W 3500K Light
Warm White LED 2016 SMD 0.2W 3500K Light

Warm White LED 2016 SMD 0.2W 3500K Light

Min. Order:
4000 Piece/Pieces
Min. Order:
4000 Piece/Pieces
Transportation:
Ocean, Land, Air, Express, Others
Port:
SHENZHEN
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 30000000
Supply Ability: 30000000/Month
Payment Type: T/T,Paypal,W/U
Incoterm: FOB
Certificate: ISO:9001
HS Code: 8541410000
Transportation: Ocean,Land,Air,Express,Others
Port: SHENZHEN
Product Description
Product Description

Is a 3500K light warm?

Warm white LED have a range of 3200-3500K. Then 3500K light will still with the range of 3500K. Which means the 3500K light still be the warm white LED. 2016WW33K26L3W is a warm white SMD LED that emits warm white lighting color. The CRI level is Ra80, which is also a high standard lighting source and that will going to show the object clear and bright.

2016WW33K26L3W Warm White LED 2016 SMD 0.2W 3200-3500K Light


Electrical Parameters:

Parameter

Symbol

Min

Type

Max

Unit

Test Condition

Forward Voltage

VF

2.8

-

3.2

V

IF=60mA

Luminous Flux

IV

24

-

28

lm

IF=60mA

Color temperature

CCT

3200                    3500

 K

IF=60mA

Viewing Half Angle

 2θ1/2


120



deg

IF=60mA

Reverse Current

IR



5

uA

VR=5V

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.


White 2016 SMD LED Demension;

Size of 2016WW33K26L3W Warm White LED 2016 SMD 0.2W 3200-3500K Light 60mA

*UV LED, Red SMD LED, Yellow LED, Blue SMD LED are all available in this 2016 SMD LED size.*


Product Details:

99.99% purity gold wire;

Silver plated LED frame;

Famous branded chips;

High quality epoxy;
