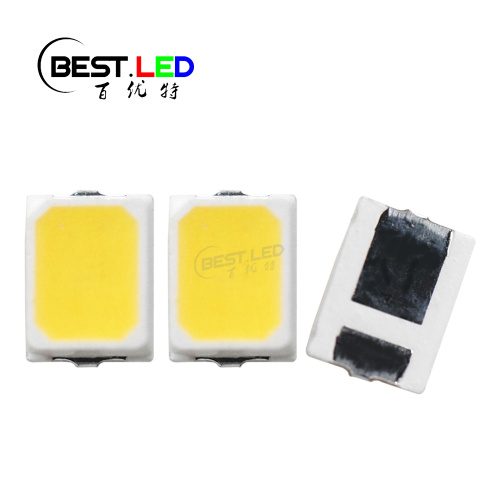

Bright 0.5W Warm White LED 2016 SMD 2900-3100K
  • Bright 0.5W Warm White LED 2016 SMD 2900-3100K
  • Bright 0.5W Warm White LED 2016 SMD 2900-3100K
  • Bright 0.5W Warm White LED 2016 SMD 2900-3100K
  • Bright 0.5W Warm White LED 2016 SMD 2900-3100K
  • Bright 0.5W Warm White LED 2016 SMD 2900-3100K
Bright 0.5W Warm White LED 2016 SMD 2900-3100K
Bright 0.5W Warm White LED 2016 SMD 2900-3100K
Bright 0.5W Warm White LED 2016 SMD 2900-3100K
Bright 0.5W Warm White LED 2016 SMD 2900-3100K
Bright 0.5W Warm White LED 2016 SMD 2900-3100K

Bright 0.5W Warm White LED 2016 SMD 2900-3100K

Min. Order:
4000 Piece/Pieces
Min. Order:
4000 Piece/Pieces
Transportation:
Ocean, Land, Air, Express, Others
Port:
SHENZHEN
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 30000000
Supply Ability: 30000000/Month
Payment Type: T/T,Paypal,W/U
Incoterm: FOB
Certificate: ISO:9001
HS Code: 8541410000
Transportation: Ocean,Land,Air,Express,Others
Port: SHENZHEN
Product Description
Product Description

Is 3000K too Yellow?

3000K LED is a warm white LED. Which will definitely emits the white light that includes yellow color. The warm white LED means the SMD LED that emits the color temperature in range of 2600K to 3500K. All the white color in this range will looks yellow-ish white. If you looking for some warm white LED for your project. Then 3000K will be just right for you. But if you looking for some cool white and bright white LED for your lighting project, Then 3000K color temperature will be too yellow to use. Cool white color will looks more blue-ish white. In this 2016WW30K60L3W, the SMD LED can handle 150mA high operation current and emits high brightness in 55-65lm.

2016WW30K60L3W Super Bright 0.5W Warm White LED 2016 SMD 2900-3100K 150mA


Electrical Parameters:

Parameter

Symbol

Min

Type

Max

Unit

Test Condition

Forward Voltage

VF

2.8

-

3.2

V

IF=150mA

Luminous Flux

IV

55

-

65

lm

IF=150mA

Color temperature

CCT

2600                    2800

 K

IF=150mA

Viewing Half Angle

 2θ1/2


120



deg

IF=150mA

Reverse Current

IR



5

uA

VR=5V

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.


White 2016 SMD LED Demension;

Size of 2016WW30K60L3W Super Bright 0.5W Warm White LED 2016 SMD 2900-3100K

*UV LED, Red SMD LED, Yellow LED, Blue SMD LED are all available in this 2016 SMD LED size.*


Product Details:

99.99% purity gold wire;

Silver plated LED frame;

Famous branded chips;

High quality epoxy;
