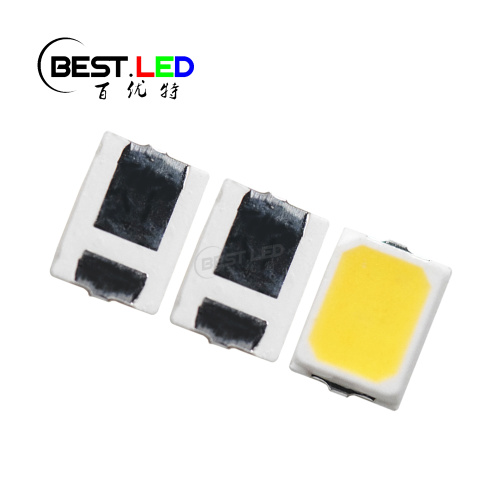

Ra90 LED 2016 SMD 0.5W Warm White 2600-2800K
  • Ra90 LED 2016 SMD 0.5W Warm White 2600-2800K
  • Ra90 LED 2016 SMD 0.5W Warm White 2600-2800K
  • Ra90 LED 2016 SMD 0.5W Warm White 2600-2800K
  • Ra90 LED 2016 SMD 0.5W Warm White 2600-2800K
  • Ra90 LED 2016 SMD 0.5W Warm White 2600-2800K
Ra90 LED 2016 SMD 0.5W Warm White 2600-2800K
Ra90 LED 2016 SMD 0.5W Warm White 2600-2800K
Ra90 LED 2016 SMD 0.5W Warm White 2600-2800K
Ra90 LED 2016 SMD 0.5W Warm White 2600-2800K
Ra90 LED 2016 SMD 0.5W Warm White 2600-2800K

Ra90 LED 2016 SMD 0.5W Warm White 2600-2800K

Min. Order:
4000 Piece/Pieces
Min. Order:
4000 Piece/Pieces
Transportation:
Ocean, Land, Air, Express, Others
Port:
SHENZHEN
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 30000000
Supply Ability: 30000000/Month
Payment Type: T/T,Paypal,W/U
Incoterm: FOB
Certificate: ISO:9001
HS Code: 8541410000
Transportation: Ocean,Land,Air,Express,Others
Port: SHENZHEN
Product Description
Product Description

Can LED light be warm white?

Sure, as long as you use the warm white SMD LED or white through-hole LED as lighting source in side. This 2016WW26K60L4W emits the warm white color light at range of 2600-2800K. When people produce the LED light with this 2016 SMD LED warm white LED as lighting source. It will show the warm white color for your project when it's lighting. With this small SMD LED of 2016 LED frame, the size is only 2.0x1.6mm so that it will be easy to fit with different kind of lighting project such as living room decoration project ect. Contact us for more detail if you need~

2016WW26K60L4W Ra90 LED 2016 SMD 0.5W Warm White 2600K 2700K 2800K 150mA


Electrical Parameters:

Parameter

Symbol

Min

Type

Max

Unit

Test Condition

Forward Voltage

VF

2.8

-

3.2

V

IF=150mA

Luminous Flux

IV

50

-

60

lm

IF=150mA

Color temperature

CCT

2600                    2800

 K

IF=150mA

Viewing Half Angle

 2θ1/2


120



deg

IF=150mA

Reverse Current

IR



5

uA

VR=5V

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.


Demension of warm white SMD LED; Size of 2016WW26K60L4W Ra90 LED 2016 SMD 0.5W Warm White 2600K 2700K 2800K 150mA

*UV LED, Red SMD LED, Yellow LED, Blue SMD LED are all available in this 2016 SMD LED size.*


Product Details:

99.99% purity gold wire;

Silver plated LED frame;

Famous branded chips;

High quality epoxy;
