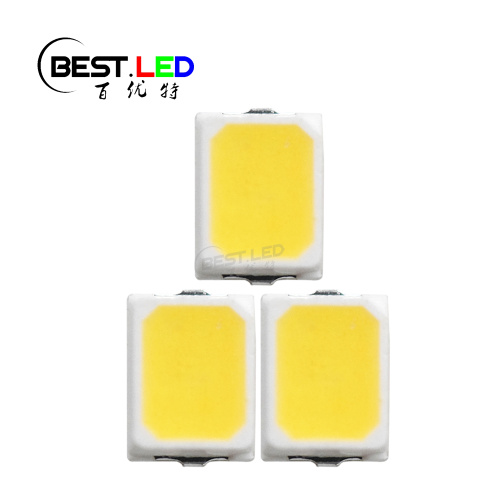

Supre Bright Warm White LED 2016 SMD 2600-2800K
  • Supre Bright Warm White LED 2016 SMD 2600-2800K
  • Supre Bright Warm White LED 2016 SMD 2600-2800K
  • Supre Bright Warm White LED 2016 SMD 2600-2800K
  • Supre Bright Warm White LED 2016 SMD 2600-2800K
  • Supre Bright Warm White LED 2016 SMD 2600-2800K
Supre Bright Warm White LED 2016 SMD 2600-2800K
Supre Bright Warm White LED 2016 SMD 2600-2800K
Supre Bright Warm White LED 2016 SMD 2600-2800K
Supre Bright Warm White LED 2016 SMD 2600-2800K
Supre Bright Warm White LED 2016 SMD 2600-2800K

Supre Bright Warm White LED 2016 SMD 2600-2800K

Min. Order:
4000 Piece/Pieces
Min. Order:
4000 Piece/Pieces
Transportation:
Ocean, Land, Air, Express, Others
Port:
SHENZHEN
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 30000000
Supply Ability: 30000000/Month
Payment Type: T/T,Paypal,W/U
Incoterm: FOB
Certificate: ISO:9001
HS Code: 8541410000
Transportation: Ocean,Land,Air,Express,Others
Port: SHENZHEN
Product Description
Product Description

Warm white or cool white?

It's all up to your project. Normally warm white LED is the white SMD LED or White LED Lamps that with color temperature(CCT) in range of 2600k to 3500K. And cool white LED will have the CCT range over to 6000K, the more higher CCT number you get, the more blue color you will see from the cool white LED color when it's working. For warm white LED, it's widely use in the badroom decoration project because the light looks yelloe-ish and relax and on the other hand, cool white LED will be more offen use in meeting room because the light will looks more bright and clean. People will use the LED lighting source as what they need. If you want more detail about the LED, just feel free to contact us.

2016WW26K28L4W High CRI LED 2016 SMD Warm White 2600-2800K


Electrical Parameters:

Parameter

Symbol

Min

Type

Max

Unit

Test Condition

Forward Voltage

VF

2.8

-

3.2

V

IF=150mA

Luminous Flux

IV

55

-

65

lm

IF=150mA

Color temperature

CCT

2600                    2800

 K

IF=150mA

Viewing Half Angle

 2θ1/2


120



deg

IF=150mA

Reverse Current

IR



5

uA

VR=5V

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.


Size of 2016 White SMD LED:

Size of 2016WW26K28L4W High CRI LED 2016 SMD Warm White 2600-2800K

*UV LED, Red SMD LED, Yellow LED, Blue SMD LED are all available in this 2016 SMD LED size.*


Product Details:

99.99% purity gold wire;

Silver plated LED frame;

Famous branded chips;

High quality epoxy;
