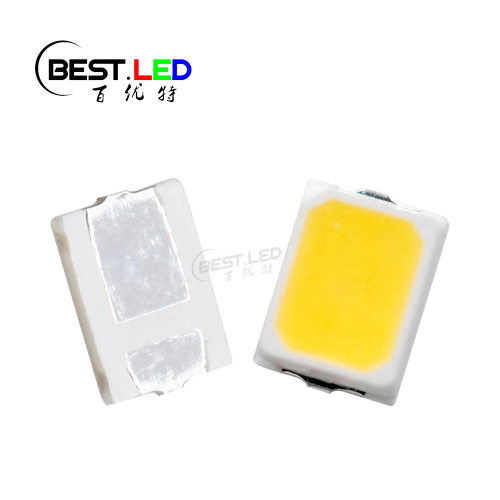

Ra90 LED 2016 SMD 7000-8000K Diamond White LED
  • Ra90 LED 2016 SMD 7000-8000K Diamond White LED
  • Ra90 LED 2016 SMD 7000-8000K Diamond White LED
  • Ra90 LED 2016 SMD 7000-8000K Diamond White LED
  • Ra90 LED 2016 SMD 7000-8000K Diamond White LED
  • Ra90 LED 2016 SMD 7000-8000K Diamond White LED
Ra90 LED 2016 SMD 7000-8000K Diamond White LED
Ra90 LED 2016 SMD 7000-8000K Diamond White LED
Ra90 LED 2016 SMD 7000-8000K Diamond White LED
Ra90 LED 2016 SMD 7000-8000K Diamond White LED
Ra90 LED 2016 SMD 7000-8000K Diamond White LED

Ra90 LED 2016 SMD 7000-8000K Diamond White LED

Min. Order:
4000 Piece/Pieces
Min. Order:
4000 Piece/Pieces
Transportation:
Ocean, Land, Air, Express, Others
Port:
SHENZHEN
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 30000000
Supply Ability: 30000000/Month
Payment Type: T/T,Paypal,W/U
Incoterm: FOB
Certificate: ISO:9001
HS Code: 8541410000
Transportation: Ocean,Land,Air,Express,Others
Port: SHENZHEN
Product Description
Product Description

What does 7000K mean, in terms of lighting?

7000K is a color temperature of white LED(SMD LED or DIP LED). From warm white to cool white, there also have a natural white and daylight white in the middle. Different color temperature will means different color of white. 7000K is a cool white LED color temperature, the light will have a little bule-ish inside, which make people feel cool and calm so most of people name it as cool white LED. In this  2016WC70K60L4W LED, it got 7000-8000K color temperature and high cri type of Ra90. On the other hand, this white SMD LED were made with a big chip inside so that it can work with 150mA and emits super bright lument on range of 50-60lm.

2016WC70K60L4W Ra90 LED 2016 SMD 7000K - 8000K Diamond White LED


Electrical Parameters:

Parameter

Symbol

Min

Type

Max

Unit

Test Condition

Forward Voltage

VF

2.8

-

3.2

V

IF=150mA

Luminous Flux

IV

50

-

60

lm

IF=150mA

Color temperature

CCT

7000                    8000

 K

IF=150mA

Viewing Half Angle

 2θ1/2


120



deg

IF=150mA

Reverse Current

IR



5

uA

VR=5V

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.


Size of 2016 SMD LED SMT:

Size of 2016WC70K60L4W Ra90 LED 2016 SMD 7000K - 8000K Diamond White LED

*UV LED, Red SMD LED, Yellow LED, Blue SMD LED are all available in this 2016 SMD LED size.*


Product Details:

99.99% purity gold wire;

Silver plated LED frame;

Famous branded chips;

High quality epoxy;
