High CRI LED 2016 SMD 6000-6500K Cool White
  • High CRI LED 2016 SMD 6000-6500K Cool White
  • High CRI LED 2016 SMD 6000-6500K Cool White
  • High CRI LED 2016 SMD 6000-6500K Cool White
  • High CRI LED 2016 SMD 6000-6500K Cool White
  • High CRI LED 2016 SMD 6000-6500K Cool White
High CRI LED 2016 SMD 6000-6500K Cool White
High CRI LED 2016 SMD 6000-6500K Cool White
High CRI LED 2016 SMD 6000-6500K Cool White
High CRI LED 2016 SMD 6000-6500K Cool White
High CRI LED 2016 SMD 6000-6500K Cool White

High CRI LED 2016 SMD 6000-6500K Cool White

Min. Order:
4000 Piece/Pieces
Min. Order:
4000 Piece/Pieces
Transportation:
Ocean, Land, Air, Express, Others
Port:
SHENZHEN
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 30000000
Supply Ability: 30000000/Month
Payment Type: T/T,Paypal,WU
Incoterm: FOB
Certificate: ISO:9001
HS Code: 8541410000
Transportation: Ocean,Land,Air,Express,Others
Port: SHENZHEN
Product Description
Product Description

What does Ra mean in lighting?

Different with incandescent lamp, some of white LED cannot light up things vividly even they were turn on 100%. There have a standard that how vividly the white LED can light up the object. Which is color rendering index. The more higher Ra value we get from the white SMD LED or white LED lamp, the more vividly color we can see when the LED is working. In this 2016WC60K28L4W, we produce it with Ra90 level, which is the high standard to light up things. If you need some high quality lighting source of SMD LED. Just check with this one or contact us for more detail about it.

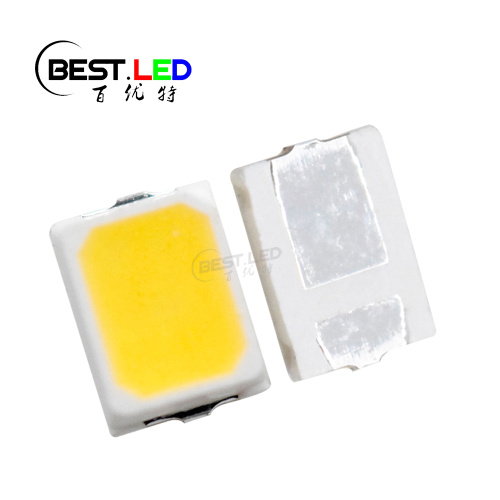

2016WC60K28L4W High CRI LED 2016 SMD 6000 6500K Cool White Ra90


Electrical Parameters:

Parameter

Symbol

Min

Type

Max

Unit

Test Condition

Forward Voltage

VF

2.8

-

3.2

V

IF=60mA

Luminous Flux

IV

24

-

28

lm

IF=60mA

Color temperature

CCT

6000                   6500

 K

IF=60mA

Viewing Half Angle

 2θ1/2


120



deg

IF=60mA

Reverse Current

IR



5

uA

VR=5V

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.


Size of 2016 SMD LED SMT:

Size of 2016WC60K28L4W High CRI LED 2016 SMD 6000 6500K Cool White Ra 90

*UV LED, Red SMD LED, Yellow LED, Blue SMD LED are all available in this 2016 SMD LED size.*


Product Details:

99.99% purity gold wire;

Silver plated LED frame;

Famous branded chips;

High quality epoxy;
