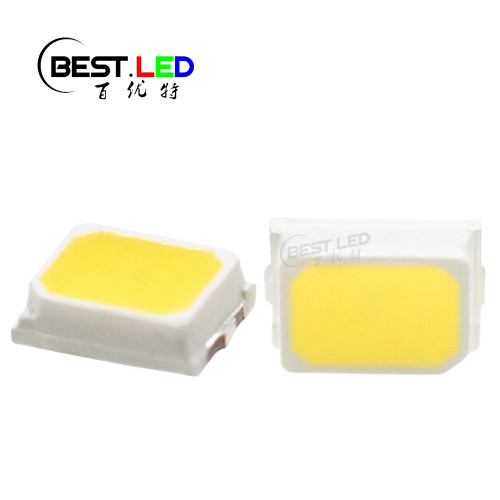

Super Brigth High-CRI LED 2016 SMD 5000-5500K 150mA
  • Super Brigth High-CRI LED 2016 SMD 5000-5500K 150mA
  • Super Brigth High-CRI LED 2016 SMD 5000-5500K 150mA
  • Super Brigth High-CRI LED 2016 SMD 5000-5500K 150mA
  • Super Brigth High-CRI LED 2016 SMD 5000-5500K 150mA
  • Super Brigth High-CRI LED 2016 SMD 5000-5500K 150mA
Super Brigth High-CRI LED 2016 SMD 5000-5500K 150mA
Super Brigth High-CRI LED 2016 SMD 5000-5500K 150mA
Super Brigth High-CRI LED 2016 SMD 5000-5500K 150mA
Super Brigth High-CRI LED 2016 SMD 5000-5500K 150mA
Super Brigth High-CRI LED 2016 SMD 5000-5500K 150mA

Super Brigth High-CRI LED 2016 SMD 5000-5500K 150mA

Min. Order:
4000 Piece/Pieces
Min. Order:
4000 Piece/Pieces
Transportation:
Ocean, Land, Air, Express, Others
Port:
SHENZHEN
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 30000000
Supply Ability: 30000000/Month
Payment Type: T/T,Paypal,WU
Incoterm: FOB
Certificate: ISO:9001
HS Code: 8541410000
Transportation: Ocean,Land,Air,Express,Others
Port: SHENZHEN
Product Description
Product Description

What does 5500K mean in lighting?

When we see the "K" in the LED with a high number, normally we are discussing about the white SMD LED or white LED Lamps. And that means the Kelvin, which is the unit of color temperature. There will have kinds of white LED. Some of them looks like a yellow or amber LED. And some of them have a color looks more like a light blue even they also name it as white LED. For the former, people name is as warm white LED and the later, people name it as cool white LED. 5500K are the color temperature in the middle, which means the 5500k white LED emits the natural tone, pure white LED. If you looking for white LED with super white color and high CRI, check with this 2016WC50K60L4W.

2016WC50K60L4W Ra90 Super Brigth High CRI LED 2016 SMD 5000 5500K 150mA


Electrical Parameters:

Parameter

Symbol

Min

Type

Max

Unit

Test Condition

Forward Voltage

VF

2.8

-

3.2

V

IF=150mA

Luminous Flux

IV

50

-

60

lm

IF=150mA

Color temperature

CCT

5000                   5500

 K

IF=150mA

Viewing Half Angle

 2θ1/2


120



deg

IF=150mA

Reverse Current

IR



5

uA

VR=5V

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.


Size of 2016 SMD LED SMT:

SIZE OF 2016WC50K60L4W Ra90 Super Brigth High CRI LED 2016 SMD 5000 5500K 150mA

*UV LED, Red SMD LED, Yellow LED, Blue SMD LED are all available in this 2016 SMD LED size.*


Product Details:

99.99% purity gold wire;

Silver plated LED frame;

Famous branded chips;

High quality epoxy;
