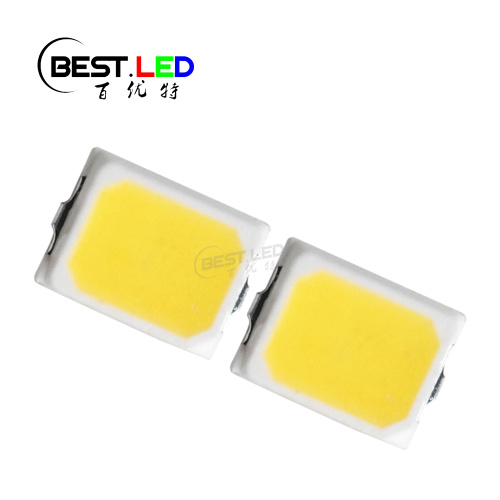

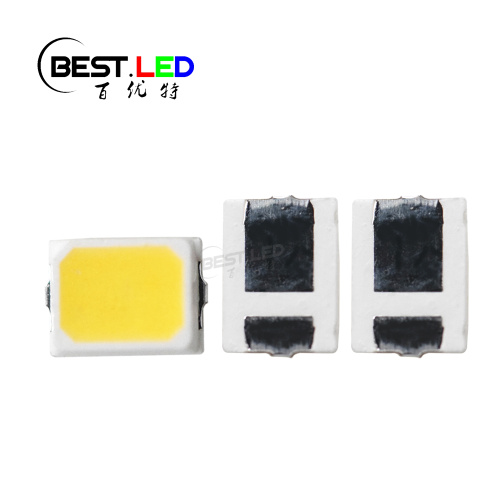

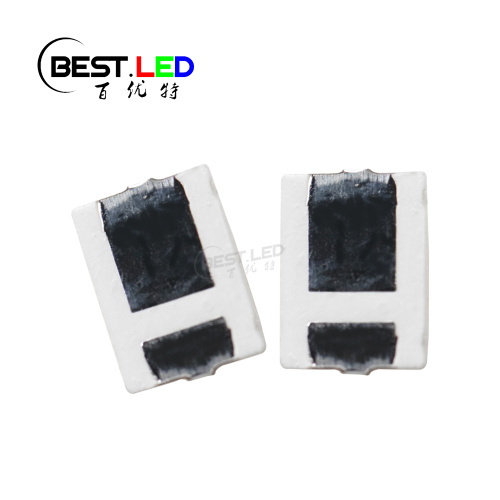

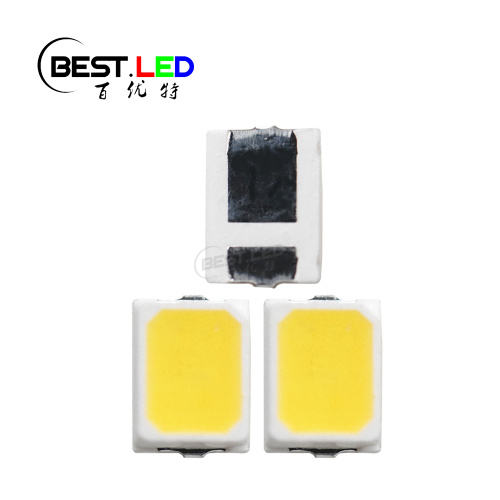

2016 SMD LED Cool White LED 10000-15000K Ra80
  • 2016 SMD LED Cool White LED 10000-15000K Ra80
  • 2016 SMD LED Cool White LED 10000-15000K Ra80
  • 2016 SMD LED Cool White LED 10000-15000K Ra80
  • 2016 SMD LED Cool White LED 10000-15000K Ra80
  • 2016 SMD LED Cool White LED 10000-15000K Ra80
2016 SMD LED Cool White LED 10000-15000K Ra80
2016 SMD LED Cool White LED 10000-15000K Ra80
2016 SMD LED Cool White LED 10000-15000K Ra80
2016 SMD LED Cool White LED 10000-15000K Ra80
2016 SMD LED Cool White LED 10000-15000K Ra80

2016 SMD LED Cool White LED 10000-15000K Ra80

Min. Order:
10000 Piece/Pieces
Min. Order:
10000 Piece/Pieces
Transportation:
Ocean, Air, Land, Express, Others
Port:
SHENZHEN
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 1000000000
Supply Ability: 1000000000
Payment Type: L/C,T/T,Paypal,Others
Incoterm: FOB,EXW,CIF
Certificate: ISO:9001
HS Code: 8541410000
Transportation: Ocean,Air,Land,Express,Others
Port: SHENZHEN
Product Description
Product Description

Which is better bright white or cool white?

Only the right one for your project are the best. White SMD LED includes warm white, cool white, natural white ect. Bright white means the lumens of white LED. If we use the same material to produce warm white LED and cool white LED. After finished the production of 2016 SMD LED, the cool white LED will got higher brightness if we light up them all and compare the light. Different color temperature will work with different project. That's why we told that there have a better one. Just the right one~

2016CW150K28L3W 2016 SMD LED Cool White LED 10000-15000K Ra80


Electrical Parameters:

Parameter

Symbol

Min

Type

Max

Unit

Test Condition

Forward Voltage

VF

2.8

-

3.2

V

IF=60mA

Luminous Flux

IV

24

-

28

lm

IF=60mA

Color temperature

CCT

10000              15000

 K

IF=60mA

Viewing Half Angle

 2θ1/2


120



deg

IF=60mA

Reverse Current

IR



5

uA

VR=5V

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.


Size of 2016 LED SMT:

Size of 2016CW150K28L3W 2016 SMD LED Cool White LED 10000-15000K Ra80

*UV LED, Red SMD LED, Yellow LED, Blue SMD LED are all available in this 2016 SMD LED size.*


Product Details:

99.99% purity gold wire;

Silver plated LED frame;

Famous branded chips;

High quality epoxy;


Production progress:

SMD LED Process
