CRI 90 LED 2016 SMD Cool White 8000-10000K
  • CRI 90 LED 2016 SMD Cool White 8000-10000K
  • CRI 90 LED 2016 SMD Cool White 8000-10000K
  • CRI 90 LED 2016 SMD Cool White 8000-10000K
  • CRI 90 LED 2016 SMD Cool White 8000-10000K
  • CRI 90 LED 2016 SMD Cool White 8000-10000K
CRI 90 LED 2016 SMD Cool White 8000-10000K
CRI 90 LED 2016 SMD Cool White 8000-10000K
CRI 90 LED 2016 SMD Cool White 8000-10000K
CRI 90 LED 2016 SMD Cool White 8000-10000K
CRI 90 LED 2016 SMD Cool White 8000-10000K

CRI 90 LED 2016 SMD Cool White 8000-10000K

Min. Order:
10000 Piece/Pieces
Min. Order:
10000 Piece/Pieces
Transportation:
Ocean, Air, Land, Express, Others
Port:
SHENZHEN
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 1000000000
Supply Ability: 1000000000
Payment Type: L/C,T/T,Paypal,Others
Incoterm: FOB,EXW,CIF
Certificate: ISO:9001
HS Code: 8541410000
Transportation: Ocean,Air,Land,Express,Others
Port: SHENZHEN
Product Description
Product Description

Is CRI 90 enough?

CRI, which is the short name of color rendering index. There are kinds of CRI level in white SMD LED or white LED Lamps. Such as CRI 70, 80, 90, 93, 97 or even CRI 98. CRI 70 are the most common product and CRI 80 are considered as mid-range. High CRI LED will emits the light that can make the color of object looks vividly. Then is CRI 90 enough? It's up to your required, if you just need to make some common product and need the product have a competitive price, then CRI 70 or 80 are enough. But if you have a high standard for the lighting color, use those SMD LED with CRI 90 or more than that.

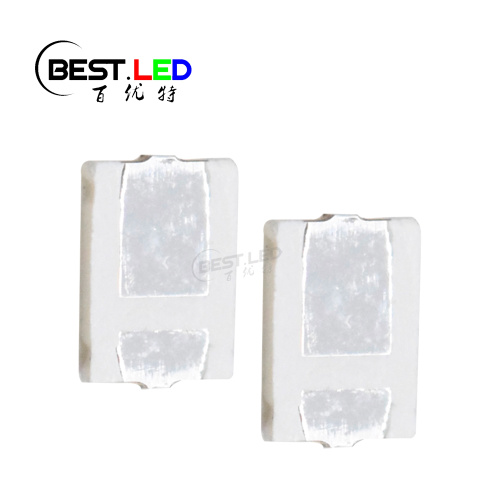

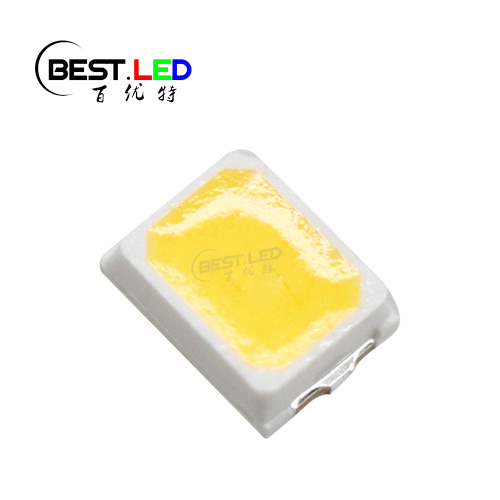

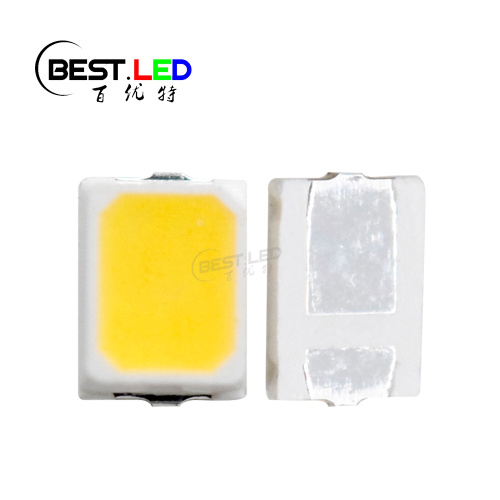

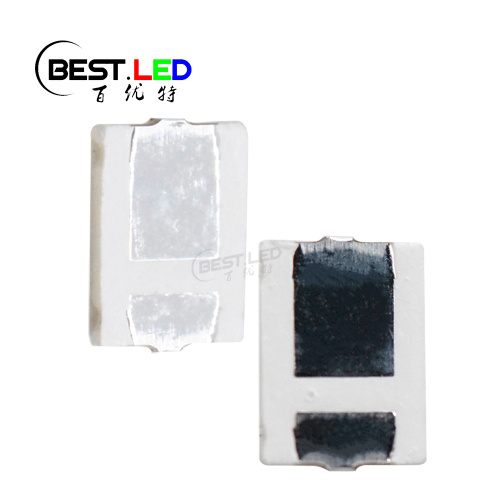

2016CW100K28L4W CRI 90 LED 2016 SMD LED Cool White 8000-10000K


Electrical Parameters:

Parameter

Symbol

Min

Type

Max

Unit

Test Condition

Forward Voltage

VF

2.8

-

3.2

V

IF=60mA

Luminous Flux

IV

24

-

28

lm

IF=60mA

Color temperature

CCT

8000    10000

 K

IF=60mA

Viewing Half Angle

 2θ1/2


120



deg

IF=60mA

Reverse Current

IR



5

uA

VR=5V

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.


Size of 2016 LED SMT:

Size of 2016CW100K28L4W CRI 90 LED 2016 SMD LED  Cool White 8000-10000K

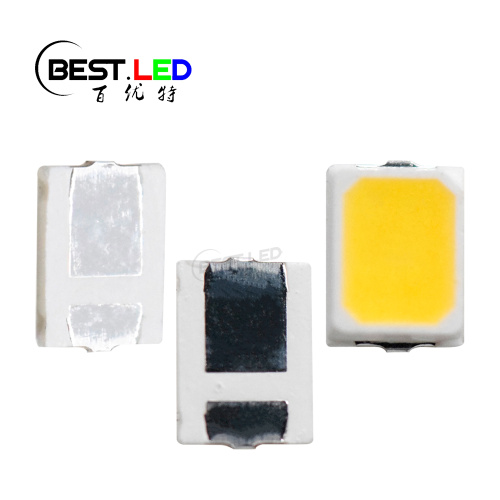

*UV LED, Red SMD LED, Yellow LED, Blue SMD LED are all available in this 2016 SMD LED size.*


Product Details:

99.99% purity gold wire;

Silver plated LED frame;

Famous branded chips;

High quality epoxy;


Production progress:

SMD LED Process
