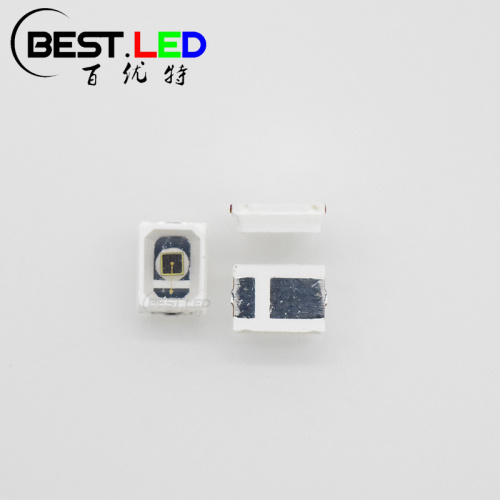

730nm Far Red 2016 SMD 730nm LED Emitters

Is 730nm LED a far red LED grow light?

This 2016 SMD LED with 730nm LED got a size in 2.0x1.6mm. It will emits the 730nm radiation when the current pass through it. Compare with 940nm LED, this IR LED will got more higher red light. But this light are not for lighting application. As we know, the plant grow becuase of sunlight. There are full spectrum in sunlight. But there might don't have that enough sunlight for all the plant. In this case, people invented the plant grow light that emits those light that just good for growth of plant. 2016FIRC-73I14I100 will delivers precision far red LED light for plants. If you looking for some 730nm LED in your project, just feel free to contact us for more detail~

Electrical Parameters:

*Pulse forward current confition: Duty 1% and Pulse width=10us.

*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

Size of 730nm LED with 2016 SMD LED:

Product Details:

99.99% purity gold wire;

Silver plated LED frame;

Famous branded chips;

High quality epoxy;

Production progress:

HANDLING PRECAUTIONS:

Compare to epoxy encapsulant that is hard and brittle, silicone is softer and flexible Althouth its characteristiec significantly reduces thermal stress, it is more susceptible to damage by extemal mechanical force. As a result, special handling precautions need to be observed during assembly using silicone encapsulated Led products. Failure to comply might lead to damage and premature failure of the led

1. Handle the component along the side surfaces by using forceps or appropriate tools.

2, Do not directly touch or handle the silicone lens surface. It may damage the internal circuitry.

3, Do not stack together assembled PCBS containing exposed LEDs. Impact may scratch the silicone lens or damage the internal circuitry.

4, 4-A The inner diameter of the SMD pickup nozzle should not exceed the size of the LED to prevent air leaks;

    4-B A plible material is suggested for the nozzle tip to avoid acratching or damaging the LED surface during pickup.

    4-C The dimension of the component must be accurately programmed in the pick-and-place machine to insure precise pickup and avoid damage during production;

    4-D As silicone encapsulation is permeable to gases, some corrosive substances such as H2S might corrode silver plationg of leadframe. Special care should be taken if an LED with silicone encapsulation is to used near such substances.

5, Please aviod continued exposure to the condensing moisture environment and keep the product away from repid transitions in ambiemt temperature.

6, Product in the original sealed package is recommended to be assembled within 24 hours of opening.
