1550nm Far Red IR LED Side View LED

Get Latest Price

Min. Order:: 10 Piece/Pieces

Min. Order:: 10 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

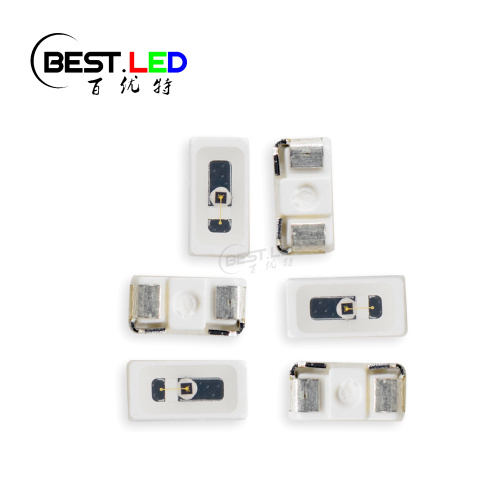

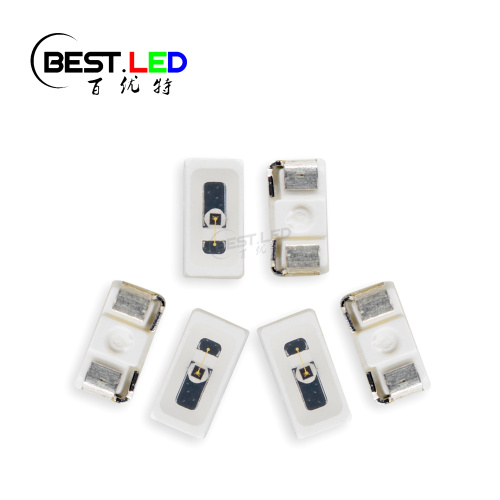

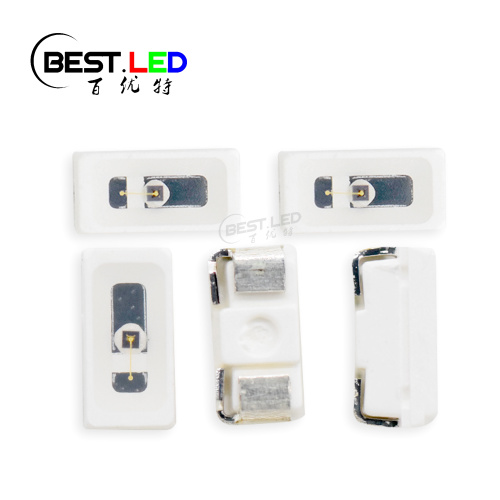

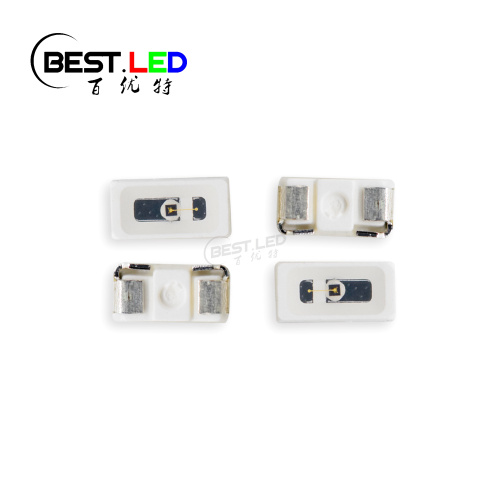

Far Red IR LED 1550nm 1500nm with 3014 SMD LED;

There have two kinds of 1550nm LED available in our factory, one for small power 0.2W and other one for 3W. In this 3015IRC-150L14I100, we produce it with small power chip of 1550nm wavelength inside. But it can also handle 100mA even it's a small power LED inside. 1500nm LED is far red LED, which is not common LED as 625nm LED. Far red LED are widely use in medical area. On the other hand, the emitting direction are able to adjust because there have two pads on the bottom and side of SMD LED. This 3014 SMD LED case are also available in other blue LED, green LED ect.

3015IRC-150L14I100 1550nm 1500nm Far Red LED Side View LED 3014 SMD LED 0.2W

Electrical Parameters:

Parameter	Symbol	Rating	Unit
Forward Current	IF	100	mA
Forward Voltage	V	0.8-1.2V	V
Luminous Intensity	IV	20-35	mw/sr
Wavelength	λP	1550nm	nm
Packing	Piece	4000	reel
Vewing angle	2θ1/2	120	Deg
