1550nm IR LED 3mm LED Blue Lens H4.5mm

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 10 Piece/Pieces

Min. Order:: 10 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

- 1550nm LED -

3104FIRBT-155L/42I250-60A

1550nm LED can be used in kinds of area such as: Telecommunications, free space optics, lidar applications, range finding and cosmetic non ablative procedures. 3104FIRBT-155L/42I250-60A is a small power 1550nm LED and packaged by 3mm blue epoxy lens. If you need some small power blue lens 1550nm infrared LED, this one won't let you disappointment. Visit our web form more information on light emitting diode products offerings.

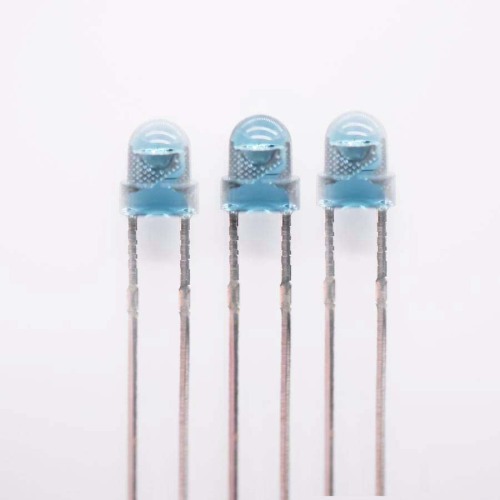

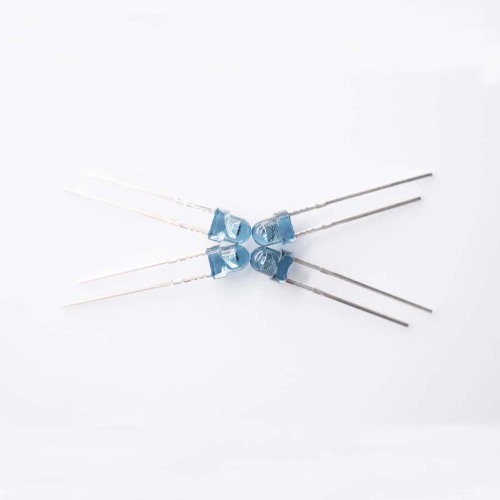

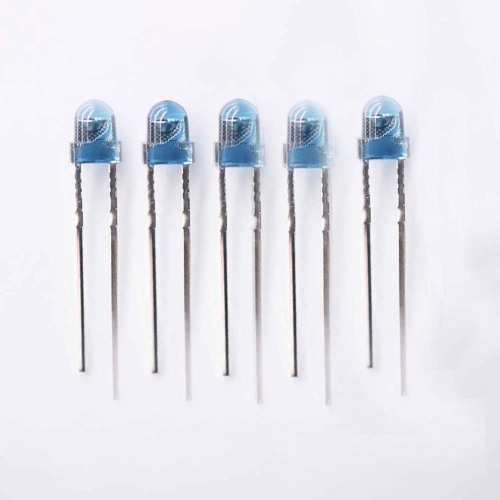

1550nm IR LED - 3mm Blue Lens

- Size: 3 mm*H4.5mm

- Chip Number: 1 chips

- Color: 1550nm LED

- Type: Blue clear

- Chip brand: Tyntek

- 60 degree

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

- Size of 3mm IR Through-hole LED -

1550nm 4.5mm high led

*This case are also available for other LED, such as: 5mm green through-hole LED, UV LED, 660nm LED, 940nm LED, 5mm blue through-hole LED, yellow LED, amber LED ect*

- Working Through-hole IR LED -

IR LED

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Through-hole IR LED Parameter -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating
Power Dissipation	Pd	1000mW
Pulse Forward Current	IFP	1000mA
Forward Current	IF	350mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	2000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	0.9		1.4	V	IF=250mA
Pulse Forward Voltage	VF		1.5		V	IFP=1000mA
Radiant Intensity	IE	60		90	mw/sr	IF=250mA
Peak Wavelength	λP		1550		nm	IF=250mA
Total Radiated Power	PO		150		mw	IF=250mA
Half Width	Dl		50		nm	IF=250mA
Viewing Half Angle	2q1/2		±30		deg	IF=250mA
Reverse Current	IR			5	uA	VR=5V
Rise Time	Tr		15		ns	IF=250mA
Fall Time	Tf		7		ns	IF=250mA
*Luminous Intensity is measured by ZWL600.
*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
