Infrared LED 1450nm 1400nm IR Side View LED

Infrared LED 1450nm 1400nm IR Side View LED

Get Latest Price

Min. Order:: 10 Piece/Pieces

Min. Order:: 10 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

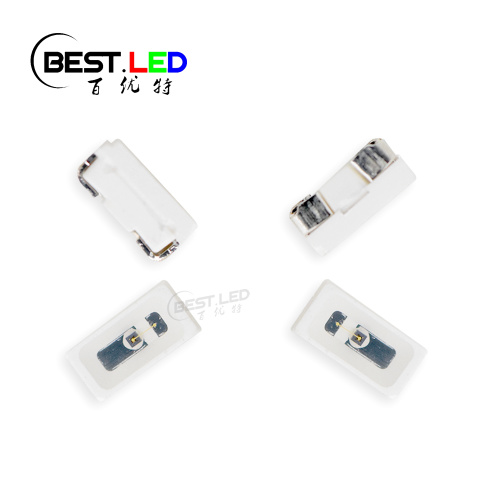

3014 SMD LED with 1400nm LED;

1450nm 1400nm LED in pakcage size of 3.0X1.5mm. Different with common 3014 SMD LED, this SMD LED are kind of two way use LED. Which can be weld on the bottom and side. Beucase its welding pad are on both of bottom and side. The emitting direction will be change according to your welding pad. The radiation will from the top if you use the bottom weldng pad and it will from the side if you use the side pad. In addition, this 3014 SMD LED smaller than most of SMD LED such as 5730 SMD LED, 2835 SMD LED, 3535 SMD LED ect. That will make it much more easy to fit with different application.

3015IRC-140L14I100 Infrared LED 1450nm 1400nm IR Side View LED

Electrical Parameters:

Parameter	Symbol	Rating	Unit
Forward Current	IF	100	mA
Forward Voltage	V	0.8-1.2V	V
Luminous Intensity	IV	20-35	mw/sr
Wavelength	λP	1450nm	nm
Packing	Piece	4000	reel
Vewing angle	2θ1/2	120	Deg
