1200nm IR LED 3014 SMD LED Side View

Get Latest Price

Min. Order:: 10 Piece/Pieces

Min. Order:: 10 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

1200nm Infrared Light Emitter with 3014 SMD LED;

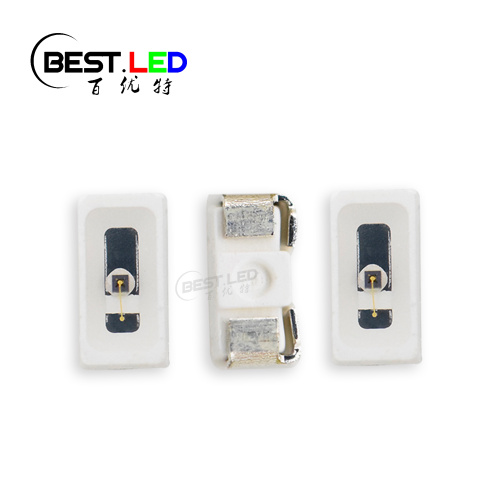

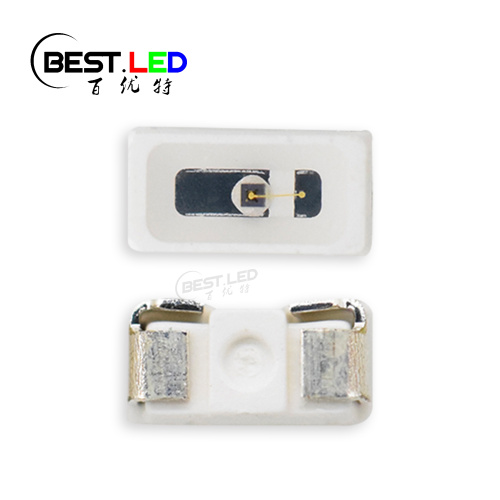

We produce this 1200nm LED with dual way use 3014 SMD LED case. The reason that we name it with dual way use is this SMD LED case have two kinds of soldering pad. One for top view lighting and other one for side view lighting. From the picture we can see there have two pads on the bottom of SMD LED and the other two pad are on the side of LED. All of this pad are available for soldering. Two way use LED will be much more easy to fit with different project. If you looking for a side view LED with far red wavelength, just contact us for more detail about it.

3015IRC-120L14I100 1200nm IR LED 3014 SMD LED Side View

Electrical Parameters:

Parameter	Symbol	Rating	Unit
Forward Current	IF	100	mA
Forward Voltage	V	0.8-1.2V	V
Luminous Intensity	IV	20-35	mw/sr
Wavelength	λP	1200nm	nm
Packing	Piece	4000	reel
Vewing angle	2θ1/2	120	Deg
