Diffused Green 10mm LED Super Bright LED

Diffused Green Through-hole LED 10mm Mini LED Bulb

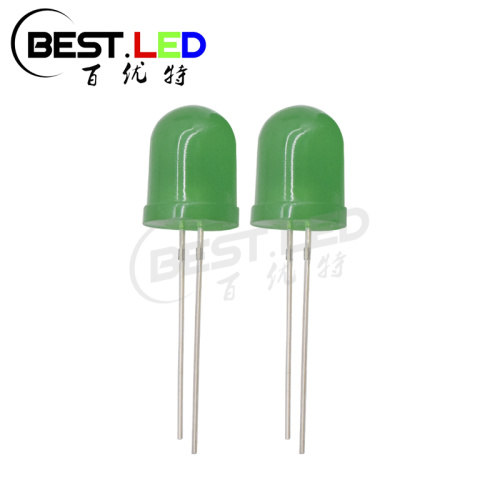

1003LGD-20U and 1004GD-12 are both diffused Green Through-hole LED with 10mm size. Compare with 1003LGD-20U, this 1004GD-12 will got more diffused lens so that from the picture you can not see the LED frame in side. Because of this green diffused lesn, this LED might cannot light up a long distance but it will got soft light and those light will be concentrated in the LED bulb, which can make a super bright green LED bulb with 520nm LED. Green LED can be package with different way, SMD LED or through-hole LED type. After you decide the package way, there will also have kinds of shape and size for you. Just feel free to contact us if any questions or some other required(such as if you need this LED to get the standard of salt spray test).

Size of Green Through-hole LED

Electrical Parameters:

* Pulse forward current condition: Duty 1% and pulse width=10us.

* Soldering condition: Soldering condition must be completed with 3 secongds at 260℃

Electrucal Optical Characteristics(Tc=25℃)

*Luminous Intensity is measured by ZWL600.

*θ1/2 is off-sxis angle at which the luminous intenity is half the axia luminous intensity;

Application of Green 520nm LED:

LED Indicator;

LED lighting project;

LED DIY project;
