SWIR 1050 nm IR LED 2016 SMD LED

Get Latest Price

Min. Order:: 100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	30000000/Month
Supply Ability:	30000000/Month
Payment Type:	T/T,Paypal,Others
Incoterm:	FCA,FOB,CIF,EXW
Certificate:	ISO:9001
HS Code:	8541100000
Transportation:	Ocean,Land,Air,Express
Port:	SHENZHEN

Product Description

What is SWIR LED;

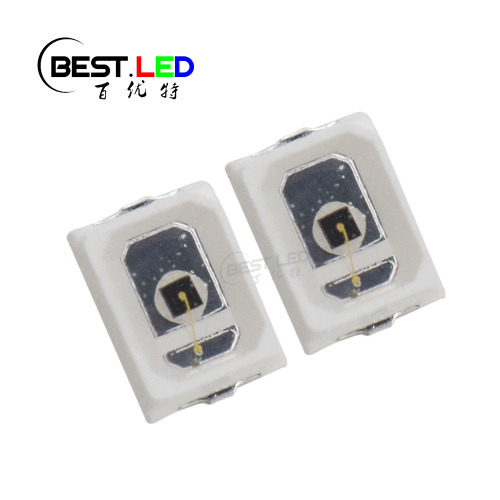

SWIR are the short name of short wavelength infrared then we name those LED with short wavelength infrared as SWIR LED. And the picture as follow, 201FIRC105L14I100 are one of them. This is a IR LED that package with 2016 SMD LED frame. During the production, we put the big size of LED chip inside the package so that it can handle 100mA operation current and emits the wavelength in range of 1050-1100nm once we pass through the current to it. Small size offer a flexible application for this SMD LED, which make it easy to fit with different PCB.

Electrical Parameters:

Parameter	Symbol	Rating	Unit
Power Dissipation	Pd	150	mw
Pulse Forward Current	IFP	500	mA
Forward voltage	IF	≤100	mA
Reverse Voltage	VR	5	V
Junction Temperature	Tj	100	℃
Operating Temperature	Topr	-40 - +80	℃
Storage Temperature	Tstg	-40 - +100	℃
Soldering Temperature	Tsol	260	℃
Electro-Stati-Discharge(HBM)	ESD	2000	V
Service lige under normal conditions	Time	60000	H
Warranty	Time	2	Years
Antistatic bag	Piece	4000	Bag

*Pulse forward current confition: Duty 1% and Pulse width=10us.

*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃

Parameter	Symbol	Min	Type	Max	Unit	Test Condition
Forward Voltage	VF	0.8	-	1.5	V	IF=100mA
Radiated Power	PO	-	8	-	mw/sr	IF=100mA
Dominant Wavelength	λp	1030 1050 1070			nm	IF=100mA
Half Width	λ△		25		nm	IF=100mA
Viewing Half Angle	θ1/2		120		deg	IF=100mA
Reverse Current	IR			5	uA	VR=5V
