1010 RGB LED Standard LED Mini SMD LED

SMD 1010 RGB LED standard mini LED

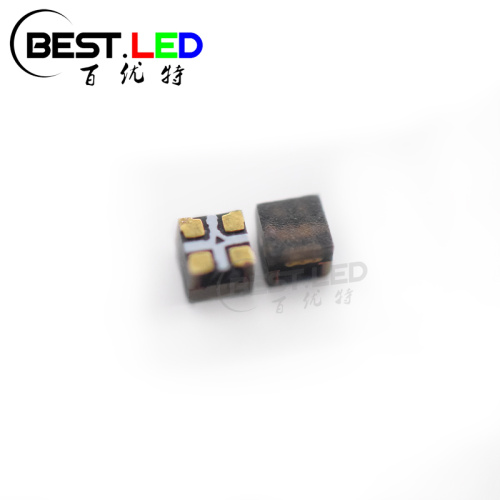

This 1010-3-03-RGBW is an very very small mini tricolor LED chip. If you don't have that much space in your project or PCB board, this SMD 1010 LED were bron for your case~ It's kind of the smallest RGB LED in the LED market. Because of the small size, you can easy to install it with close pitch. In this feature, this RGB LED are much more perfect for some LED display appcalition, smart phone, forportable and wearables appliactions. Even it got small size, it still have three LED chips inside, which is red, green and blue chip. There have 4 tiny pad on the bottom of this SMD RGB LED so that we can control the color by this pad. Once you connect this 1010 RGB LED into the circuit, you can easy to mix these three color and control them as your required.

Size of 1010 SMD LED RGB:

*If this size of RGB LED cannot meet your required, 3528 RGB LED, 5050 RGB LED, 2121 RGB LED or 1515 RGB LED are also available;

Features:

• Red, green and blue LED three chip inside;
• Available in tape and reel;
• Lens type: Diffused;
• High relability, hig radiation intensity and easy to solder leads;
• Chip Demension: 205um, 205um, 205um;

Absolute Maximum Ratings(Tc=25℃)

*Pulse Forward current confition: Duty 1% and pulse width=10us.

*Soldering confition: Soldering condition must be completed with 3 seconds at 260℃

Electrucal Optical Characteristics(Tc=25℃)

Main applications:

Backlight, Indicato light;

Industrial controls;

Medical equipment and communications equipment;

Security electronics;

Handling Precautions:

Compare to epoxy encapsulant that is hard and brittle, silicone is softer and flexible Althouth its characteristiec significantly reduces thermal stress, it is more susceptible to damage by extemal mechanical force. As a result, special handling precautions need to be observed during assembly using silicone encapsulated Led products. Failure to comply might lead to damage and premature failure of the led

1. Handle the component along the side surfaces by using forceps or appropriate tools.

2, Do not directly touch or handle the silicone lens surface. It may damage the internal circuitry.

3, Do not stack together assembled PCBS containing exposed LEDs. Impact may scratch the silicone lens or damage the internal circuitry.

4, 4-A The inner diameter of the SMD pickup nozzle should not exceed the size of the LED to prevent air leaks;

    4-B A plible material is suggested for the nozzle tip to avoid acratching or damaging the LED surface during pickup.

    4-C The dimension of the component must be accurately programmed in the pick-and-place machine to insure precise pickup and avoid damage during production;

    4-D As silicone encapsulation is permeable to gases, some corrosive substances such as H2S might corrode silver plationg of leadframe. Special care should be taken if an LED with silicone encapsulation is to used near such substances.

5, Please aviod continued exposure to the condensing moisture environment and keep the product away from repid transitions in ambiemt temperature.

6, Product in the original sealed package is recommended to be assembled within 24 hours of opening.
