60kg.cm torque dc gear motor

USD20

5-4999 Piece/Pieces
USD10

≥5000 Piece/Pieces

Payment Type:: T/T, Paypal

Incoterm:: FOB, CIF

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 35 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Hongkong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	200000pc per month
Supply Ability:	2000000pc annual
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF
Certificate:	CE, Rohs, FCC
HS Code:	8501109990
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Hongkong

Product Description

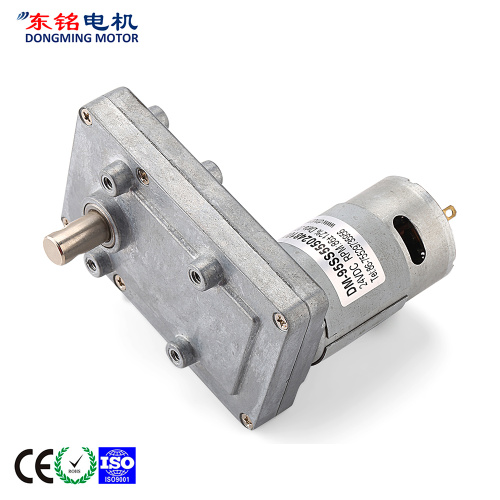

DM-95SS555 DC SPUR GEAR MOTOR

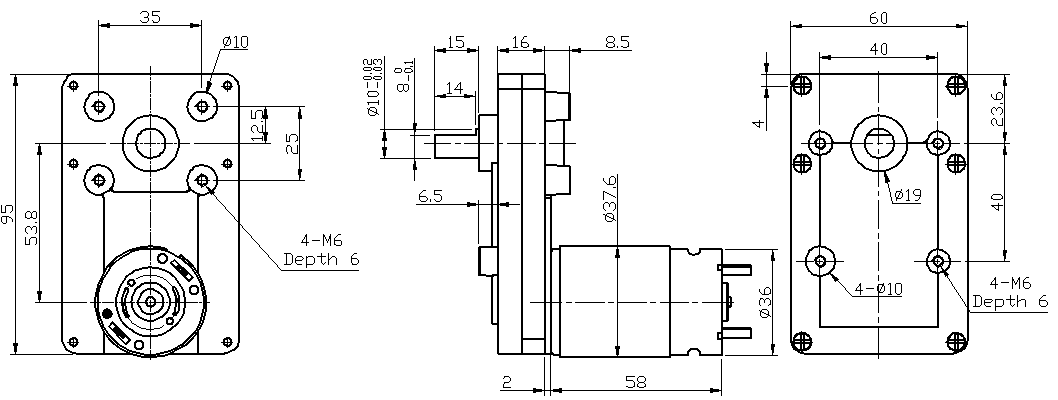

Another type of 95mm Dc spur gear motor is DM-95SS555. It contains a 95mm*60mm gearbox and a 555 dc motor.

This Miniature Gear Motors could produce stall torque as high as 15Nm. These Small 12v Gear Motor usually applied on industry machines and equipments.

95mm dc gear motor refers to 95mm dc spur gear motor, including Dm-95SS555 and DM-95SS775 high torque dc gear motors.

motor 6v

motor dc 12v

Main voltage : 12VDC.24VDC

Typical applications :

Instrument, Electric tools,Coffee machine,

Vending machine, Massager,Game machine,

Electric window opener,Automation equipment

Gearbox Data :

Number of stages	3	4	5
Reduction ratio	94	394	1166
Gearbox length [L"mm	16	16	16
Breaking torque(kgf.cm)	15	60	120
Gearbox efficiency	73%	65%	59%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-555-012-3000	12	≤140	3000	≤800	2200	150	3.4	≥480	≥2400
DM-555-012-4500	12	≤220	4500	≤1200	3300	220	7.4	≥700	≥3840
DM-555-012-6000	12	≤350	6000	≤2000	4500	300	13.8	≥960	≥4800
DM-555-024-3000	24	≤70	3000	≤400	2200	150	3.4	≥480	≥1280
DM-555-024-4500	24	≤110	4500	≤600	3300	220	7.4	≥700	≥2400
DM-555-024-6000	24	≤180	6000	≤1000	4500	300	13.8	≥960	≥3200

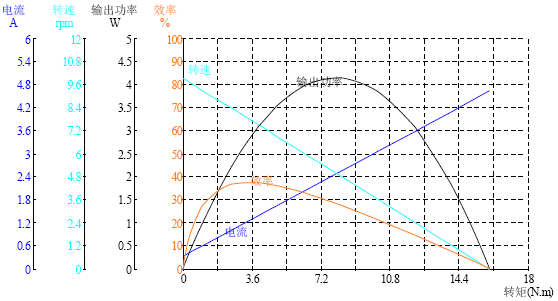

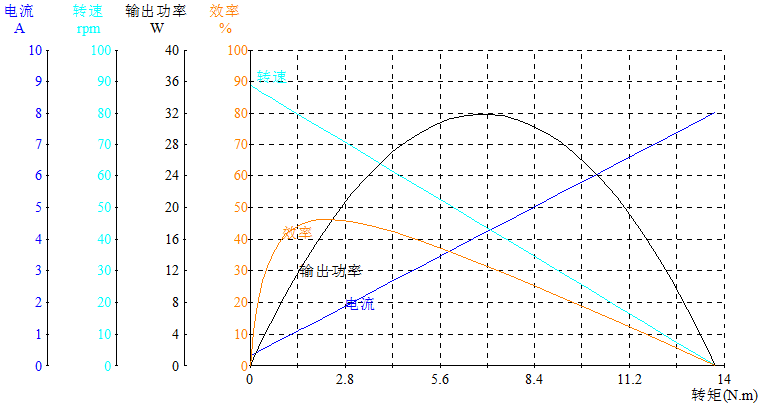

Geared Motor Samples Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-95SS5550248100-94K	24	0.307	88.8	1.599	73.9	23	17.81	140	8.025
DM-95SS5550064250-394K	6	0.343	9.9	1.216	7.9	33	2.729	163	4.637
