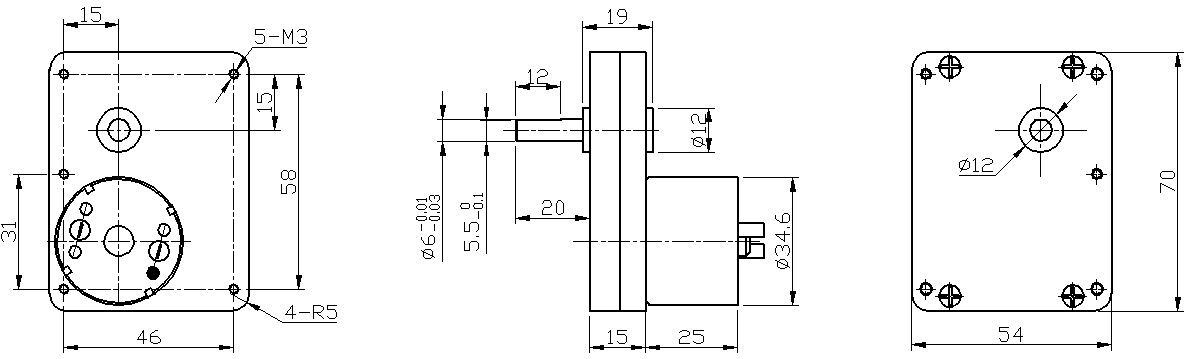

DM-70SS3525 DC SPUR GEAR MOTOR

DM-70SS3525 Micro Geared Motors are one of typical type 70mm Dc Spur Gear Motor. It is a square type micro dc Gear Motor.

Like 65mm dc spur gearbox, this kind of Micro Metal Gear Motor is closed type, so it has a good sound performance while loading.

70mm dc gear motor refers to 70mm dc spur gear motor, including DM-70RS3525 micro metal dc gear motor, DM-70SS555 micro

metal gear motor and so on. These motors are usually applied on industrial equipments. Fingerprint lock is also one of the typical applications.

motor geared

Main voltage : 6VDC.12VDC.24VDC

Typical applications :

Instrument, Electric tools,Coffee machine,

Vending machine, Massager,Game machine,

Electric window opener,Automation equipment

motor reducer

Gearbox Data :

Number of stages	3	4	5
Reduction ratio	54.73	217.293	564.763
Gearbox length [L"mm	15	15	15
Breaking torque(kgf.cm)	30	50	100
Gearbox efficiency	73%	65%	59%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-3525-012-3000	12	≤40	3000	≤170	2200	25	0.6	≥120	≥600
DM-3525-012-4500	12	≤60	4500	≤250	3300	35	1.2	≥180	≥900
DM-3525-012-6000	12	≤100	6000	≤450	4500	45	2.1	≥200	≥1300
DM-3525-024-3000	24	≤25	3000	≤80	2200	25	0.6	≥100	≥300
DM-3525-024-4500	24	≤30	4500	≤130	3300	35	1.2	≥180	≥450
DM-3525-024-6000	24	≤50	6000	≤170	4500	45	2.1	≥250	≥700

Geared Motor Samples Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-70SS352501211000-217K	12	0.38	44.0	1.03	31.9	11.40	3.733	41.47	2.77
DM-70SS35250129500-564K	12	0.34	14.9	1.04	11.1	32.03	3.648	124.77	3.06

Curve Chart :

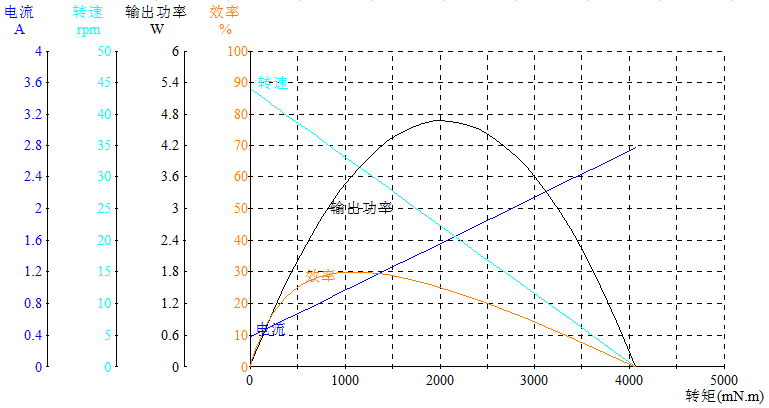

Model: DM-70SS352501211000-217K

DM-70SS3525-2

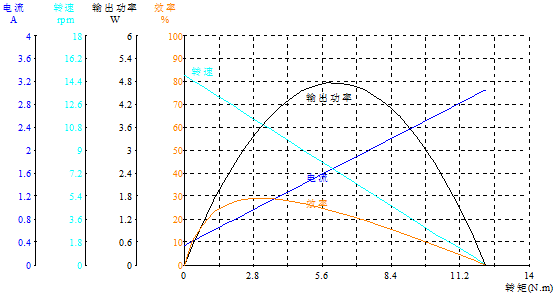

Model: DM-70SS35250129500-564K

DM-70SS3525-3

Remark:

Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio

Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...

Welcome OEM or ODM projects
