low speed dc gear motor

USD15

5-4999 Piece/Pieces
USD5

≥5000 Piece/Pieces

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB, CIF

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 35 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Hongkong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	200000pc per month
Supply Ability:	2000000pc annual
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CIF
Certificate:	CE, Rohs, FCC
HS Code:	8501109990
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Hongkong

Product Description

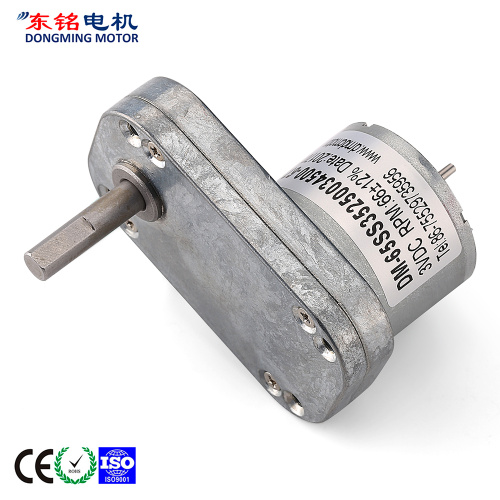

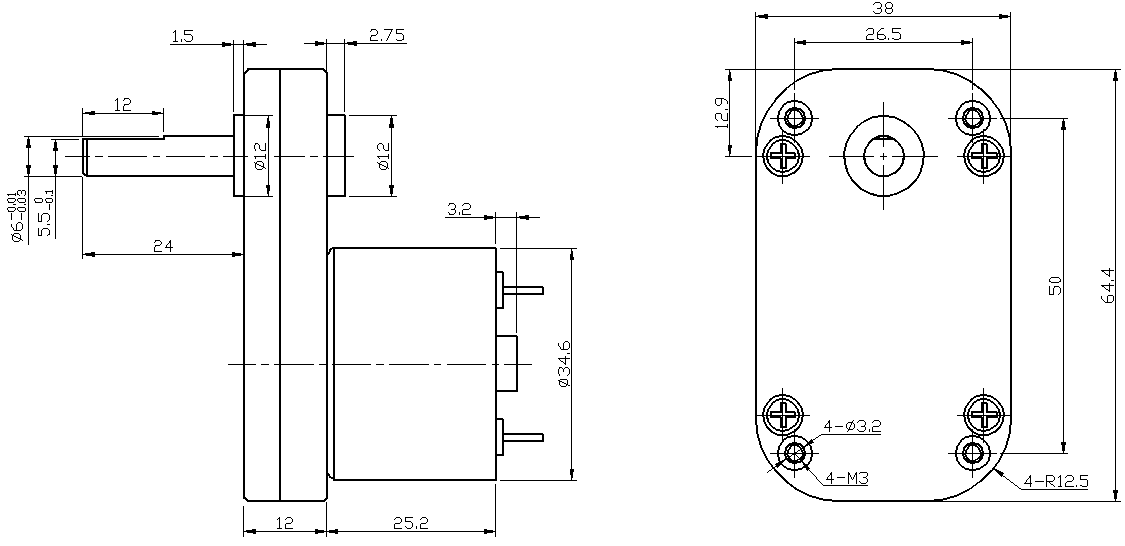

DM-65SS3525 DC SPUR GEAR MOTOR

For a 65mm dc spur gear motor, it contains a 65mm*38mm gearbox and a Gearhead Dc Motor.Regarding the Gearmotor 12v Dc, we have about 6 gear ratios for option.

Stages refers to the numers of stages in the gearbox. For 65mm gearbox, it has at least 3 stages. According to the gears modules in each stage, it decide the gear ratios.

In the same stage, if the voltage and the driving motor speed is fixed, the biger the gear ratios, the lower the output speed is. The lower the output speed is, the bigger the rated torque is.

parallel shaft gearbox

Main voltage : 6VDC.12VDC.24VDC

Typical applications

Instrument, Electric tools,Coffee machine,

Vending machine, Massager,Game machine,

Electric window opener,Automation equipment

pm dc motor

Gearbox Data :

Number of stages	3	4	5
Reduction ratio	40.5.67.5	135.225	450
Gearbox length [L"mm	12	12	12
Breaking torque(kgf.cm)	10	25	35
Gearbox efficiency	73%	65%	59%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-3525-012-3000	12	≤40	3000	≤170	2200	25	0.6	≥120	≥600
DM-3525-012-4500	12	≤60	4500	≤250	3300	35	1.2	≥180	≥900
DM-3525-012-6000	12	≤100	6000	≤450	4500	45	2.1	≥200	≥1300
DM-3525-024-3000	24	≤25	3000	≤80	2200	25	0.6	≥100	≥300
DM-3525-024-4500	24	≤30	4500	≤130	3300	35	1.2	≥180	≥450
DM-3525-024-6000	24	≤50	6000	≤170	4500	45	2.1	≥250	≥700

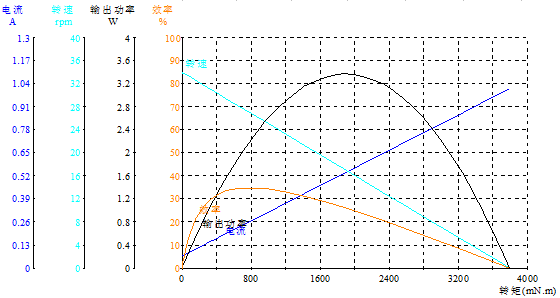

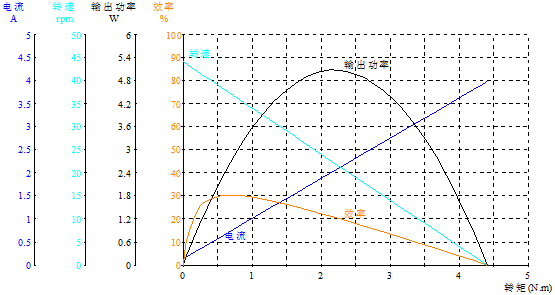

Geared Motor Samples Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-65SS35250248000-225K	24	0.067	34	0.269	26.7	8.2722	2.268	38	1.011
DM-65SS352501211000-225K	12	0.132	44.1	0.766	36.8	7.4052	2.8	44	3.975
