Product Description

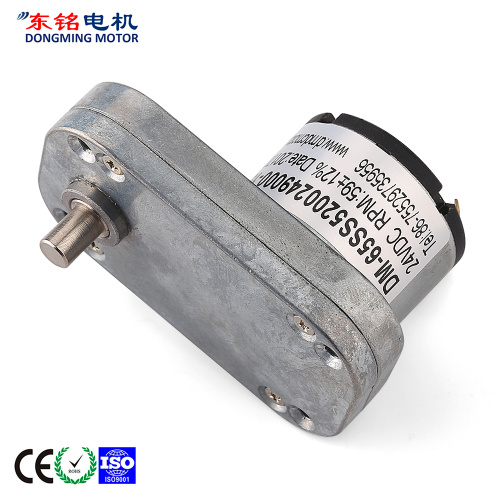

DM-65SS520 DC SPUR GEAR MOTOR

DM-65SS520 Dc Spur Gear Motor is the smallest Geared Dc Motors in all 65mm Dc Spur Gear Motor. Even though this kind of gearbox has only 5 kinds of gear ratios in three stage for option, it is a very popular kind of dc spur gear motor for some engineer. The main reason is its sound performance, as well as the design. The Geared Dc Motor with encoder sometimes is used on door lock or door opener.

reduction gear boxes

Main voltage : 6VDC.12VDC.24VDC

Typical applications :

Instrument, Electric tools,Coffee machine,

Vending machine, Massager,Game machine,

Electric window opener,Automation equipment

reducer motor

Gearbox Data :

Number of stages	3	4	5
Reduction ratio	40.5.67.5	135.225	450
Gearbox length [L"mm	12	12	12
Breaking torque(kgf.cm)	10	25	35
Gearbox efficiency	73%	65%	59%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-520-012-3000	12	≤20	3000	≤110	2200	25	0.6	≥100	≥400
DM-520-012-4500	12	≤30	4500	≤150	3300	35	1.2	≥140	≥850
DM-520-012-6000	12	≤40	6000	≤400	4500	45	2.1	≥180	≥1400
DM-520-024-3000	24	≤15	3000	≤60	2200	25	0.6	≥100	≥200
DM-520-024-4500	24	≤20	4500	≤80	3300	35	1.2	≥140	≥420
DM-520-024-6000	24	≤30	6000	≤200	4500	45	2.1	≥180	≥700

Geared Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-65SS52000310000-40.5K	3.00	0.42	231.6	1.56	175.5	0.92	1.65	3.78	5.13
DM-65SS52000310000-67.5K	3.00	0.73	131.7	2.11	94.3	2.02	1.95	7.10	5.58
DM-65SS5200123500-225K	12.00	0.02	15.1	0.14	13.3	5.14	0.70	43.35	1.04
DM-65SS5200124500-225K	12.00	0.05	19.8	0.22	16.5	6.96	1.18	41.35	1.03
DM-65SS5200125500-450K	12.00	0.05	12.0	0.23	9.7	10.31	1.03	54.55	1.01
DM-65SS5200128000-135K	12.00	0.24	52.6	0.67	39.3	6.57	2.65	25.90	1.94
DM-65SS52001210000-225K	12.00	0.14	43.2	0.50	33.7	6.81	2.36	30.95	1.77
DM-65SS5200244500-450K	24.00	0.02	9.2	0.08	7.1	7.60	0.56	33.00	0.29
DM-65SS5200245500-450K	24.00	0.04	11.6	0.17	9.0	10.92	1.01	48.77	0.60
