3v dc worm gear motor

USD10

5-999 Piece/Pieces
USD5

≥1000 Piece/Pieces

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB, CIF

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 35 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Hongkong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	200000pc per month
Supply Ability:	2000000pc annual
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CIF
Certificate:	CE, Rohs, FCC
HS Code:	8501109990
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Hongkong

Product Description

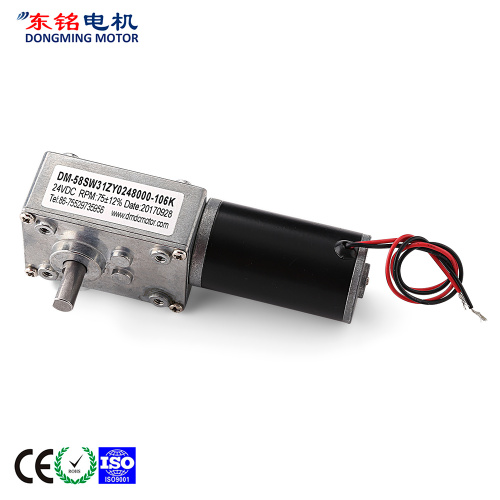

DM-58SW31ZY DC WORM GEAR MOTOR

58mm Dc Worm Gear Motor contains DM-58SW31ZY 24v Dc Worm Gear Motor and DM-58SW555 24v Worm Gear Motor.

58mm Dc Gear Motor worm is usually applied on Range Hood, Tv Holder and other equipment with a lower speed. And it is also with self-lock function.

58mm dc gear motor refers to 58mm dc worm gear motor. DM-58SW31ZY is the first worm gear motor we produced.

Some customer request the gear motor with self-lock function, then we start to develop worm gear motor.

gearbox electric dc motor

Main voltage : 6VDC.12VDC.24VDC

Typical applications :

Game machine, Vending machine, Window power

supply, Office equipment, Household appliance,

Automation equipment.

gearbox manufacturer

Gearbox Data :

Number of stages	3	4
Reduction ratio	49.74.101.218.290	505.634
Gearbox length [L"mm	34	34
Breaking torque(kgf.cm)	15	35
Gearbox efficiency	40%	36%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-31ZY-012-3000	12	≤100	3000	≤400	2200	90	2.0	360	1600
DM-31ZY-012-4500	12	≤150	4500	≤700	3300	130	4.4	520	2700
DM-31ZY-012-6000	12	≤220	6000	≤1200	4500	180	8.3	720	5000
DM-31ZY-024-3000	24	≤60	3000	≤200	2200	90	2.0	360	800
DM-31ZY-024-4500	24	≤90	4500	≤350	3300	130	4.4	520	1300
DM-31ZY-024-6000	24	≤130	6000	≤650	4500	180	8.3	720	2600

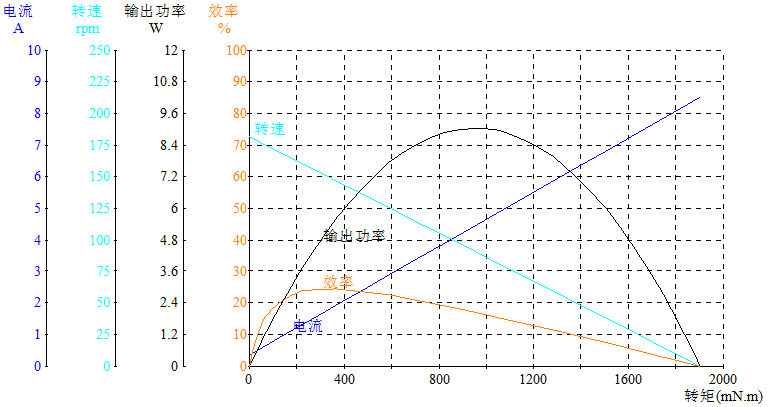

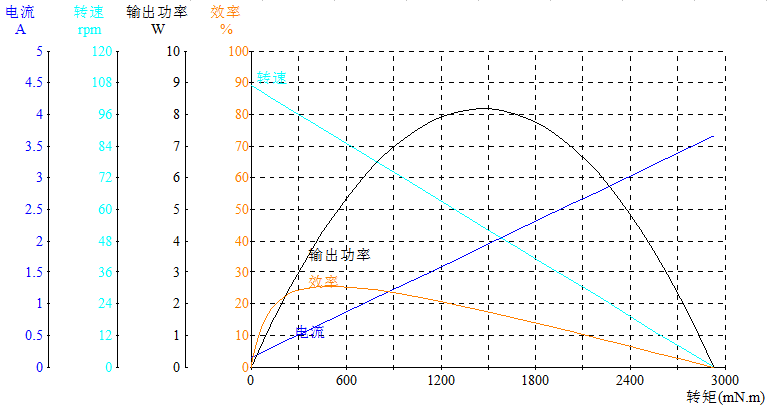

Geared Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-58SW31ZY0129000-49K	12	0.361	181.5	1.932	146.5	3.7	5.64	19	8.517
DM-58SW31ZY0248000-74K	24	0.153	106.9	0.826	86.4	5.7	5.093	29.9	3.659
