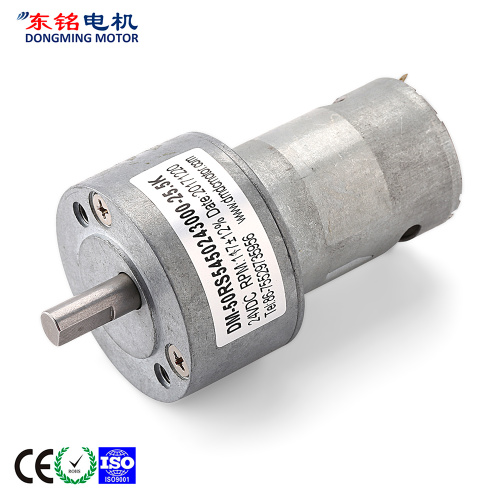

DM-50RS545 DC SPUR GEAR MOTOR

50mm dc spur gear motor is including DM-50RS545 Gear Motor with Encoder and DM-50RS555 Gearbox Dc Motor 12v.

50mm dc gear motor is similar with 37mm in shape, they both has a round gearbox with an out of centre shaft.

These Gearbox Dc motor are sometimes used on industry machines. In most situations, we would prefer to suggest customers to use

37mm dc spur gear motr instead of 50mm dc spur gear motor. On one hand, we have produced 37GB for more than 6 years,

and able to deal with any issues we met. The performance is stable. On the other hand, it is more economic.

DM-50RS545-1

Main voltage :12VDC.24VDC

Typical applications :

Instrument, Electric tools,Coffee machine,

Vending machine, Massager,Game machine,

Electric window opener,Automation equipment

12v reduction motor

Gearbox Data :

Number of stages	2	3	4	5
Reduction ratio	9	21.25.5	50.60.72	118.141.170.205
Gearbox length [L"mm	20.4	24.9	29.4	33.9
Breaking torque(kgf.cm)	25	30	90	90
Gearbox efficiency	81%	72%	65%	59%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-545-012-3000	12	≤110	3000	≤450	2200	100	2.3	≥320	≥1440
DM-545-012-4500	12	≤220	4500	≤800	3300	150	5.1	≥480	≥2400
DM-545-012-6000	12	≤350	6000	≤1500	4500	200	9.2	≥640	≥4400
DM-545-024-3000	24	≤60	3000	≤230	2200	100	2.3	≥320	≥720
DM-545-024-4500	24	≤110	4500	≤400	3300	150	5.1	≥480	≥1200
DM-545-024-6000	24	≤150	6000	≤750	4500	200	9.2	≥640	≥2400

Geared Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-50RS5450123000-50K	12	0.189	56.4	0.534	41.8	4	1.926	17	1.523
DM-50RS5450243000-50K	24	0.103	54.5	0.358	42	6	2.666	26	1.215

Curve Chart :

Model: DM-50RS5450123000-50K

DM-50RS545-2

Model: DM-50RS5450243000-50K

DM-50RS545-3

Remark:

Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio

Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...

Welcome OEM or ODM projects
