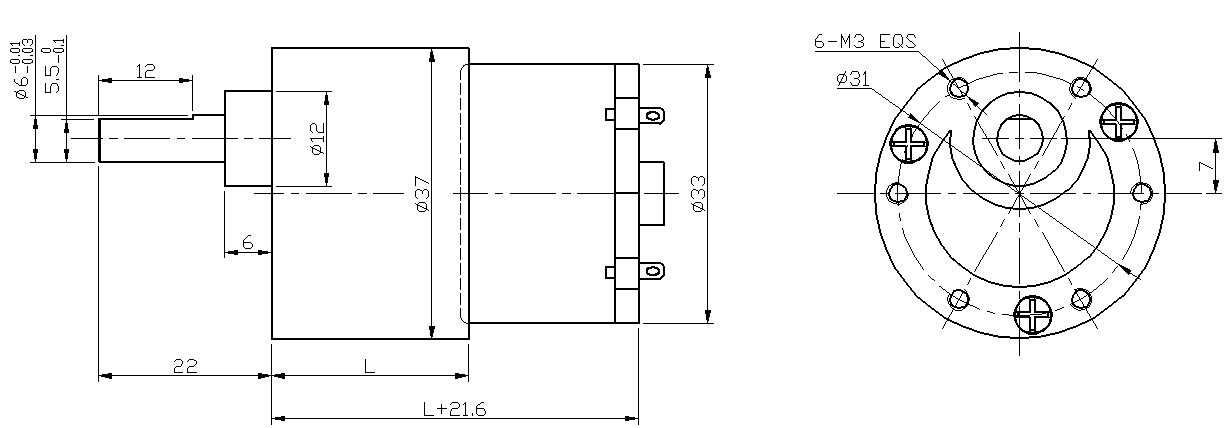

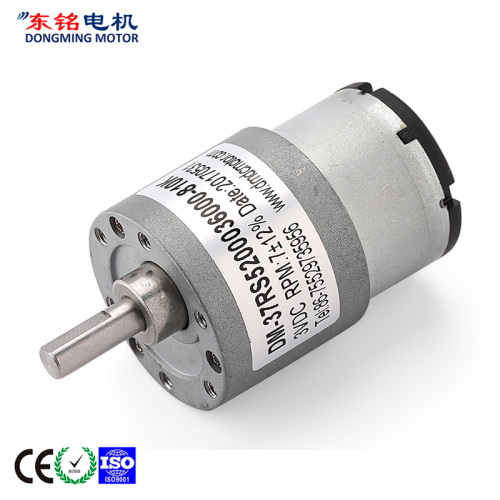

DM-37RS520 DC SPUR GEAR MOTOR

37mm Dc Spur Gear Motor contains electric gear motor. Regarding DM-37RS520, the dc motor part is DM-520 dc motor while the electric dc gear motor part is 37GB.

37GB door lock motor including 6 different stages. Every stage has different gear ratios.

Dc Motor and Gearbox is two part, but usually they come together. Dc motor including rator, stator and different wires. Gearbox is made up of different gears in different structure.

They work together to make the item to move or rotate.

24volt dc gearbox motor

Main voltage : 6VDC.12VDC.24VDC

Typical applications :

Instrument, Electric tools,Coffee machine,

Vending machine, Massager,Game machine,

Electric window opener,Automation equipment

dc micro gear motors

Gearbox Data :

Number of stages	2	3	4	5	6	7
Reduction ratio	6.8.10	20.30	61.90	122.184.270	311.414.534 552.810	1243.1656 2430
Gearbox length [L"mm	19	22.5	25	27.5	30	31.5
Breaking torque(kgf.cm)	8	10	30	30	40	40
Gearbox efficiency	81%	73%	65%	59%	53%	48%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-520-012-3000	12	≤20	3000	≤110	2200	25	0.6	≥100	≥400
DM-520-012-4500	12	≤30	4500	≤150	3300	35	1.2	≥140	≥850
DM-520-012-6000	12	≤40	6000	≤400	4500	45	2.1	≥180	≥1400
DM-520-024-3000	24	≤15	3000	≤60	2200	25	0.6	≥100	≥200
DM-520-024-4500	24	≤20	4500	≤80	3300	35	1.2	≥140	≥420
DM-520-024-6000	24	≤30	6000	≤200	4500	45	2.1	≥180	≥700

Geared Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-37RS5200063000-121K	6.0	0.06	24.2	0.23	18.4	2.12	0.40	8.90	0.76
DM-37RS5200123000-270K	12.0	0.02	11.9	0.10	9.6	4.83	0.48	25.53	0.45
DM-37RS5200123000-310K	12.0	0.02	10.1	0.10	8.0	5.10	0.42	24.28	0.39
DM-37RS5200124500-184K	12.0	0.04	25.7	0.19	21.2	3.80	0.83	21.00	0.91
DM-37RS5200124500-552K	12.0	0.04	8.3	0.16	6.9	9.79	0.69	55.97	0.76
DM-37RS5200125500-552K	12.0	0.04	9.6	0.21	8.0	10.24	0.84	60.99	1.05
DM-37RS5200126000-21K	12.0	0.06	276.9	0.30	221.8	0.61	1.38	3.06	1.25
DM-37RS5200126000-61K	12.0	0.11	90.3	0.39	68.4	2.34	1.64	9.64	1.25
DM-37RS5200126000-90K	12.0	0.06	64.9	0.24	51.9	2.12	1.13	10.56	0.94
DM-37RS5200126000-552K	12.0	0.07	10.9	0.29	9.0	15.63	1.44	86.55	1.33
DM-37RS52002411000-184K	24.0	0.07	58.4	0.41	49.5	5.10	2.59	33.54	2.27
DM-37RS5200243000-61K	24.0	0.02	42.4	0.05	29.9	0.94	0.29	3.17	0.13
DM-37RS5200245500-30K	24.0	0.02	178.6	0.12	148.0	0.70	1.07	4.10	0.57
DM-37RS5200246000-10K	24.0	0.04	550.6	0.17	455.5	0.38	1.78	2.20	0.78
DM-37RS5200246000-61K	24.0	0.04	92.7	0.13	79.0	1.49	1.21	10.08	0.71
DM-37RS5200246000-184K	24.0	0.05	30.2	0.19	22.9	5.93	1.40	24.81	0.62
DM-37RS5200248600-270K	24.0	0.05	30.2	0.22	24.2	7.94	1.97	39.64	0.90
