small motor with gearbox

USD15

5-999 Piece/Pieces
USD6

≥1000 Piece/Pieces

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 35 Days

Transportation:: Ocean, Land, Air

Port:: Hongkong, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	200000pc per month
Supply Ability:	2000000pc annual
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB
Certificate:	CE, Rohs, FCC
HS Code:	8501109990
Transportation:	Ocean,Land,Air
Port:	Hongkong,Shenzhen

Product Description

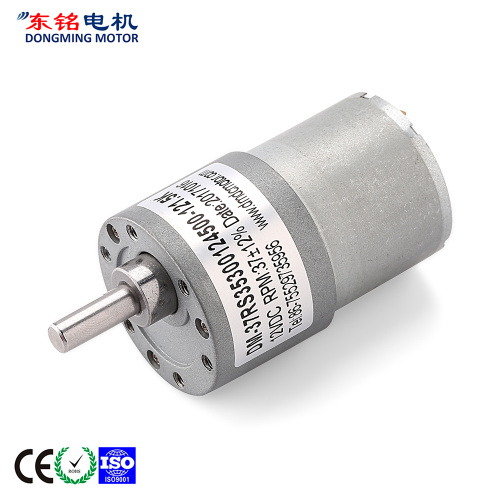

DM-37RS3530 DC SPUR GEAR MOTOR

Customer request a Gear Motor 200 Rpm, firstly to know 200rpm is load speed or free load speed is very important.

Then we need to know the working voltage, like a Gear Motor 24v. By knowing these two factors, we still have many solutions.

So finally we also need to know if customer have request about the size or the rated torque.

Like the customer might need a gear motor no bigger than 40mm. Then 37mm dc gear motor would be a good choice.

12v dc gear motor high torque

Main voltage : 6VDC.12VDC.24VDC

Typical applications :

Instrument, Electric tools,Coffee machine,

Vending machine, Massager,Game machine,

Electric window opener,Automation equipment

dc motor 24v geared 100rpm

Gearbox Data :

Number of stages	2	3	4	5	6	7
Reduction ratio	6.8.10	20.30	61.90	122.184.270	311.414.534 552.810	1243.1656 2430
Gearbox length [L"mm	19	22.5	25	27.5	30	31.5
Breaking torque(kgf.cm)	8	10	30	30	40	40
Gearbox efficiency	81%	73%	65%	59%	53%	48%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-3530-012-3000	12	≤40	3000	≤240	2200	40	0.9	≥160	≥700
DM-3530-012-4500	12	≤60	4500	≤450	3300	50	1.7	≥300	≥1400
DM-3530-012-6000	12	≤90	6000	≤700	4500	60	2.8	≥350	≥2000
DM-3530-024-3000	24	≤20	3000	≤150	2200	40	0.9	≥160	≥400
DM-3530-024-4500	24	≤30	4500	≤230	3300	50	1.7	≥220	≥600
DM-3530-024-6000	24	≤45	6000	≤360	4500	60	2.8	≥330	≥900

Geared Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-37RS35300068000-61K	6.0	0.19	126.0	0.78	103.7	1.51	1.60	8.50	3.54
DM-37RS35300123000-270K	12.0	0.03	10.1	0.14	8.5	6.86	0.60	41.60	0.73
DM-37RS35300123000-310K	12.0	0.04	8.7	0.14	6.9	7.63	0.54	35.94	0.52
DM-37RS35300123000-61K	12.0	0.02	44.3	0.10	36.5	1.32	0.49	7.44	0.47
DM-37RS35300123000-810K	12.0	0.06	3.3	0.15	2.4	16.43	0.41	59.75	0.41
DM-37RS35300123000-90K	12.0	0.03	33.2	0.13	26.6	2.12	0.58	10.66	0.54
DM-37RS35300124500-270K	12.0	0.06	16.4	0.23	13.6	7.25	1.01	41.69	1.08
DM-37RS35300124500-310K	12.0	0.07	13.7	0.33	11.1	13.11	1.50	69.91	1.49
DM-37RS35300125500-90K	12.0	0.03	58.2	0.22	50.9	2.09	1.09	16.81	1.56
DM-37RS35300126000-30K	12.0	0.09	208.0	0.40	176.3	1.16	2.10	7.64	2.14
DM-37RS35300126000-61K	12.0	0.04	92.3	0.26	78.5	1.72	1.39	11.58	1.55
DM-37RS35300126000-90K	12.0	0.04	63.5	0.24	53.2	2.50	1.34	15.00	1.25
DM-37RS35300126000-184K	12.0	0.06	31.4	0.33	26.3	5.73	1.55	35.02	1.70
DM-37RS35300129000-61K	12.0	0.09	149.3	0.48	128.9	1.96	2.60	14.37	2.96
DM-37RS35300129000-90K	12.0	0.08	100.7	0.46	86.7	2.71	2.41	19.45	2.79
DM-37RS35300129500-184K	12.0	0.19	50.1	0.78	38.7	8.15	3.24	36.02	2.80
DM-37RS35300243000-270K	24.0	0.03	10.4	0.08	7.5	6.05	0.47	21.69	0.21
DM-37RS35300244500-552K	24.0	0.02	9.1	0.09	7.1	10.40	0.76	47.08	0.34
DM-37RS35300246000-184K	24.0	0.04	34.1	0.19	28.7	4.91	1.44	30.72	0.98
DM-37RS35300246000-270K	24.0	0.05	21.8	0.20	18.4	10.46	1.97	65.41	1.04
DM-37RS35300246000-534K	24.0	0.04	10.9	0.22	9.4	19.70	1.90	137.00	1.37
DM-37RS35300247000-10K	24.0	0.04	699.2	0.23	603.7	0.45	2.79	3.29	1.45
DM-37RS35300249000-810K	24.0	0.06	11.1	0.30	9.7	28.19	2.79	216.87	1.93
