Product Description

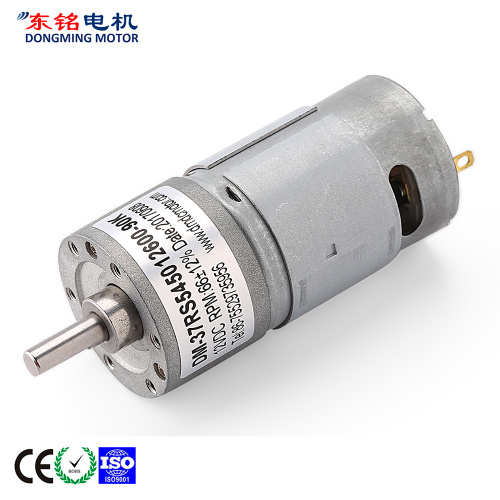

DM-37RS545 DC SPUR GEAR MOTOR

37mm Dc Spur Gear motor is also known as 37GB Dc Motor with Gear box,mainly including DM-37RS385 DM-37RS395 DM-37RS520 DM-37RS528 DM-37RS545 and

other 37mm dc motor with reducer. DC motor with Gearbox 24v means the driving motor is working under 24v dc.

We might meet this situation, the customer are satisfied with the 37mm gearbox size and gear ratios we recommend,

but the torque is not enough when we use DM-385 or DM-3540 micro dc motor, at this moment we can try to suggest

DM-37RS545 or DM-37RS555, at the same gear ratio, this motor could provide much more torque.

small gearmotor

Main voltage : 12VDC.24VDC

Typical applications :

Instrument, Electric tools,Coffee machine,

Vending machine, Massager,Game machine,

Electric window opener,Automation equipment

small high torque electric motor

Gearbox Data :

Number of stages	2	3	4	5	6	7
Reduction ratio	6.8.10	20.30	61.90	122.184.270	311.414.534 552.810	1243.1656 2430
Gearbox length [L"mm	19	22.5	25	27.5	30	31.5
Breaking torque(kgf.cm)	8	10	30	30	40	40
Gearbox efficiency	81%	73%	65%	59%	53%	48%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-545-012-3000	12	≤110	3000	≤450	2200	100	2.3	≥320	≥1440
DM-545-012-4500	12	≤220	4500	≤800	3300	150	5.1	≥480	≥2400
DM-545-012-6000	12	≤350	6000	≤1500	4500	200	9.2	≥640	≥4400
DM-545-024-3000	24	≤60	3000	≤230	2200	100	2.3	≥320	≥720
DM-545-024-4500	24	≤110	4500	≤400	3300	150	5.1	≥480	≥1200
DM-545-024-6000	24	≤150	6000	≤750	4500	200	9.2	≥640	≥2400

Geared Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-37RS5450123400-90K	12.00	0.18	36.5	0.79	28.6	11.99	3.52	55.1	2.98
DM-37RS5450124500-121K	12.00	0.23	37.1	0.95	28.7	16.00	4.85	72.0	3.42
DM-37RS5450124500-61K	12.00	0.21	72.6	0.93	58.1	7.08	4.22	35.3	3.77
DM-37RS5450125000-20K	12.00	0.18	244.2	0.89	198.4	2.37	4.82	12.6	3.94
DM-37RS5450126000-30K	12.00	0.29	196.1	1.58	159.4	5.28	8.64	28.2	7.20
DM-37RS5450126000-61K	12.00	0.39	96.8	1.61	76.8	9.47	7.47	45.9	6.33
DM-37RS5450126000-90K	12.00	0.23	64.2	1.37	54.5	12.00	6.71	79.5	7.82
DM-37RS5450243000-184K	24.00	0.05	15.8	0.24	13.1	13.80	1.86	82.0	1.15
DM-37RS5450244500-121K	24.00	0.09	37.3	0.46	31.4	11.19	3.61	70.9	2.45
DM-37RS5450244500-184K	24.00	0.09	23.8	0.48	19.8	21.64	4.39	128.6	2.44
DM-37RS5450246000-534K	24.00	0.14	11.3	0.69	9.2	57.25	5.43	317.8	3.21
