36mm brushless dc motor with planetary gearbox

USD50

5-999 Piece/Pieces
USD25

≥1000 Piece/Pieces

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB, CIF

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 45 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Hongkong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	200000pc per month
Supply Ability:	2000000pc annual
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CIF
Certificate:	CE, Rohs, FCC
HS Code:	8501109990
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Hongkong

Product Description

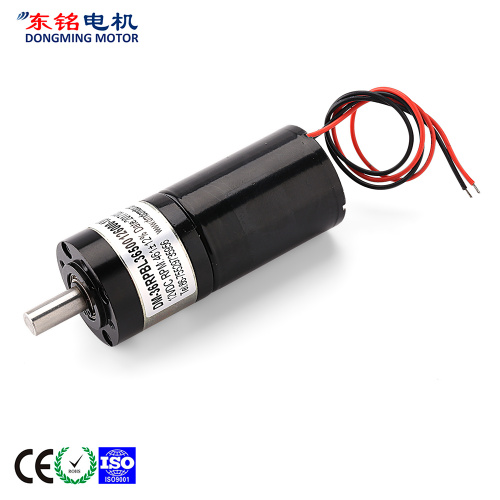

DM-36RPBL3650 DC BRUSHLESS PLANETARY GEAR MOTOR

For brushless dc motor with encoder, the working voltage is normally from 12v-24v. It is different from other types dc gear motor, it is very difficult for other motors with a high speed. But for brushless motor, a brushless dc motor rpm is easily seen on products. Also brushless dc gearmotors is a typical used specification.

gear box motor

Main voltage : 12VDC.24VDC

Typical applications :

Optical instrument, Surveillance cameras, Automated

energy efficiency, Water saving equipment, IC water

card, Toys and gifts, Office equipment, Household

appliance, automation equipment.

gear box with dc motor

Gearbox Data :

Number of stages	1	2	3	4	5
Reduction ratio	3.7.5.2	14.19.27	51.71 100.139	189.264.369.515.721	977.1367.1910.2671.3736
Gearbox length [L"mm	26.5	34.5	42.5	50.5	58.5
Breaking torque(kgf.cm)	10	18	40	50	60
Gearbox efficiency	90%	81%	73%	65%	59%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-BL3650-012-3000	12	≤170	3000	≤775	2400	100	2.5	≥510	≥2340
DM-BL3650-012-4500	12	≤260	4500	≤1160	3300	150	5.1	≥768	≥3520
DM-BL3650-012-6000	12	≤340	6000	≤1550	4500	200	9.2	≥1020	≥4680
DM-BL3650-024-3000	24	≤140	3000	≤600	2400	100	2.5	≥510	≥1200
DM-BL3650-024-4500	24	≤210	4500	≤900	3300	150	5.1	≥768	≥1760
DM-BL3650-024-6000	24	≤280	6000	≤1200	4500	200	9.2	≥1020	≥2400

Geared Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-36RPBL36500093000-264K	9	0.148	11.3	0.455	8.3	13	1.116	49	1.320
DM-36RPBL36500128000-369K	12	0.438	22.0	1.837	17.1	41	7.240	186	6.759
