33mm 6v 12v 15rpm automation product gear motor

DM-33RS3540 33mm 6v 12v 15rpm automation product gear motor

Typical applications : Instrument, Digital product, Automatic door-lock, Medical equipments, Security monitoring

Appearance size:

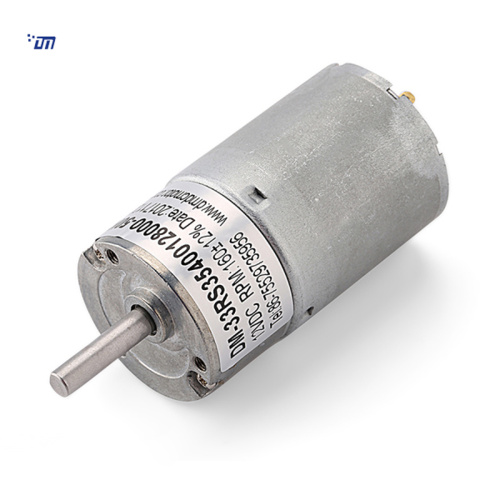

Product picture:

Gearbox Data:

Number of stages	3	4	5	6	7
Reduction ratio	20	50	125	312.5	781
Gearbox length [L"mm	17.7	19.9	22.2	24.4	26.75
Breaking torque(kgf.cm)	10	15	20	24	24
Gearbox efficiency	73%	65%	59%	53%	48%

Driving Motor Data:

Motor model	Rated Volt.	No load		Load				Stall
		Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-3540-012-3000	12	≤50	3000	≤300	2200	60	1.4	≥240	≥800
DM-3540-012-4500	12	≤70	4500	≤500	3300	70	2.4	≥500	≥2000
DM-3540-012-6000	12	≤100	6000	≤700	4500	80	3.7	≥600	≥2500
DM-3540-024-3000	24	≤25	3000	≤150	2200	60	1.4	≥220	≥500
DM-3540-024-4500	24	≤35	4500	≤250	3300	70	2.4	≥240	≥800
DM-3540-024-6000	24	≤50	6000	≤350	4500	80	3.7	≥550	≥1400

Geared Motor Samples Data:

Motor model	Rated Volt.	No load		Load				Stall
		Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-33RS35400067500-90K	6.0	0.35	81.5	1.35	65.9	3.2	2.16	16.7	5.61
DM-33RS35400067500-125K	6.0	0.25	56.0	1.10	43.7	4.5	2.01	20.4	4.16
DM-33RS35400128000-50K	12.0	0.08	156.4	0.52	138.7	2.0	2.89	18.0	3.97

Curve Chart:

Model: DM-33RS35400067500-90K

Model: DM-33RS35400128000-50

Remark:

Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio

Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...

Welcome OEM or ODM projects
