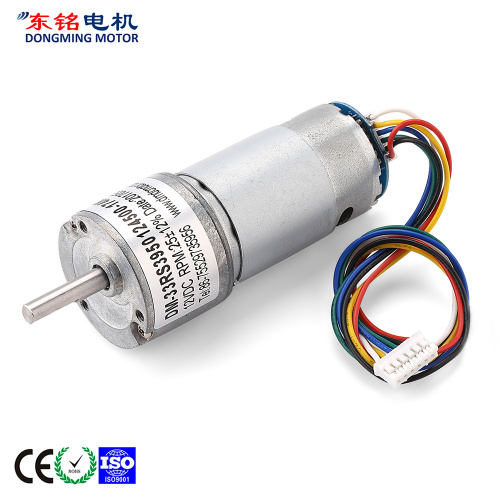

DM-33RS395 DC SPUR GEAR MOTOR

33mm DC Gear Motor is including DM-33RS385 6v Gear Motor, DM-33RS395 6v Dc Geared Motor and DM-33RS520 6v Gear Motor etc.

These motors are usually used on window shutters, roller blind and other automatic products.

Different with 32mm dc spur gear motor, 33mm spur gearbox has a out-centre output shaft.

In order to make full use of the gearbox space, we design the output shaft out of centre.

Usually we assemble the gear motor in the products by using the holes on the gearbox housing.

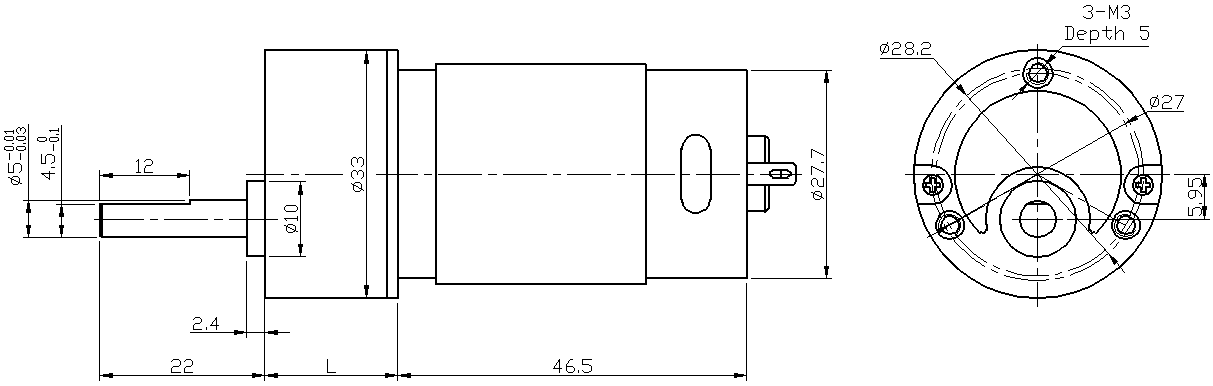

As the following notice, there are 3 M3 holes . These are for assembling use.

geared motor dc 12v

Main voltage :12VDC.24VDC

Typical applications :

Instrument, Electric tools,Coffee machine,

Vending machine, Massager,Game machine,

Electric window opener,Automation equipment

geared motor dc 24v

Gearbox Data :

Number of stages	3	4	5	6	7
Reduction ratio	20	50	125	312.5	781
Gearbox length [L"mm	17.7	19.9	22.2	24.4	26.75
Breaking torque(kgf.cm)	10	15	20	24	24
Gearbox efficiency	73%	65%	59%	53%	48%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-395-012-3000	12	≤60	3000	≤250	2200	65	1.5	≥208	≥740
DM-395-012-4500	12	≤90	4500	≤430	3300	80	2.7	≥410	≥1700
DM-395-012-6000	12	≤130	6000	≤750	4800	100	4.9	≥510	≥2800
DM-395-024-3000	24	≤40	3000	≤120	2200	65	1.5	≥220	≥380
DM-395-024-4500	24	≤60	4500	≤220	3300	80	2.7	≥360	≥820
DM-395-024-6000	24	≤80	6000	≤380	4800	100	4.9	≥580	≥1700

Geared Motor Samples Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-33RS3950127600-90K	12	0.167	85.7	0.796	70	5	4.098	31	3.604
DM-33RS3950246000-312.5K	24	0.078	19.1	0.373	15.4	20	3.202	104	1.595

Curve Chart :

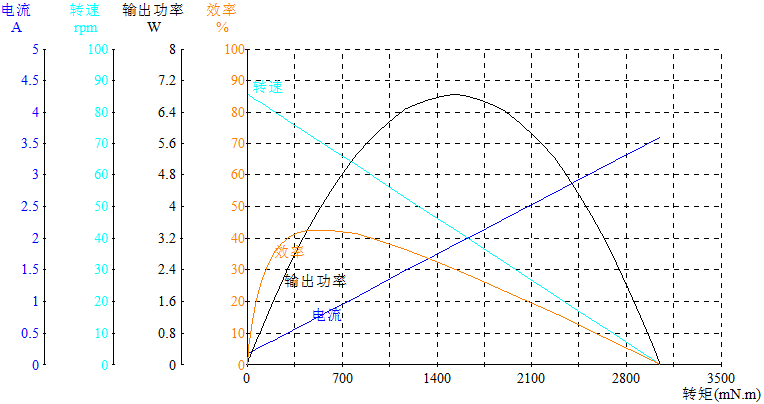

Model: DM-33RS3950127600-90K

DM-33RS395-2

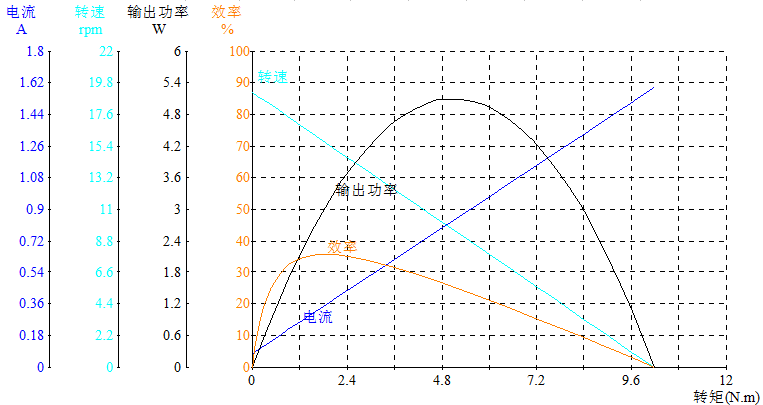

Model: DM-33RS3950246000-312.5K

DM-33RS395-3

Remark:

Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio

Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...

Welcome OEM or ODM projects
