dc gear motor 12v 10rpm

dc gear motor 12v 10rpm

dc gear motor 12v 10rpm

USD15

5-999 Piece/Pieces
USD6

≥1000 Piece/Pieces

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 35 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Hongkong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Basic Info

Place of Origin:	Shenzhen
Productivity:	200000pc per month
Supply Ability:	2000000pc annual
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB
Certificate:	CE, Rohs, FCC
HS Code:	8501109990
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Hongkong

Product Description

Product Description

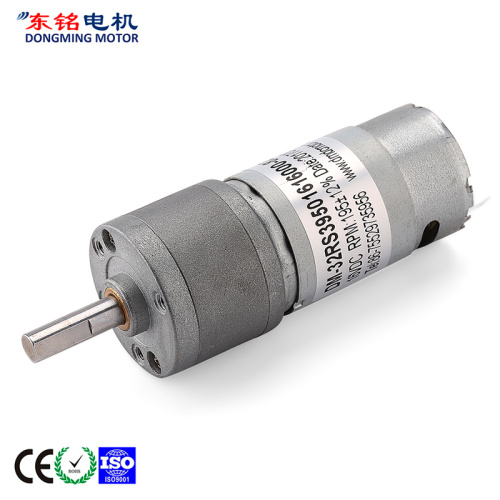

DM-32RS395 DC SPUR GEAR MOTOR

12 volt dc gear motor is including 12 volt gear motor and 12 volt motors with gear reduction.

32mm dc gear motor includes 32mm dc spur gear motor and 32mm dc planetary gear motor.

For 32mm dc spur gear motor, DM-32RS385 and DM-32RS395 dc gear motor are typical models.

Different with 33mm or 37mm dc spur gear motor, 32mm gearbox has a central output shaft.

Sometimes customer might like the specification of 37mm spur gear motor, but they do not like the out-centrer shaft,

then we might suggest 32mm dc gear motor for testing.

DM-32RS395-1

Main voltage :12VDC.24VDC

Typical applications :

Instrument, Electric tools,Coffee machine,

Vending machine, Massager,Game machine,

Electric window opener,Automation equipment

DM-32RS395

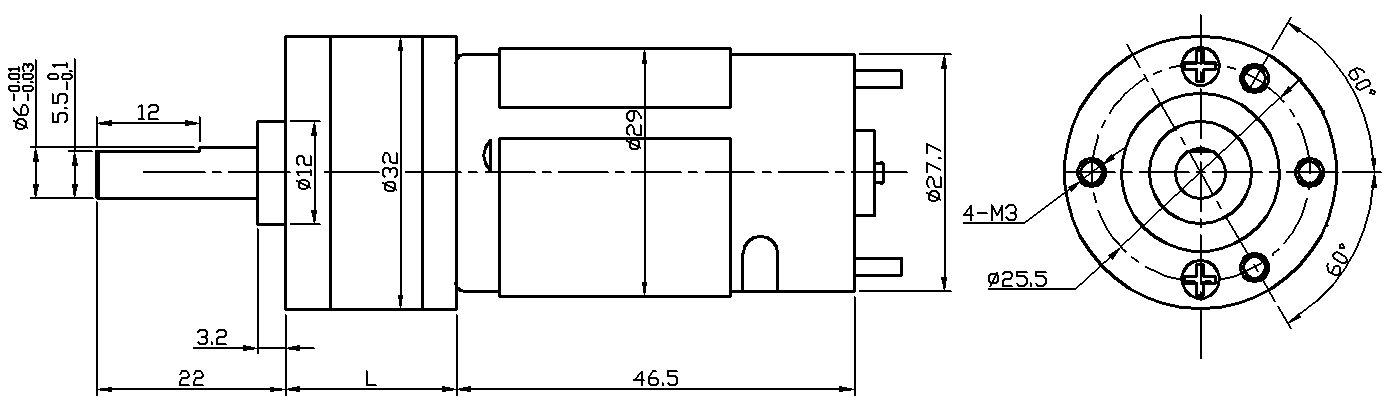

Gearbox Data :

Number of stages	2	3	4	5	6	7
Reduction ratio	5.75	13.15	28.32.38	61.71 82.96	135.156.181 211.245	296.344.400 464.540.627
Gearbox length [L"mm	17.5	20	22.5	25	27.5	30
Breaking torque(kgf.cm)	8	10	15	20	24	24
Gearbox efficiency	81%	73%	65%	59%	53%	48%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-395-012-3000	12	≤60	3000	≤250	2200	65	1.5	≥208	≥740
DM-395-012-4500	12	≤90	4500	≤430	3300	80	2.7	≥410	≥1700
DM-395-012-6000	12	≤130	6000	≤750	4800	100	4.9	≥510	≥2800
DM-395-024-3000	24	≤40	3000	≤120	2200	65	1.5	≥220	≥380
DM-395-024-4500	24	≤60	4500	≤220	3300	80	2.7	≥360	≥820
DM-395-024-6000	24	≤80	6000	≤380	4800	100	4.9	≥580	≥1700

Geared Motor Samples Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-32RS3950125800-61K	12	0.243	92.9	0.921	73.3	5	3.858	24	3.465
DM-32RS3950128000-71K	12	0.193	108.2	1.175	75.6	6.3	4.882	20	3.453

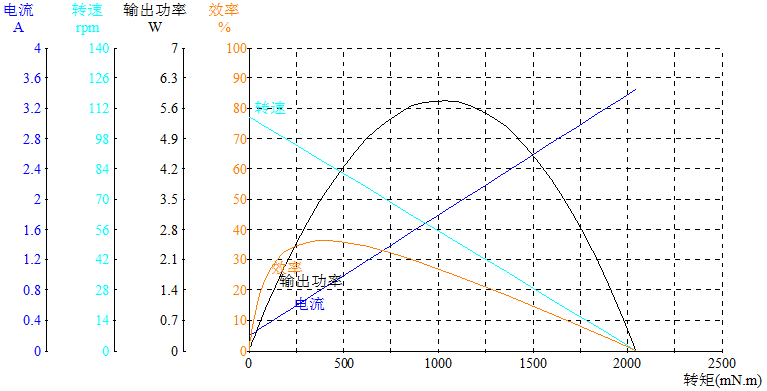

Curve Chart :

Model: DM-32RS3950125800-61K

DM-32RS395-2

Model: DM-32RS3950128000-71K

DM-32RS395-3

Remark:

Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio

Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...

Welcome OEM or ODM projects
