32mm 9v dc gear motor

USD10

5-4999 Bag/Bags
USD5

≥5000 Bag/Bags

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB, CIF

Min. Order:: 5 Bag/Bags

Min. Order:: 5 Bag/Bags

Delivery Time:: 35 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Hongkong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	200000pc per month
Supply Ability:	2000000pc annual
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CIF
Certificate:	CE, Rohs, FCC
HS Code:	8501109990
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Hongkong

Product Description

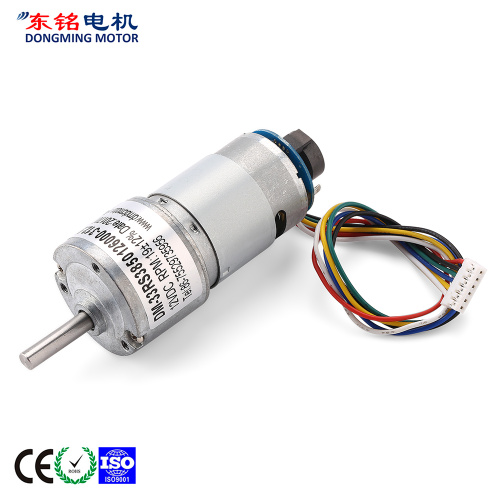

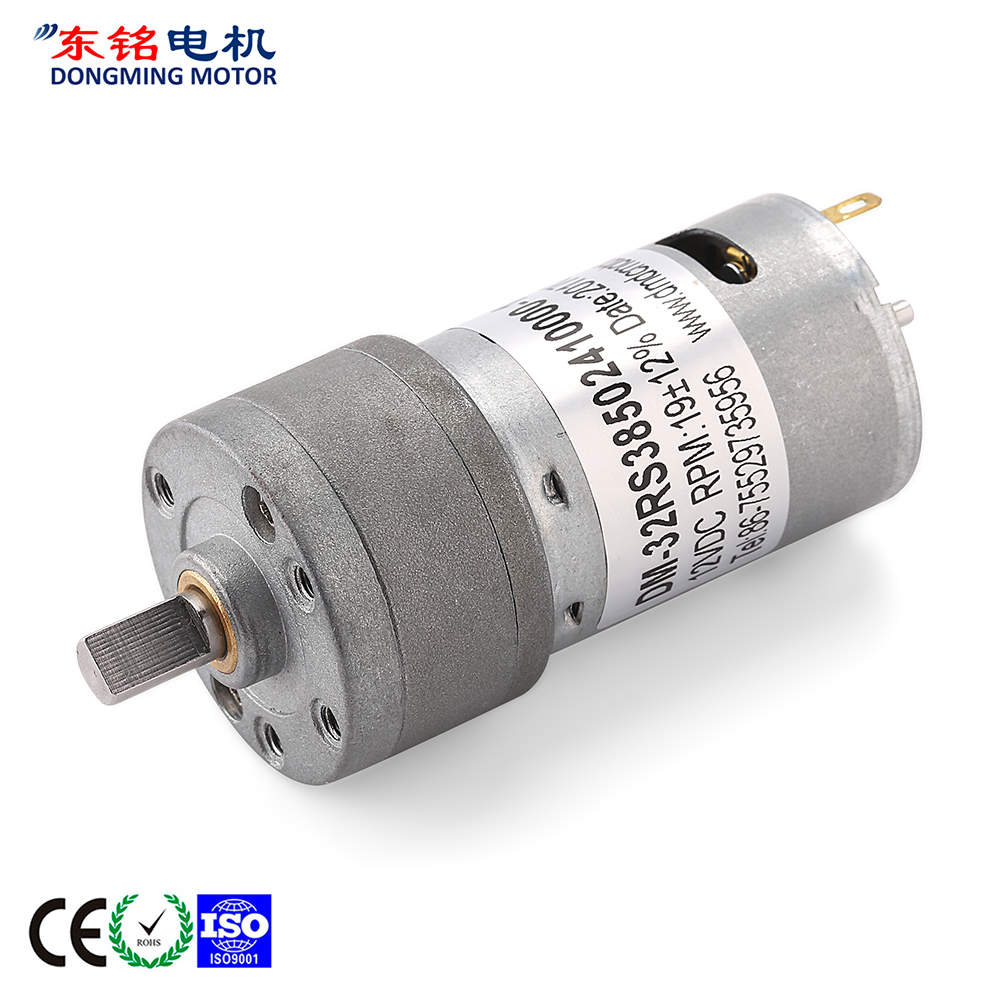

DM-32RS385 DC SPUR GEAR MOTOR

For a 32mm dc spur gear motor, the specification is fully customized. The customized parts including the working voltage, the rated speed, the rated torque and the shaft size. Regarding the rated speed, it could be both load speed and free load speed. For example, a customer might request a 10 Rpm Gear Motor, we can use a 6000rpm driving motor and a neary 600 gear ratios. Or a customer need a 100 Rpm 12v Dc Gear Motor, we can use the same driving motor speed, however, we choose a gear ratio like 60.

permanenterregter gleichstrommotor

Main voltage :12VDC.24VDC

Typical applications :

Instrument, Electric tools,Coffee machine,

Vending machine, Massager,Game machine,

Electric window opener,Automation equipment

Robot gear motor

Gearbox Data :

Number of stages	2	3	4	5	6	7
Reduction ratio	5.75	13.15	28.32.38	61.71 82.96	135.156.181 211.245	296.344.400 464.540.627

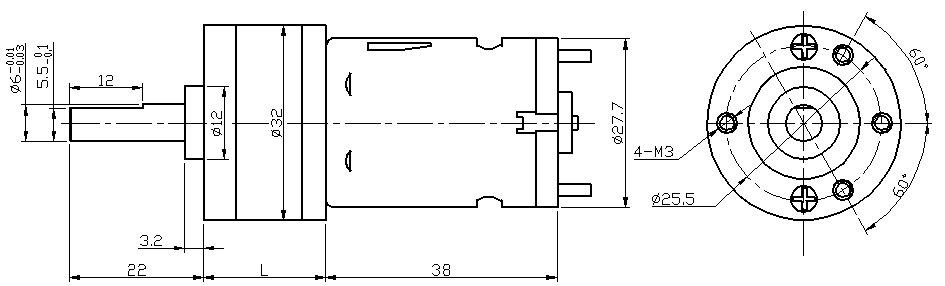

Gearbox length [L"mm	17.5	20	22.5	25	27.5	30
Breaking torque(kgf.cm)	8	10	15	20	24	24
Gearbox efficiency	81%	73%	65%	59%	53%	48%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-385-012-3000	12	≤60	3000	≤150	2200	35	0.8	≥110	≥360
DM-385-012-4500	12	≤70	4500	≤300	3300	55	1.9	≥210	≥960
DM-385-012-6000	12	≤100	6000	≤600	4500	80	3.7	≥280	≥1600
DM-385-024-3000	24	≤28	3000	≤70	2200	35	0.8	≥110	≥160
DM-385-024-4500	24	≤50	4500	≤150	3300	55	1.9	≥180	≥380
DM-385-024-6000	24	≤70	6000	≤300	4500	80	3.7	≥250	≥800

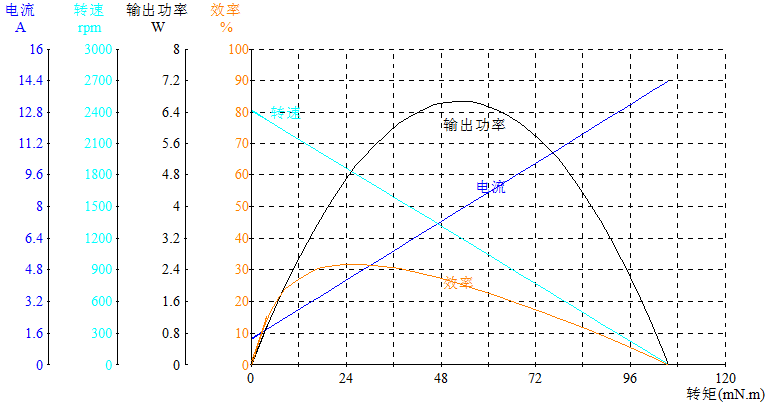

Geared Motor Samples Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-32RS3853.617000-5.75K	3.6	1.295	2415.4	4.572	1809.7	0.27	5.027	1.1	14.36
DM-32RS3850129000-82K	12	0.240	112.6	0.894	90.4	2．8	2.587	14	3.560
