30mm DC Gear Motor

USD10

5-999 Piece/Pieces
USD5

≥1000 Piece/Pieces

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB, CFR, CIF

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 35 Days

Transportation:: Ocean, Land, Air

Port:: Hongkong, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	200000pc per month
Supply Ability:	2000000pc annual
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF
Certificate:	CE, Rohs, FCC
HS Code:	8501109990
Transportation:	Ocean,Land,Air
Port:	Hongkong,Shenzhen

Product Description

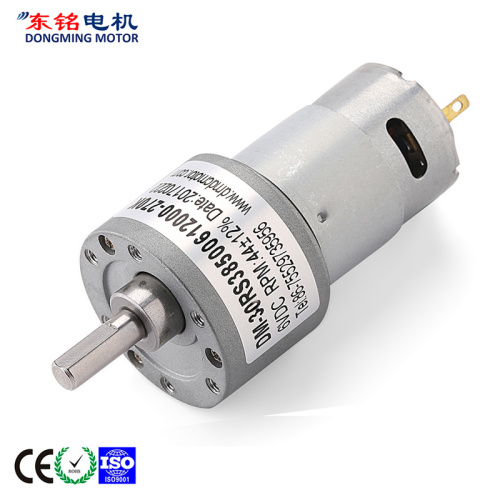

DM-30RS385 DC SPUR GEAR MOTOR

24 volt dc gear motor means the dc motor is nominal working under 24v. In reality, the 24v dc geared motor might working in a range like 18v-28v.

For dc gear motor like DM-30RS385, the voltage is customized according the project requirements. In theory, the motor could be 0-24v, however, according

to the recommended motor, we have a recommend voltage. Like this one, it is better for the motor to be 6v-24v.

12v gleichstrommotor

Main voltage :12VDC.24VDC

Typical applications :

Instrument, Electric tools,Coffee machine,

Vending machine, Massager,Game machine,

Electric window opener,Automation equipment

12v high torque dc motor

Gearbox Data :

Number of stages	4	5	6	7	8
Reduction ratio	37	88.114.131	206.265.305 341.392.450	619.711.796 914.1049.1548	1857.2132 2387.2447
Gearbox length [L"mm	22.2	24.8	27.4	30	32.6
Breaking torque(kgf.cm)	10	12	16	20	20
Gearbox efficiency	65%	59%	53%	48%	43%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-385-012-3000	12	≤60	3000	≤150	2200	35	0.8	≥110	≥360
DM-385-012-4500	12	≤70	4500	≤300	3300	55	1.9	≥210	≥960
DM-385-012-6000	12	≤100	6000	≤600	4500	80	3.7	≥280	≥1600
DM-385-024-3000	24	≤28	3000	≤70	2200	35	0.8	≥110	≥160
DM-385-024-4500	24	≤50	4500	≤150	3300	55	1.9	≥180	≥380
DM-385-024-6000	24	≤70	6000	≤300	4500	80	3.7	≥250	≥800

Geared Motor Samples Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-30RS3850126000-265K	12	0.21	23.1	0.697	17.2	12	2.156	48	2.135
DM-30RS3850126000-341K	12	0.218	17.4	0.696	12.9	16	2.15	63	2.094
