28mm Dc Planetary Gear Motor

USD30

5-999 Piece/Pieces
USD12

≥1000 Piece/Pieces

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB, CIF

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 35 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Hongkong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	200000pc per month
Supply Ability:	2000000pc annual
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CIF
Certificate:	CE, Rohs, FCC
HS Code:	8501109990
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Hongkong

Product Description

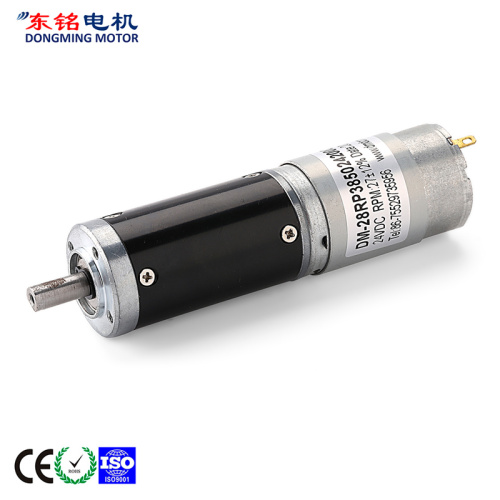

DM-28RP385 DC PLANETARY GEAR MOTOR

For 28mm Dc Planetary Gear Motor, it is a typical type dc planetary gear motor. The planetary dc motors include DM-28RP385 and DM-28RP395 two models.

They are always applied on some small robots. It has a long working life and has a good sound performance. 28mm dc gear motor refers 28mm planetary dc geared motor,

including DM-28RP385 and DM-28RP395 planetary gear dc motor. If we take brushless motor into consideration, DM-28RPBL2838 brushless dc planetary gear motor is also one of them.

dc torque motor

Main voltage : 12VDC.24VDC

Typical applications :

Optical instrument, Surveillance cameras, Automated

energy efficiency, Water saving equipment, IC water

card, Toys and gifts, Office equipment, Household

appliance, automation equipment.

dc variable speed motor

Gearbox Data :

Number of stages	1	2	3	4
Reduction ratio	3.7.5.2	14.19.27	51.71.100.139	189.264.369.515.721
Gearbox length [L"mm	27.5	35.5	43.5	51.5
Breaking torque(kgf.cm)	6	10	20	40
Gearbox efficiency	90%	81%	73%	65%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-385-012-3000	12	≤60	3000	≤150	2200	35	0.8	≥110	≥360
DM-385-012-4500	12	≤70	4500	≤300	3300	55	1.9	≥210	≥960
DM-385-012-6000	12	≤100	6000	≤600	4500	80	3.7	≥280	≥1600
DM-385-024-3000	24	≤28	3000	≤70	2200	35	0.8	≥110	≥160
DM-385-024-4500	24	≤50	4500	≤150	3300	55	1.9	≥180	≥380
DM-385-024-6000	24	≤70	6000	≤300	4500	80	3.7	≥250	≥800

Geared Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-28RP38501215000-51K	12.0	0.68	295.2	2.28	225.3	4.75	10.99	20.08	7.45
DM-28RP38501226000-71K	12.0	1.22	344.1	4.68	263.4	8.18	22.11	34.88	15.96
DM-28RP3850243300-100K	24.0	0.04	33.4	0.16	26.3	5.20	1.40	24.40	0.60
DM-28RP3850244500-71K	24.0	0.05	64.3	0.18	48.3	3.20	1.60	12.90	0.59
