Mini gearbox motor controller with high torque

DM-27RS370 Mini gearbox motor controller with high torque

Typical applications : Instrument, Digital product, Automatic door-lock, Medical equipments, Security monitoring

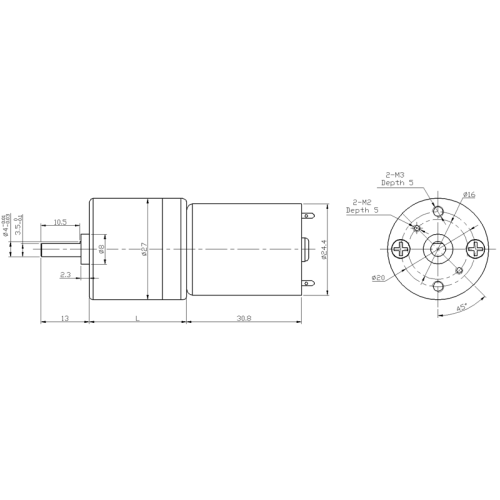

Appearance size:

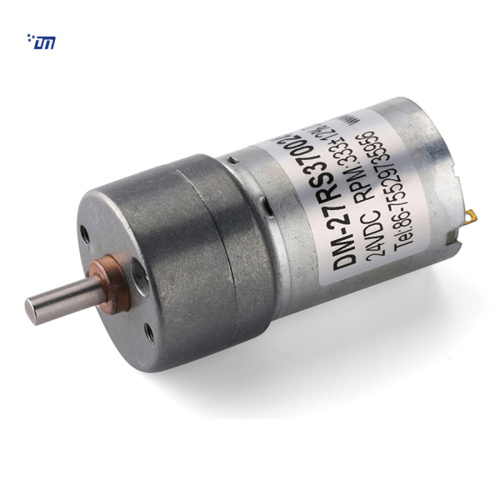

Product picture:

Gearbox Data :

Number of stages	4	5	6	7	8
Reduction ratio	19.27	36.52.76	100.145.210	277.402.583	771.1119.1621
Gearbox length [L"mm	18	20	22	24	26
Breaking torque(kgf.cm)	10	12	14	16	16
Gearbox efficiency	65%	59%	53%	48%	43%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
		Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-370-006-3000	6	≤40	3000	≤160	2500	15	0.4	≥68	≥520
DM-370-006-4500	6	≤56	4500	≤300	3300	25	0.8	≥115	≥860
DM-370-006-6000	6	≤80	6000	≤450	4500	35	1.6	≥165	≥1800
DM-370-012-3000	12	≤20	3000	≤80	2500	15	0.4	≥68	≥250
DM-370-012-4500	12	≤35	4500	≤150	3300	25	0.8	≥115	≥550
DM-370-012-6000	12	≤50	6000	≤220	4500	35	1.6	≥165	≥980

Geared Motor Samples Data :

Motor model	Rated Volt.	No load		Load				Stall
		Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-27RS3700066000-19K	6.0	0.10	302.5	0.46	248.1	0.45	1.14	2.48	2.10
DM-27RS3700124500-27K	12.0	0.03	141.7	0.14	112.9	0.52	0.61	2.57	0.57
DM-27RS3700124800-402K	12.0	0.03	11.0	0.14	8.8	3.56	0.32	18.32	0.56
DM-27RS3700125500-278K	12.0	0.06	19.4	0.27	15.8	5.23	0.85	28.48	1.25
DM-27RS3700126000-210K	12.0	0.04	27.9	0.17	22.4	2.60	0.60	13.25	0.69



Curve Chart :

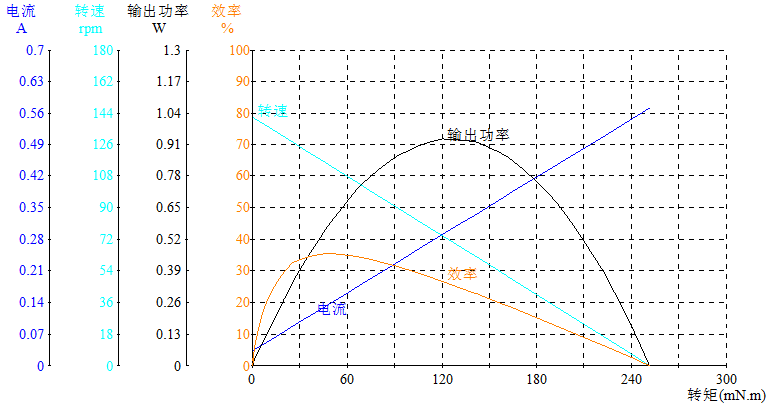

Model: DM-27RS3700124500-27K

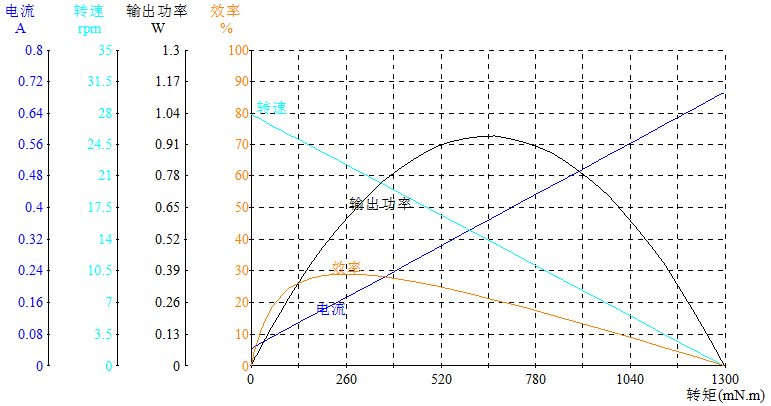

Model: DM-27RS3700126000-210K

Remark:

Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio

Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...

Welcome OEM or ODM projects
