Product Description

DM-27RS310 27mm 12v dc gear motor 200 rpm

27mm dc spur gear motor mainly includes DM-27RS310 12 volt dc motor 100 rpm and DM-27RS370 12v dc electric motor. These 27mm 12v Mini Gear Motor are made of two parts: the micro dc brushed motor and the gearbox ,it can reach different output speed and torque via choosing different dc motor speed and gearbox gear ratio.

DM-27RS310 27mm diameter 12 volt dc gearbox motor is similar DM-25RS310 25mm micro dc gear motor, just DM-27RS310 gearbox is a little bigger and stronger than DM-25RS310. Customer can choose freely if they need stronger gearbox and assy room is allowed.

gearboxes for electric motors

Main voltage : 6VDC.12VDC.24VDC

Typical applications :

Instrument, Electric tools,Coffee machine,

Vending machine, Massager,Game machine,

Electric window opener,Automation equipment

motor gear reduction

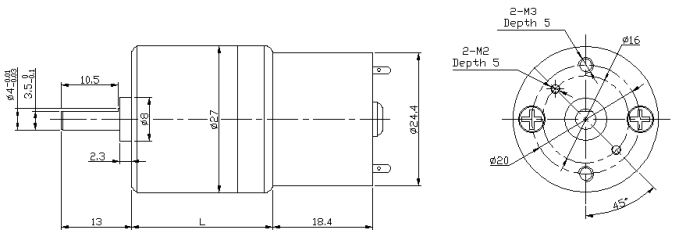

Gearbox Data :

Number of stages	4	5	6	7	8
Reduction ratio	19.27	36.52.76	100.145.210	277.402.583	771.1119.1621
Gearbox length [L"mm	18	20	22	24	26
Breaking torque(kgf.cm)	10	12	14	16	16
Gearbox efficiency	65%	59%	53%	48%	43%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-310-006-3000	6	≤20	3000	≤60	2300	5	0.1	≥20	≥135
DM-310-006-4500	6	≤40	4500	≤120	3200	7	0.2	≥28	≥240
DM-310-006-6000	6	≤35	6000	≤140	4500	10	0.5	≥40	≥600
DM-310-012-3000	12	≤15	3000	≤40	2300	5	0.1	≥20	≥70
DM-310-012-4500	12	≤20	4500	≤55	3200	7	0.2	≥28	≥120
DM-310-012-6000	12	≤25	6000	≤100	4500	10	0.5	≥40	≥290

Geared Motor Samples Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-27RS3100125000-100K	12	0.028	46.2	0.041	37.4	0.36	0.139	1.9	0.176
DM-27RS3100129200-210K	12	0.07	41.6	0.211	30.1	1.54	0.475	5.6	0.581
