25mm spur geared motor low noise high rpm

DM-25RS310 25mm spur geared motor low noise high rpm

Typical applications : Instrument, Digital product, Automatic door-lock, Medical equipments, Security monitoring

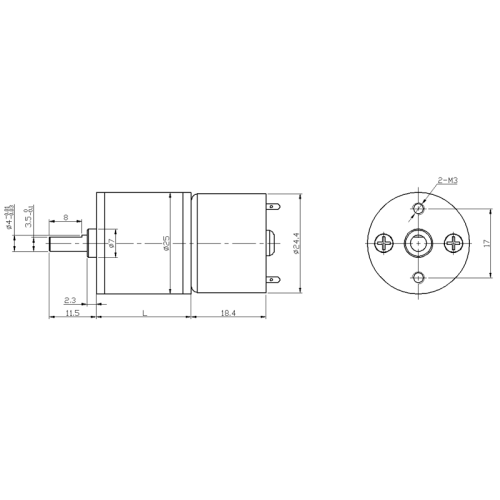

Appearance size:

Product picture:

Gearbox Data :

Number of stages	4	5	6	7	8
Reduction ratio	20.4	35.8.45.50	78.99.110 122.127	217.241.268 298.331	478.531.590 656.729
Gearbox length [L"mm	20.8	23.2	25.6	28	29
Breaking torque(kgf.cm)	8	10	12	14	14
Gearbox efficiency	65%	59%	53%	48%	43%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
		Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-310-006-3000	6	≤20	3000	≤60	2300	5	0.1	≥20	≥135
DM-310-006-4500	6	≤40	4500	≤120	3200	7	0.2	≥28	≥240
DM-310-006-6000	6	≤35	6000	≤140	4500	10	0.5	≥40	≥600
DM-310-012-3000	12	≤15	3000	≤40	2300	5	0.1	≥20	≥70
DM-310-012-4500	12	≤20	4500	≤55	3200	7	0.2	≥28	≥120
DM-310-012-6000	12	≤25	6000	≤100	4500	10	0.5	≥40	≥290

Geared Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
		Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-25RS3100032300-217K	3.0	0.01	9.6	0.05	7.2	0.45	0.03	1.77	0.16
DM-25RS3104.59000-478K	4.5	0.11	18.1	0.33	13.5	2.50	0.35	9.99	0.98
DM-25RS3100065200-20.4K	6.0	0.04	232.9	0.14	173.7	0.11	0.19	0.42	0.44
DM-25RS31007.56500-217K	7.5	0.06	27.6	0.19	20.2	1.29	0.27	4.86	0.56
DM-25RS3100124500-99K	12.0	0.02	40.1	0.05	28.4	0.46	0.13	1.57	0.12
DM-25RS3100126000-122K	12.0	0.03	47.9	0.11	34.6	0.79	0.28	2.82	0.29
DM-25RS3100126000-217K	12.0	0.03	25.6	0.08	18.6	0.88	0.17	3.23	0.21
DM-25RS3100126000-241K	12.0	0.04	21.4	0.09	14.3	0.97	0.14	2.93	0.19
DM-25RS3100126000-478K	12.0	0.05	10.0	0.12	6.7	3.40	0.23	10.20	0.26
DM-25RS3100127000-217K	12.0	0.03	30.6	0.11	23.1	1.15	0.27	4.72	0.35
DM-25RS3100129200-20.4K	12.0	0.04	434.0	0.17	336.6	0.17	0.58	0.75	0.59
DM-25RS3100129200-50K	12.0	0.04	182.6	0.15	142.7	0.40	0.58	1.81	0.56
DM-25RS3100129200-122K	12.0	0.03	71.2	0.14	57.3	0.64	0.38	3.28	0.58
DM-25RS3100248000-331K	24.0	0.03	22.4	0.09	15.5	2.10	0.33	6.81	0.21

Curve Chart :

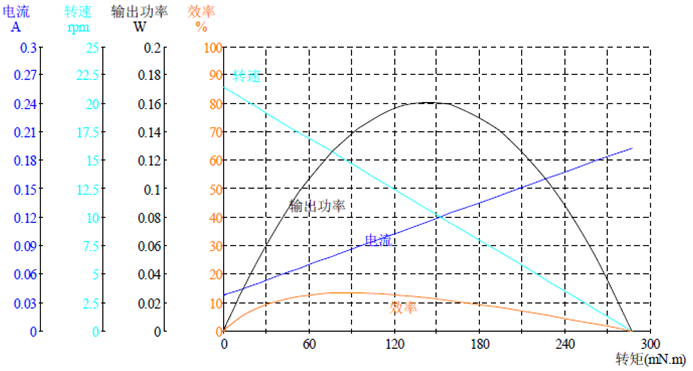

Model: DM-25RS3100126000-241K

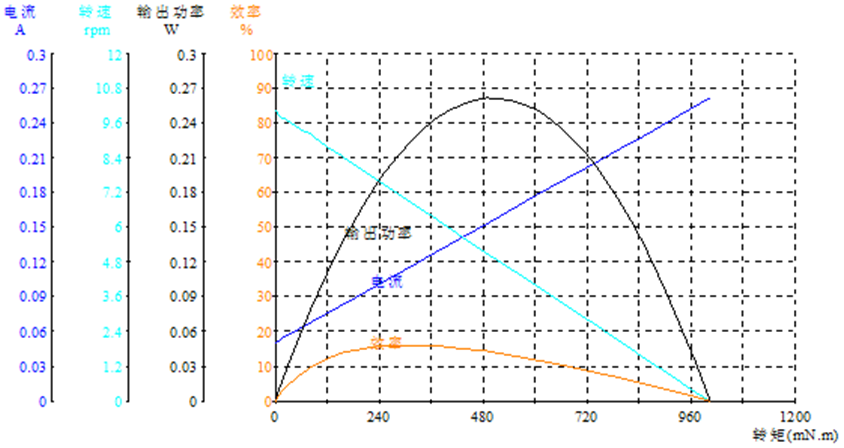

Model: DM-25RS3100126000-478K

Remark:

Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio

Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...

Welcome OEM or ODM projects
