25mm 3 volt dc gear motor
  • 25mm 3 volt dc gear motor
25mm 3 volt dc gear motor

25mm 3 volt dc gear motor

  • USD10
    5-999 Piece/Pieces
  • USD5
    ≥1000 Piece/Pieces
Min. Order:
5 Piece/Pieces
Min. Order:
5 Piece/Pieces
Delivery Time:
35 Days
Transportation:
Ocean, Land, Air
Port:
Hongkong, Shenzhen
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Shenzhen
Productivity: 200000pc per month
Supply Ability: 2000000pc annual
Certificate: CE, Rohs, FCC
HS Code: 8501109990
Transportation: Ocean,Land,Air
Port: Hongkong,Shenzhen
Product Description
Product Description

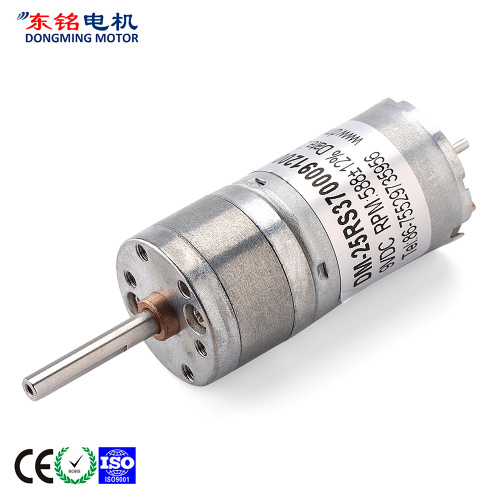

DM-25RS370 25mm 3 volt dc gear motor with encoder

DM-25RSXXX gearbox belongs small spur gearbox , this gearbox can match with different metal brushed dc motors and carbon brushed dc motors as driving motor, to reach different output speed and torque .This 25mm gearbox motor is widely used on smart devices,like coffee machine, vending machine, smart locks, fiire-door opener...

DM-25RS370 6 volt dc gear motor is the most common used model for this gearbox motor. working voltage can be 3V to 24V dc .it can also match with encoder to auto-control  the device function.


12 volt motors with gear reduction


Main voltage : 6VDC,12VDC,24VDC

Typical applications :

Instrument, Electric tools,Coffee machine,

Vending machine, Massager,Game machine,

Electric window opener,Automation equipment

12v gear motors

Gearbox Data :

Number of stages

4

5

6

7

8

Reduction ratio

20.4

35.8,45,50

78,99,110 122,127

217,241,268 298,331

478,531,590 656,729

Gearbox length [L"mm

20.8

23.2

25.6

28

29

Breaking torque(kgf.cm)

8

10

12

14

14

Gearbox efficiency

65%

59%

53%

48%

43%

Driving Motor Data :

Motor model

Rated

Volt.

No load

Load

Stall

Current

Speed

Current

Speed

Torque

Output power

Torque

Current

V

mA

r/min

mA

r/min

gf.cm

W

gf.cm

mA

DM-370-006-3000

6

≤40

3000

≤160

2500

15

0.4

≥68

≥520

DM-370-006-4500

6

≤56

4500

≤300

3300

25

0.8

≥115

≥860

DM-370-006-6000

6

≤80

6000

≤450

4500

35

1.6

≥165

≥1800

DM-370-012-3000

12

≤20

3000

≤80

2500

15

0.4

≥68

≥250

DM-370-012-4500

12

≤35

4500

≤150

3300

25

0.8

≥115

≥550

DM-370-012-6000

12

≤50

6000

≤220

4500

35

1.6

≥165

≥980


Geared Motor Data :

Motor model

Rated

Volt.

No load

Load

Stall

Current

Speed

Current

Speed

Torque

Output power

Torque

Current

V

A

r/min

A

r/min

kgf.cm

W

kgf.cm

A

DM-25RS3700056300-99K

5.0

0.08

63.8

0.48

54.7

1.69

0.95

11.87

2.88

DM-25RS3700059000-45K

5.0

0.39

212.9

1.49

166.2

0.99

1.68

4.50

5.39

DM-25RS3700064000-478K

6.0

0.06

7.7

0.24

5.9

4.94

0.30

20.50

0.81

DM-25RS3700065500-99K

6.0

0.13

53.7

0.48

41.0

2.13

0.90

9.03

1.61

DM-25RS3700066000-78K

6.0

0.09

72.9

0.41

58.2

1.21

0.72

6.00

1.69

DM-25RS3700066600-217K

6.0

0.18

24.9

0.52

18.5

3.92

0.75

15.29

1.51

DM-25RS3700068400-99K

6.0

0.11

82.6

0.49

68.9

1.25

0.88

7.51

2.44

DM-25RS37001212000-45K

12.0

0.08

256.9

0.42

221.4

0.93

2.11

6.72

2.55

DM-25RS37001212000-78K

12.0

0.10

146.2

0.53

118.8

1.65

2.01

8.79

2.38

DM-25RS37001213000-20.4K

12.0

0.16

599.1

0.69

495.7

0.54

2.73

3.11

3.22

DM-25RS3700123000-298K

12.0

0.04

9.9

0.09

6.9

2.45

0.17

7.90

0.22

DM-25RS3700125500-55K

12.0

0.05

96.9

0.21

79.7

0.99

0.81

5.58

0.96

DM-25RS3700126000-122K

12.0

0.06

49.4

0.22

38.8

1.77

0.70

8.20

0.80

DM-25RS3700128000-99K

12.0

0.11

79.8

0.48

64.6

2.54

1.69

13.39

2.06

DM-25RS3700128500-35.8K

12.0

0.04

228.1

0.25

201.4

0.61

1.25

5.17

1.81

DM-25RS3700128500-99K

12.0

0.10

85.0

0.51

69.2

2.85

2.02

15.32

2.33

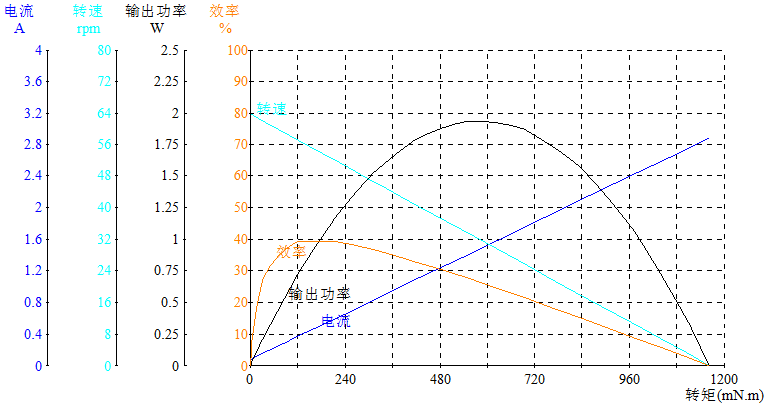

Curve Chart :

Model: DM-25RS3700056300-99K

DM-25RS370-2

Model: DM-25RS3700123000-298K

 DM-25RS370-3



Remark:



Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio



Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...



Welcome OEM or ODM projects
