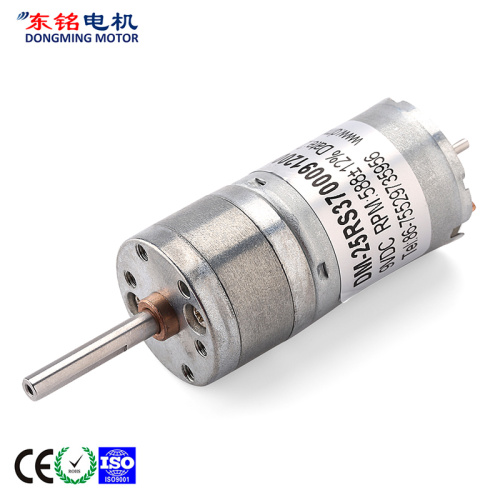

DM-25RS370  DC SPUR GEAR MOTOR

12v dc motor with gear reduction, it means a driving motor reduce it speed through the gearbox. Like we need a 12v dc geared motor 60 rpm,

and the driving motor speed is about 6000rpm, then we need a gear ratio 1/100.  12v dc motor with gear reduction is also called 12v dc gear motor.

25mm Dc Spur Gear Motor is a kind of dc spur gear motor, it could be 6v, 12v or 24v. However, 12v is most widely used.

For this kind of mini dc gear motor, it is used on bicycle locks, medical devices, hose pum and so on.


5 rpm motor


Main voltage : 6VDC,12VDC,24VDC

Typical applications :

Instrument, Electric tools,Coffee machine,

Vending machine, Massager,Game machine,

Electric window opener,Automation equipment


5rpm gear motor




Gearbox Data :

Number of stages

4

5

6

7

8

Reduction ratio

20.4

35.8,45,50

78,99,110 122,127

217,241,268 298,331

478,531,590 656,729

Gearbox length [L"mm

20.8

23.2

25.6

28

29

Breaking torque(kgf.cm)

8

10

12

14

14

Gearbox efficiency

65%

59%

53%

48%

43%

Driving Motor Data :

Motor model

Rated

Volt.

No load

Load

Stall

Current

Speed

Current

Speed

Torque

Output power

Torque

Current

V

mA

r/min

mA

r/min

gf.cm

W

gf.cm

mA

DM-370-006-3000

6

≤40

3000

≤160

2500

15

0.4

≥68

≥520

DM-370-006-4500

6

≤56

4500

≤300

3300

25

0.8

≥115

≥860

DM-370-006-6000

6

≤80

6000

≤450

4500

35

1.6

≥165

≥1800

DM-370-012-3000

12

≤20

3000

≤80

2500

15

0.4

≥68

≥250

DM-370-012-4500

12

≤35

4500

≤150

3300

25

0.8

≥115

≥550

DM-370-012-6000

12

≤50

6000

≤220

4500

35

1.6

≥165

≥980

Geared Motor Data :

Motor model

Rated

Volt.

No load

Load

Stall

Current

Speed

Current

Speed

Torque

Output power

Torque

Current

V

A

r/min

A

r/min

kgf.cm

W

kgf.cm

A

DM-25RS3700056300-99K

5.0

0.08

63.8

0.48

54.7

1.69

0.95

11.87

2.88

DM-25RS3700059000-45K

5.0

0.39

212.9

1.49

166.2

0.99

1.68

4.50

5.39

DM-25RS3700064000-478K

6.0

0.06

7.7

0.24

5.9

4.94

0.30

20.50

0.81

DM-25RS3700065500-99K

6.0

0.13

53.7

0.48

41.0

2.13

0.90

9.03

1.61

DM-25RS3700066000-78K

6.0

0.09

72.9

0.41

58.2

1.21

0.72

6.00

1.69

DM-25RS3700066600-217K

6.0

0.18

24.9

0.52

18.5

3.92

0.75

15.29

1.51

DM-25RS3700068400-99K

6.0

0.11

82.6

0.49

68.9

1.25

0.88

7.51

2.44

DM-25RS37001212000-45K

12.0

0.08

256.9

0.42

221.4

0.93

2.11

6.72

2.55

DM-25RS37001212000-78K

12.0

0.10

146.2

0.53

118.8

1.65

2.01

8.79

2.38

DM-25RS37001213000-20.4K

12.0

0.16

599.1

0.69

495.7

0.54

2.73

3.11

3.22

DM-25RS3700123000-298K

12.0

0.04

9.9

0.09

6.9

2.45

0.17

7.90

0.22

DM-25RS3700125500-55K

12.0

0.05

96.9

0.21

79.7

0.99

0.81

5.58

0.96

DM-25RS3700126000-122K

12.0

0.06

49.4

0.22

38.8

1.77

0.70

8.20

0.80

DM-25RS3700128000-99K

12.0

0.11

79.8

0.48

64.6

2.54

1.69

13.39

2.06

DM-25RS3700128500-35.8K

12.0

0.04

228.1

0.25

201.4

0.61

1.25

5.17

1.81

DM-25RS3700128500-99K

12.0

0.10

85.0

0.51

69.2

2.85

2.02

15.32

2.33

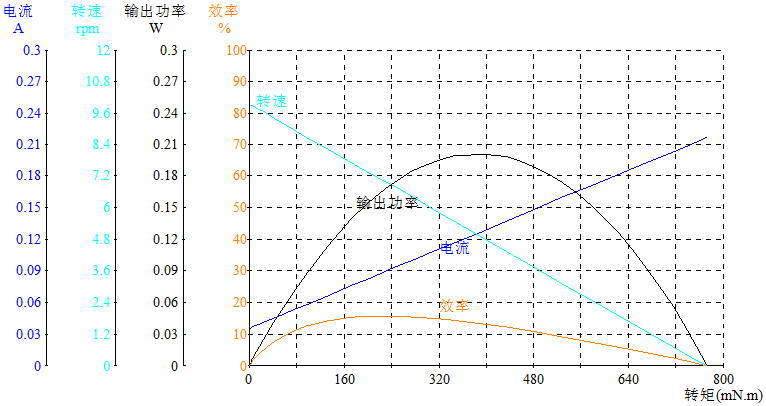

Curve Chart :

Model: DM-25RS3700056300-99K

DM-25RS370-2

Model: DM-25RS3700123000-298K

DM-25RS370-3

Remark:

Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio



Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...



Welcome OEM or ODM projects
