25mm Dc Gear Motor
-
USD105-999 Piece/Pieces
-
USD4≥1000 Piece/Pieces
- Payment Type:
- L/C, T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- FOB
- Min. Order:
- 5 Piece/Pieces
- Min. Order:
- 5 Piece/Pieces
- Delivery Time:
- 35 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Hongkong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Productivity: | 200000pc per month |
| Supply Ability: | 2000000pc annual |
| Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | FOB |
| Certificate: | CE, Rohs, FCC |
| HS Code: | 8501109990 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Hongkong |

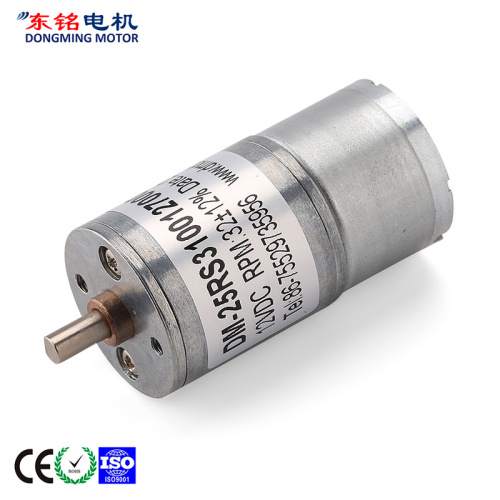

DM-25RS310 DC SPUR GEAR MOTOR
12v Dc Gear Motor Specifications: 12v 180rpm DC Gear motor and 12v DC Geared Motor with 25mm diameter.
With this specification request, DM-25RS310 would be a good choice. If customer request a 12v 180rpm Dc Gear motor,
Firstly, we need know if 180rpm is load speed or free load speed, then we need also know the rated torque at the load speed.
After all above settled, it is very important to know if the customer design has a space limit.
Main voltage : 6VDC.12VDC.24VDC
Typical applications :
Instrument, Electric tools,Coffee machine, Vending machine, Massager
Game machine, Electric window opener,Automation equipment
Gearbox Data :
|
Number of stages |
4 |
5 |
6 |
7 |
8 |
|
Reduction ratio |
20.4 |
35.8.45.50 |
78.99.110 122.127 |
217.241.268 298.331 |
478.531.590 656.729 |
|
Gearbox length [L"mm |
20.8 |
23.2 |
25.6 |
28 |
29 |
|
Breaking torque(kgf.cm) |
8 |
10 |
12 |
14 |
14 |
|
Gearbox efficiency |
65% |
59% |
53% |
48% |
43% |
Driving Motor Data :
|
Motor model |
Rated Volt. |
No load |
Load |
Stall |
|||||
|
Current |
Speed |
Current |
Speed |
Torque |
Output power |
Torque |
Current |
||
|
V |
mA |
r/min |
mA |
r/min |
gf.cm |
W |
gf.cm |
mA |
|
|
DM-310-006-3000 |
6 |
≤20 |
3000 |
≤60 |
2300 |
5 |
0.1 |
≥20 |
≥135 |
|
DM-310-006-4500 |
6 |
≤40 |
4500 |
≤120 |
3200 |
7 |
0.2 |
≥28 |
≥240 |
|
DM-310-006-6000 |
6 |
≤35 |
6000 |
≤140 |
4500 |
10 |
0.5 |
≥40 |
≥600 |
|
DM-310-012-3000 |
12 |
≤15 |
3000 |
≤40 |
2300 |
5 |
0.1 |
≥20 |
≥70 |
|
DM-310-012-4500 |
12 |
≤20 |
4500 |
≤55 |
3200 |
7 |
0.2 |
≥28 |
≥120 |
|
DM-310-012-6000 |
12 |
≤25 |
6000 |
≤100 |
4500 |
10 |
0.5 |
≥40 |
≥290 |
Geared Motor Data :
|
Motor model |
Rated Volt. |
No load |
Load |
Stall |
|||||
|
Current |
Speed |
Current |
Speed |
Torque |
Output power |
Torque |
Current |
||
|
V |
A |
r/min |
A |
r/min |
kgf.cm |
W |
kgf.cm |
A |
|
|
DM-25RS3100032300-217K |
3.0 |
0.01 |
9.6 |
0.05 |
7.2 |
0.45 |
0.03 |
1.77 |
0.16 |
|
DM-25RS3104.59000-478K |
4.5 |
0.11 |
18.1 |
0.33 |
13.5 |
2.50 |
0.35 |
9.99 |
0.98 |
|
DM-25RS3100065200-20.4K |
6.0 |
0.04 |
232.9 |
0.14 |
173.7 |
0.11 |
0.19 |
0.42 |
0.44 |
|
DM-25RS31007.56500-217K |
7.5 |
0.06 |
27.6 |
0.19 |
20.2 |
1.29 |
0.27 |
4.86 |
0.56 |
|
DM-25RS3100124500-99K |
12.0 |
0.02 |
40.1 |
0.05 |
28.4 |
0.46 |
0.13 |
1.57 |
0.12 |
|
DM-25RS3100126000-122K |
12.0 |
0.03 |
47.9 |
0.11 |
34.6 |
0.79 |
0.28 |
2.82 |
0.29 |
|
DM-25RS3100126000-217K |
12.0 |
0.03 |
25.6 |
0.08 |
18.6 |
0.88 |
0.17 |
3.23 |
0.21 |
|
DM-25RS3100126000-241K |
12.0 |
0.04 |
21.4 |
0.09 |
14.3 |
0.97 |
0.14 |
2.93 |
0.19 |
|
DM-25RS3100126000-241K |
12.0 |
0.04 |
21.4 |
0.09 |
14.3 |
0.97 |
0.14 |
2.93 |
0.19 |
|
DM-25RS3100126000-478K |
12.0 |
0.05 |
10.0 |
0.12 |
6.7 |
3.40 |
0.23 |
10.20 |
0.26 |
|
DM-25RS3100127000-217K |
12.0 |
0.03 |
30.6 |
0.11 |
23.1 |
1.15 |
0.27 |
4.72 |
0.35 |
|
DM-25RS3100129200-122K |
12.0 |
0.03 |
71.2 |
0.14 |
57.3 |
0.64 |
0.38 |
3.28 |
0.58 |
|
DM-25RS3100129200-20.4K |
12.0 |
0.04 |
434.0 |
0.17 |
336.6 |
0.17 |
0.58 |
0.75 |
0.59 |
|
DM-25RS3100129200-50K |
12.0 |
0.04 |
182.6 |
0.15 |
142.7 |
0.40 |
0.58 |
1.81 |
0.56 |
|
DM-25RS3100248000-331K |
24.0 |
0.03 |
22.4 |
0.09 |
15.5 |
2.10 |
0.33 |
6.81 |
0.21 |
Curve Chart :
Model: DM-25RS3100126000-241K
Model: DM-25RS3100126000-478K
Remark:
Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;
Gear Motor Speed=Driving motor speed/Reduction ratio
Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...
Welcome OEM or ODM projects
