dc spur gearbox motor for smart lock

DM-20RS130 dc spur gearbox motor for smart lock

Typical applications : Instrument, Digital product, Automatic door-lock, Medical equipments, Security monitoring

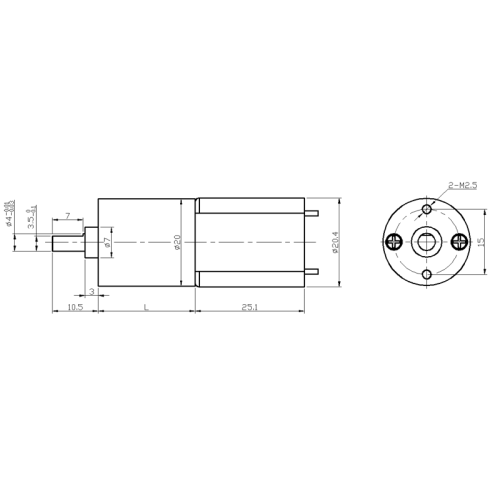

Appearance size:

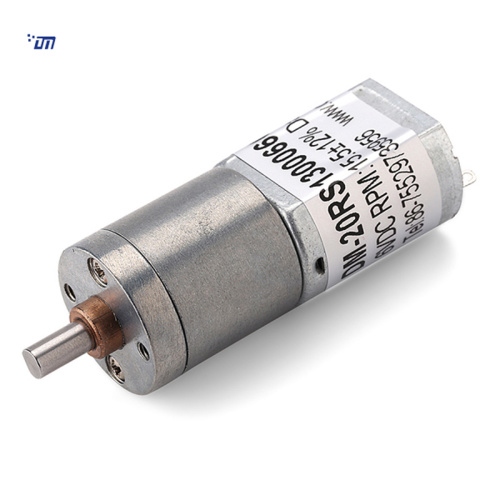

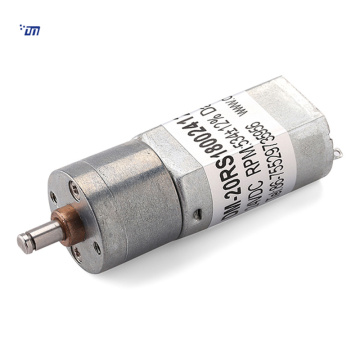

Product picture:

Gearbox Data :

Number of stages	4	5	6	7	8
Reduction ratio	18.23	35.44.55	67.84 105.132	161.202 252.316	386.484 606.758
Gearbox length [L"mm	16.2	17.7	19.2	20.7	22.2
Breaking torque(kgf.cm)	2	4	6	8	8
Gearbox efficiency	65%	59%	53%	48%	43%

 Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
		Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-130-006-6000	6	≤90	6000	≤280	5400	10	0.6	≥40	≥500
DM-130-006-9000	6	≤120	9000	≤430	7000	15	1.1	≥60	≥1200
DM-130-012-6000	12	≤45	6000	≤140	5400	10	0.6	≥40	≥250
DM-130-012-9000	12	≤60	9000	≤200	7000	15	1.1	≥60	≥600

Geared Motor Samples Data :

Motor model	Rated Volt.	No load		Load				Stall
		Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-20RS1300248800-484K	24	0.04	17.3	0.10	11.8	2.5	0.31	7.9	0.23
DM-20RS1300066000-386K	6	0.07	14.1	0.23	10.5	2.4	0.26	8.8	0.67
DM-20RS1300129000-31K	12	0.11	263.6	0.28	184.8	0.38	0.72	1.2	0.70
DM-20RS1300129000-46K	12	0.09	185.1	0.26	134.3	0.57	0.79	2.1	0.70
DM-20RS1300129000-71K	12	0.05	128.3	0.21	99.8	0.76	0.78	3.4	0.77

Curve Chart :

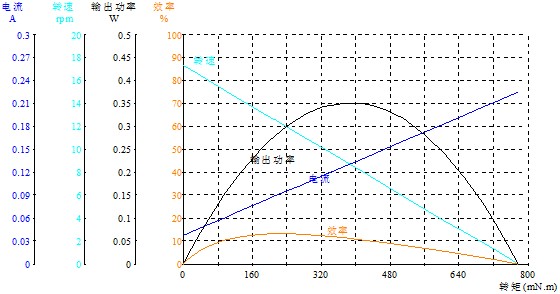

Model: DM-20RS1300248800-484K

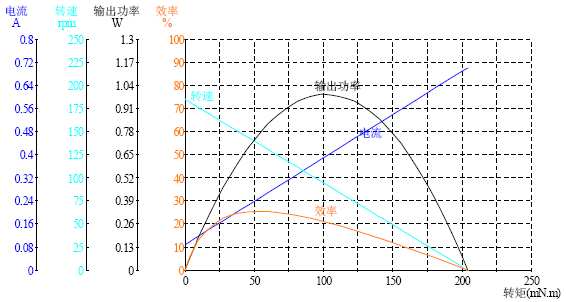

Model: DM-20RS1300129000-46K

Remark:

Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio

Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...

Welcome OEM or ODM projects
