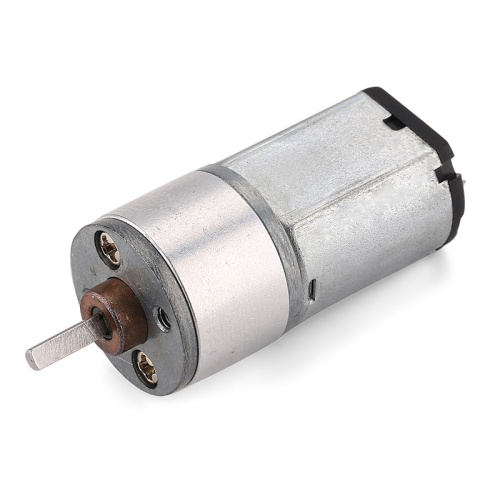

DM-16RS030 16mm small 12v dc electric geared motor

DM-16RS030 16mm small 12V dc electric geared motor is made of two main partion: 16mm gearbox and DM-030# 16mm metal brushed dc motor. Via control the different dc motor speed and different gearbox gear ratio, it can reach wide range output speed and torque to meet customer different application;

DM-16RS030 belongs to dc spur gearbox motor,via matching with different dc driving motor, it has two main version. DM-16RS050 electric gear motor 12v is the upgrated power version than DM-16RS030 dc gear motor 3v. it can be freely choosed according to different torque requests on customer devices.

dc direct gear motor


Main Voltage: 3VDC, 6VDC, 12VDC

Typical Application:

Household applicance, audio-visual products,

office facility, hairdressing equipment, medical equipment,

toys, electric tool, automatic sprayer, intelligent system,

automatic control and other industrial drives.

dc direct gear motor


Gearbox Data:

Number of stages

3

4

5

6

7

Reduction ratio

10,14

23,28,32,40

46,56,65

79,91,112

130,159,183 224,257,315

365,448,515 631,725,889

Gearbox length [L"mm

11

12.5

14

15.5

17

Breaking torque(kgf.cm)

1

2

3

4

4

Gearbox efficiency

73%

65%

59%

53%

48%

Driving Motor Data:

Motor model

Rated

Volt.

No load

Load

Stall

Current

Speed

Current

Speed

Torque

Output power

Torque

Current

V

mA

r/min

mA

r/min

gf.cm

W

gf.cm

mA

DM-030-003-8000

3

≤55

8000

≤250

6000

4

0.2

≥16

≥500

DM-030-003-10500

3

≤80

10500

≤300

7200

5

0.4

≥20

≥750

DM-030-006-8000

6

≤30

8000

≤120

5000

4

0.2

≥16

≥150

DM-030-006-10500

6

≤40

10500

≤160

7000

5

0.4

≥20

≥400

Gear Motor Data:

Motor model

Rated

Volt.

No load

Load

Stall

Current

Speed

Current

Speed

Torque

Output power

Torque

Current

V

A

r/min

A

r/min

kgf.cm

W

kgf.cm

A

DM-16RS0300035200-889K

3.0

0.03

6.2

0.08

4.5

0.69

0.03

2.51

0.22

DM-16RS0300036500-315K

3.0

0.05

21.5

0.12

15.3

0.47

0.07

1.63

0.31

DM-16RS0300038000-112K

3.0

0.06

68.7

0.17

52.1

0.18

0.10

0.87

0.53

DM-16RS0304.514000-112K

4.5

0.09

122.6

0.31

93.5

0.30

0.29

1.27

1.00

DM-16RS03000517000-91K

5.0

0.13

184.0

0.44

141.2

0.37

0.54

1.60

1.45

DM-16RS03000611500-515K

6.0

0.05

23.5

0.16

17.2

0.91

0.16

3.34

0.46

DM-16RS03000611900-224K

6.0

0.04

53.4

0.14

43.0

0.43

0.19

2.22

0.55

DM-16RS03001217000-130K

12.0

0.04

129.5

0.14

100.0

0.50

0.52

2.22

0.49

DM-16RS03001217000-183K

12.0

0.06

89.0

0.17

64.4

0.83

0.55

3.02

0.46

DM-16RS03001218500-315K

12.0

0.07

58.7

0.21

44.3

1.56

0.71

6.35

0.65

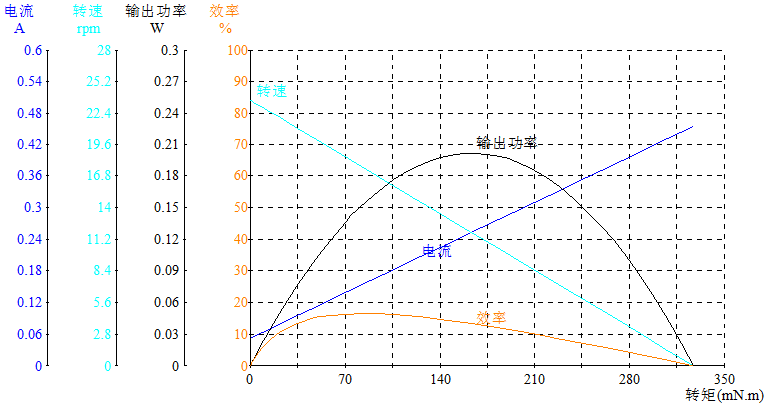

Curve Chart:


Model:DM-16RS0300036500-315K

DS-16RS030


Model:DM-16RS03000611500-515K

DS-16RS030


Remark:


Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio



Motor detailed config can be customized according to customer's requests,

like voltage,speed,as well as shaft length and shape...




Welcome OEM or ODM projects
