16mm 6v dc gear motor

USD10

5-999 Piece/Pieces
USD5

≥1000 Piece/Pieces

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB, CIF

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 35 Days

Transportation:: Ocean, Land, Air

Port:: Hongkong, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	200000pc per month
Supply Ability:	2000000pc annual
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CIF
Certificate:	CE, Rohs, FCC
HS Code:	8501109990
Transportation:	Ocean,Land,Air
Port:	Hongkong,Shenzhen

Product Description

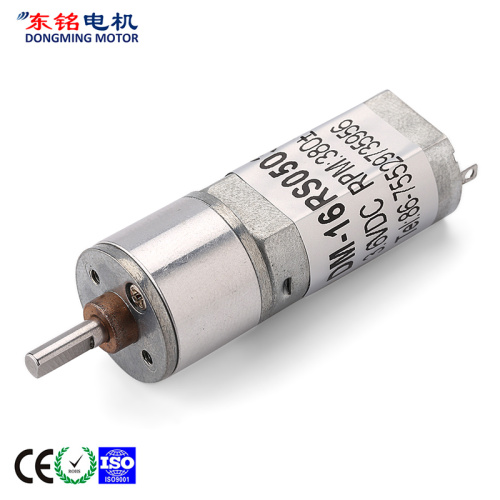

DM-16RS050 DC SPUR GEAR MOTOR

16mm dc spur gear motor is including DM-16RS030 12v Dc Gearmotors, DM-16RS050 Dc minature Gearbox and DM-16RS130 6v Mini Gear Motor 30 Rpm.

If taking planetary gearbox into consideration, these three kinds of dc motor can work together with an 16mm planetary gearbox. 16mm dc gear motor includes

16mm dc spur gear motor and 16mm planetary gear motor. They are using same motors, but different gearbox type.

Planetary gearbox are more efficient than spur gearbox at similar gear ratios. However, 16mm dc spur gear motor are used more in daily appliciations.

16mm dc motor

Main voltage : 3VDC.6VDC.12VDC.24VDC

Typical applications :

Household appliances, Audio-visual products, Office facilities, hairdressing equipment, Medical equipment,

Toys, Electric tool, Automatic sprayer, Intelligent system, Automatic control and other industrial drives.

24 volt 12 rpm motor

Gearbox Data :

Number of stages	3	4	5	6	7
Reduction ratio	10.14	23.28.32.40	46.56.65 79.91.112	130.159.183 224.257.315	365.448.515 631.725.889
Gearbox length [L"mm	11	12.5	14	15.5	17
Breaking torque(kgf.cm)	1	2	3	4	4
Gearbox efficiency	73%	65%	59%	53%	48%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-050-006-9000	6	≤60	9000	≤260	7500	8	0.6	≥30	≥550
DM-050-006-12000	6	≤70	12000	≤300	9300	10	1.0	≥40	≥1000
DM-050-012-9000	12	≤30	9000	≤130	7500	8	0.6	≥30	≥300
DM-050-012-12000	12	≤50	12000	≤200	10000	10	1.0	≥40	≥600

Geared Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-16RS05000611400-365K	6.00	0.07	32.2	0.27	25.5	1.20	0.32	5.82	1.04
DM-16RS0500068000-365K	6.00	0.07	23.4	0.26	17.8	1.90	0.35	7.88	0.86
DM-16RS0500088300-46K	8.00	0.02	183.1	0.11	144.6	0.16	0.24	0.76	0.42
DM-16RS05001210500-515K	12.00	0.03	20.0	0.11	15.5	1.30	0.20	5.70	0.35
DM-16RS05001215000-40K	12.00	0.03	376.3	0.16	303.7	0.23	0.73	1.21	0.70
DM-16RS05001216000-315K	12.00	0.07	56.9	0.29	47.2	2.30	1.14	13.70	1.35
DM-16RS05001216000-889K	12.00	0.06	20.4	0.12	13.8	2.16	0.31	6.70	0.25
DM-16RS0500128000-112K	12.00	0.02	70.6	0.07	52.4	0.35	0.19	1.35	0.21
DM-16RS0500128000-448K	12.00	0.02	18.6	0.06	13.4	0.92	0.13	3.32	0.17
DM-16RS0500128000-515K	12.00	0.02	15.9	0.065	12	0.97	0.12	3.93	0.20
DM-16RS0500128000-631K	12.00	0.03	12.2	0.07	8.0	1.43	0.12	4.20	0.15
