3v planetary micro dc motor
  • 3v planetary micro dc motor
3v planetary micro dc motor

3v planetary micro dc motor

  • USD20
    5-4999 Piece/Pieces
  • USD10
    ≥5000 Piece/Pieces
Payment Type:
L/C, T/T, D/P, Paypal, Money Gram, Western Union
Incoterm:
FOB, CIF
Min. Order:
5 Piece/Pieces
Min. Order:
5 Piece/Pieces
Delivery Time:
45 Days
Transportation:
Ocean, Land, Air
Port:
Shenzhen, Hongkong
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Shenzhen
Productivity: 200000pc per month
Supply Ability: 2000000pc annual
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CIF
Certificate: CE, Rohs, FCC
HS Code: 8501109990
Transportation: Ocean,Land,Air
Port: Shenzhen,Hongkong
Product Description
Product Description

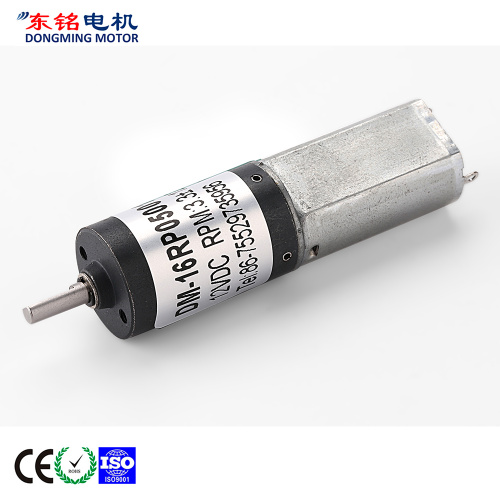

DM-16RP050 DC PLANETARY GEAR MOTOR

16mm dc gear motor contains 16mm dc spur gear motor and 16mm DC Planetary Gear Motor, refering DM-16RP050 Planetary Gear Motors

and DM-16RPR130 Dc Planetary Gearbox.These kind of Planetary Gear Motor 24v are mostly applied on electric locks.

16mm dc planetary gear motor includes DM-16RP030, DM-16RP050 and Dm-16RPR130. For this kind micro gear motor, the

voltage is suggested to be 3v-12v. Sometimes customer might also request 24v motor, it is also acceptable.


mini gearmotor

miniature dc motor


Main voltage : 3VDC.6VDC.12VDC.24VDC

Typical applications :

Optical instrument, Surveillance cameras, Automated

energy efficiency, Water saving equipment, IC water

card, Toys and gifts, Office equipment, Household

appliance, automation equipment.





Gearbox Data :

Number of stages

1

2

3

4

5

Reduction ratio

4.4.75

16.19.22.5

64.76.90.107

256.304.361 428.509

1024.1216.1444     1714.2036.2418

Gearbox length [L"mm

12.2

15.8

19.4

23

26.6

Breaking torque(kgf.cm)

2

3

4

5

5

Gearbox efficiency

90%

81%

73%

65%

59%

Driving Motor Data :

Motor model

Rated

Volt.

No load

Load

Stall

Current

Speed

Current

Speed

Torque

Output power

Torque

Current

V

mA

r/min

mA

r/min

gf.cm

W

gf.cm

mA

DM-050-006-9000

6

≤60

9000

≤260

7500

8

0.6

≥30

≥550

DM-050-006-12000

6

≤70

12000

≤300

9300

10

1.0

≥40

≥1000

DM-050-012-9000

12

≤30

9000

≤130

7500

8

0.6

≥30

≥300

DM-050-012-12000

12

≤50

12000

≤200

10000

10

1.0

≥40

≥600


Geared Motor Data :

Motor model

Rated

Volt.

No load

Load

Stall

Current

Speed

Current

Speed

Torque

Output power

Torque

Current

V

A

r/min

A

r/min

kgf.cm

W

kgf.cm

A

DM-16RP05000313000-22.5K

3.0

0.24

543.5

0.73

393.6

0.20

0.86

0.77

2.01

DM-16RP0500069000-107K

6.0

0.11

76.3

0.29

56.6

0.90

0.52

3.50

0.82

DM-16RP05000611400-361K

6.0

0.12

29.3

0.34

20.8

2.58

0.55

8.93

0.86

DM-16RP05001216000-16K

12.0

0.18

1037.2

0.51

765.8

0.31

2.53

1.23

1.47

DM-16RP05001216000-107K

12.0

0.12

160.5

0.41

127.6

1.44

1.89

7.04

1.53

DM-16RP05001216000-256K

12.0

0.12

65.7

0.45

52.3

3.36

1.80

16.46

1.75

DM-16RP05001216000-304K

12.0

0.12

56.0

0.44

44.6

4.00

1.83

19.70

1.71

DM-16RP05001216000-361K

12.0

0.15

46.6

0.45

34.6

4.68

1.66

18.22

1.32

DM-16RP05001216000-428K

12.0

0.12

40.6

0.40

32.0

4.40

1.45

20.70

1.44

DM-16RP05001216000-509K

12.0

0.11

34.3

0.38

26.3

5.09

1.37

21.76

1.28

DM-16RP0500128000-2418K

12.0

0.05

3.0

0.09

1.9

3.97

0.08

10.74

0.17



Curve Chart :

Model: DM-16RP05000313000-22.5K

DM-16RP050-2



Model: DM-16RP0500069000-107K

DM-16RP050-3



Remark:

Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio

Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...

Welcome OEM or ODM projects
