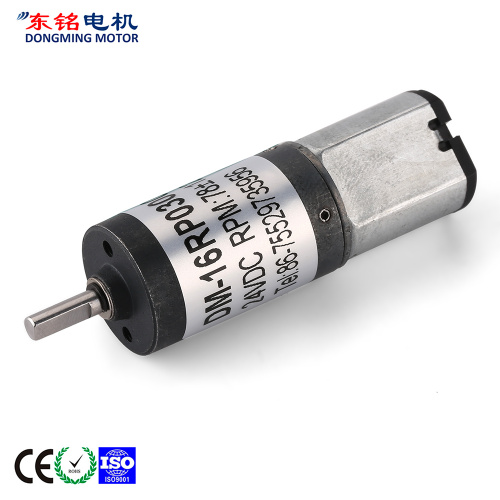

DM-16RP030 DC PLANETARY GEAR MOTOR

16mm Dc Planetary Gear Motor is including DM-16RP030 Planetary Dc Gearmotor, DM-16RP050 Planetary Dc Motor and

DM-16RPR130 Planetary Gear Motor 12v.These kinds of dc planetary gear motor are mostly used on electronic locks,

the contious life span could be as long as 80,0000 times. For planetary gearbox, we usually suggest customer to use carbon brush dc motor.

Carbon brush dc motor has a longer life than electric brush dc motor.


miniature dc motors


Main voltage : 3VDC.6VDC.12VDC

Typical applications :

Optical instrument, Surveillance cameras, Automated

energy efficiency, Water saving equipment, IC water

card, Toys and gifts, Office equipment, Household

appliance, automation equipment.


miniature electric motors


Gearbox Data :

Number of stages

1

2

3

4

5

Reduction ratio

4.4.75

16.19.22.5

64.76 90.107

256.304.361 428.509

1024.1216.1444    1714.2036.2418

Gearbox length [L"mm

12.2

15.8

19.4

23

26.6

Breaking torque(kgf.cm)

2

3

4

5

5

Gearbox efficiency

90%

81%

73%

65%

59%

Driving Motor Data :

Motor model

Rated

Volt.

No load

Load

Stall

Current

Speed

Current

Speed

Torque

Output power

Torque

Current

V

mA

r/min

mA

r/min

gf.cm

W

gf.cm

mA

DM-030-003-8000

3

≤55

8000

≤250

6000

4

0.2

≥16

≥500

DM-030-003-10500

3

≤80

10500

≤300

7200

5

0.4

≥20

≥750

DM-030-006-8000

6

≤30

8000

≤120

5000

4

0.2

≥16

≥150

DM-030-006-10500

6

≤40

10500

≤160

7000

5

0.4

≥20

≥400

Geared Motor Samples Data :

Motor model

Rated

Volt.

No load

Load

Stall

Current

Speed

Current

Speed

Torque

Output power

Torque

Current

V

A

r/min

A

r/min

kgf.cm

W

kgf.cm

A

DM-16RP03001213500-22.5K

12

0.06

503.4

0.129

344.2

0.12

0.436

0.39

0.279

DM-16RP03000610400-509K

6

0.138

14

0.227

8.9

1.1

0.102

3.1

0.387



Curve Chart :

Model: DM-16RP03001213500-22.5K

DM-16RP030-2

Model: DM-16RP03000610400-509K

DM-16RP030-3



Remark:

Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio

Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...

Welcome OEM or ODM projects
