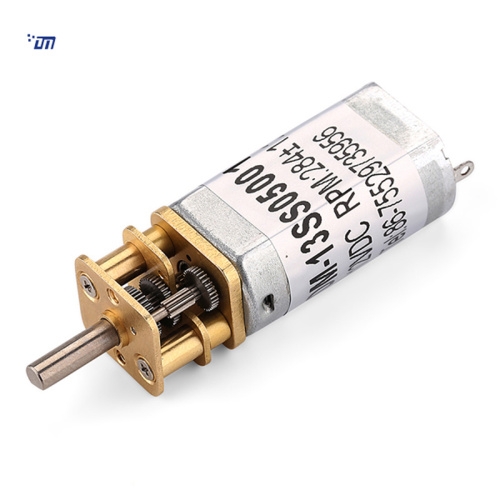

13mm dc gear motor for smart lock

DM-13SS050 13mm mini dc gear motor reducer for smart lock

Typical applications : Instrument, Digital product, Automatic door-lock, Medical equipments, Security monitoring

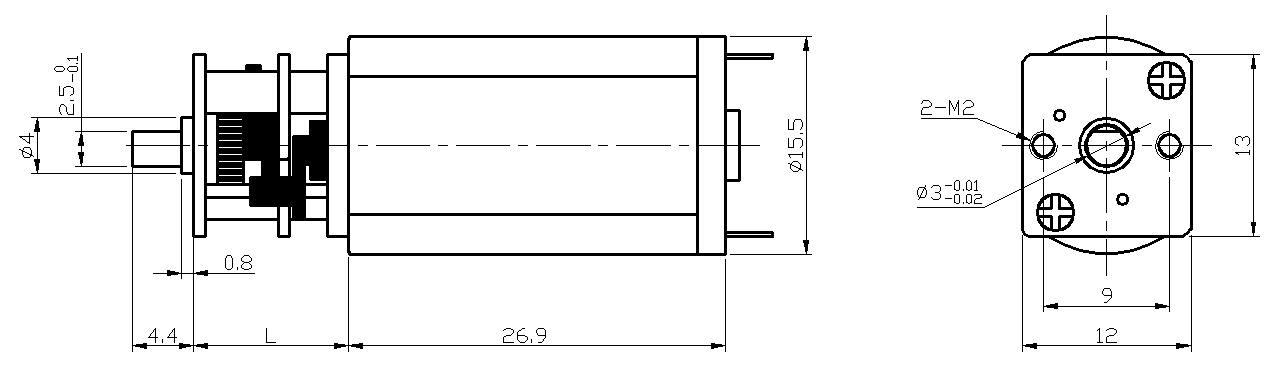

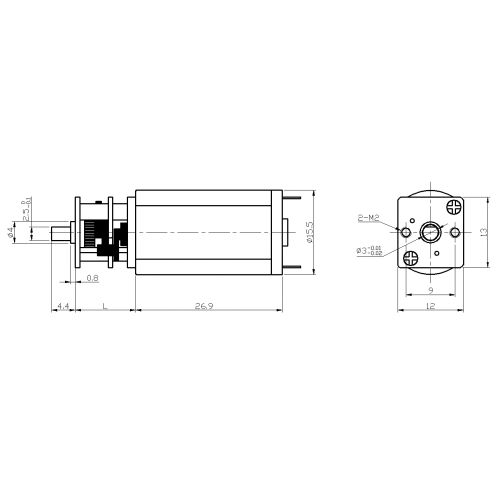

Appearance size:

Product picture:

Gearbox Data :

Number of stages	2	4	5
Reduction ratio	3.7.10	16.17.20.30.35.                50.63.70.86	115.150.210.250.360
Gearbox length [L"mm	11	11	11
Breaking torque(kgf.cm)	0.6	0.9	2
Gearbox efficiency	81%	65%	59%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
		Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-050-006-9000	6	≤60	9000	≤260	7500	8	0.6	≥30	≥550
DM-050-006-12000	6	≤70	12000	≤300	9300	10	1.0	≥40	≥1000
DM-050-012-9000	12	≤30	9000	≤130	7500	8	0.6	≥30	≥300
DM-050-012-12000	12	≤50	12000	≤200	10000	10	1.0	≥40	≥600

Geared Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
		Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-13SS05000513000-35K	5.00	0.11	354.3	0.45	282.5	0.31	0.90	1.53	1.74
DM-13SS05000513000-63K	5.00	0.10	202.0	0.41	160.6	0.56	0.92	2.73	1.61
DM-13SS05000513000-86K	5.00	0.10	144.6	0.38	117.8	0.66	0.80	3.60	1.69
DM-13SS05000628000-63K	6.00	0.44	416.1	1.43	305.1	0.78	2.44	2.91	4.16
DM-13SS05000630000-86K	6.00	0.28	317.8	1.11	257.3	0.93	2.46	4.90	4.61
DM-13SS05001210500-250K	12.00	0.03	42.1	0.11	32.1	1.31	0.43	5.54	0.36
DM-13SS05001215000-35K	12.00	0.03	424.7	0.13	364.0	0.20	0.73	1.37	0.74
DM-13SS05001216000-35K	12.00	0.06	462.2	0.29	370.5	0.40	1.54	2.03	1.22
DM-13SS05001216000-63K	12.00	0.05	250.4	0.28	204.5	0.75	1.57	4.10	1.29
DM-13SS0500129000-360K	12.00	0.02	25.8	0.08	19.5	1.36	0.27	5.57	0.24

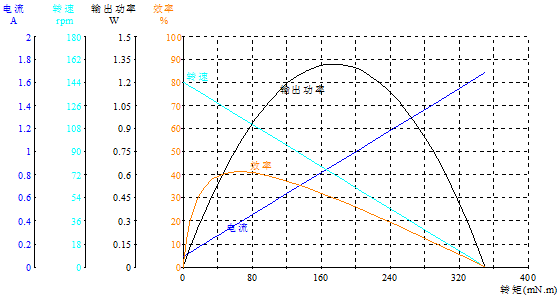

Curve Chart :

Model: DM-13SS05000513000-86K

Model: DM-13SS05001216000-63K

Remark:

Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio

Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...

Welcome OEM or ODM projects
